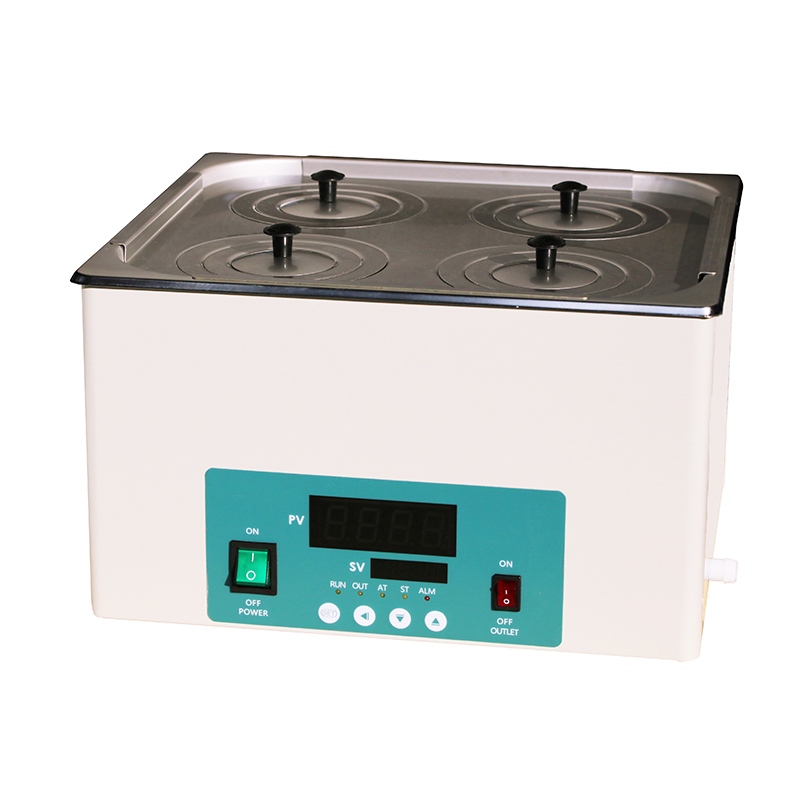

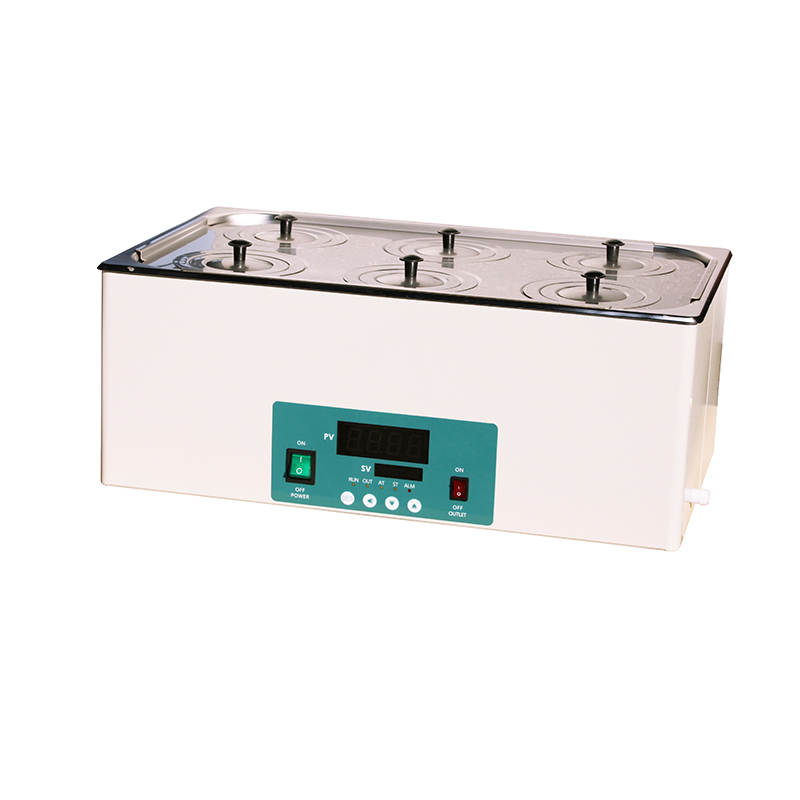

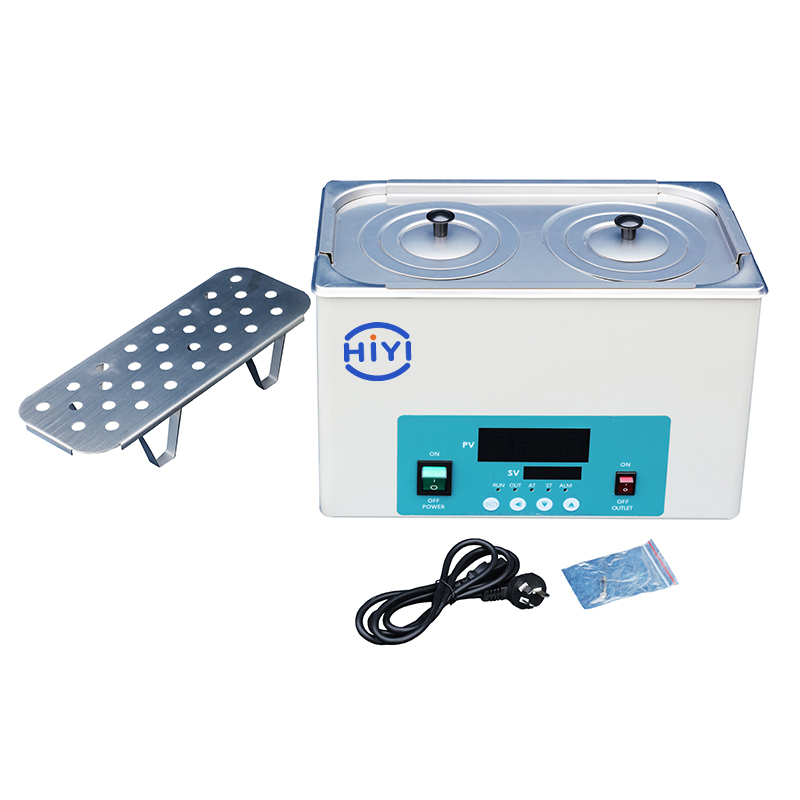

Thermostatic Water Baths (Stretching Inner Chamber)

Categories

Stainless steel stretching inner container and roof cover.
Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no
drain function.
4.Power off when water shortage to ensure the safe operation of the product.

Classification Specifications		1 hole	1 row & 2 holes	2 rows & 4 holes	2 rows & 6 holes
Model	DK-2000-IIIL	√	√	√	√
Heating Mode		Nature water convection heat transfer
Function	Temp. Range	RT+5～100℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±0.5℃
	Temp. Uniformity	±1.0℃
Structure	Inner Chamber	Stainless steel
	Outer Shell	Cold - rolled steel plate, resistance to chemical reagents coating on the surface
	Heater	Stainless steel heating tube
	Power Rating	0.4kW	0.5kW	1.0kW	1.5kW
Controller	Temp. Control Mode	PID (without DK-98-II)
	Temp. Setting Mode	Touch button setting
	Temp. Display Mode	Measuring temperature displays on the three digital tubes upper row, set temperature displays on the l ower row
	Timer	0～9999min（with timing wait function）
	Operation Function	Fixed temperature operation, timing function, auto stop.
	Program Mode	Optional
	Additional Function	Deviation Correction, menu key locked, power failure back-up, power-off memory
	Sensor	CU50
Safety Device		Over temperature alarm
Specification	Inner Chamber size(WLH) (mm)）	150135 150	300135 150	325300 150	500300 150
	Exterior size (WLH)(mm)	170154 210	3182168 210	350318 210	524322 210
	Packing size (WLH)(mm)	240230 280	390240 280	420390 280	600390 280
	Volume	3.4L	6.6L	12.7L	18.7L
	Load per rack	5kg
	Shelf Number	1
	Power Supply （50/60Hz） Current rating	AC220V/ 1.8A	AC220V/ 2.3A	AC220V/ 4.5A	AC220V/ 6.8A
	NW/GW (kg）	3.3/4	4.5/5	6/7kg	7.5/9
Optional Accessories	Shelf, RS485 interface, Recorder, External Communication
