Key Features:
1、Electronic door lock, all steel door cover protection, superior to peer standards.
2、External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.
3、High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.
4、Food-grade integrated silica gel sealing ring, life-long service, more sealable.
5、The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.
6、Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.
7、It has many protective functions, such as door cover, overspeed, over-temperature, over-current, over-pressure, over-heat, etc. The solution is more stable with simultaneous voice and text display.
8、Unique noise reduction system, running more quiet.
9、Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic instructions, never lost, easy to use.
10、The rotational speed, centrifugal force and temperature curves are displayed on the same screen to meet various centrifugal requirements, and the change relationship is clear and visible.
11、Super large storage space, can store up to 99 program groups, 99 usage records and fault records can be traced.
12、Fifteen speed-up and speed-down curves can be selected and free parking time can be set.
13、Two timing modes are optional, start timing and arrival speed timing.
14、Password lock function, users can set password to lock the host or parameters to prevent misoperation.
15、There are many languages in the startup interface, which can be switched between Chinese and English.

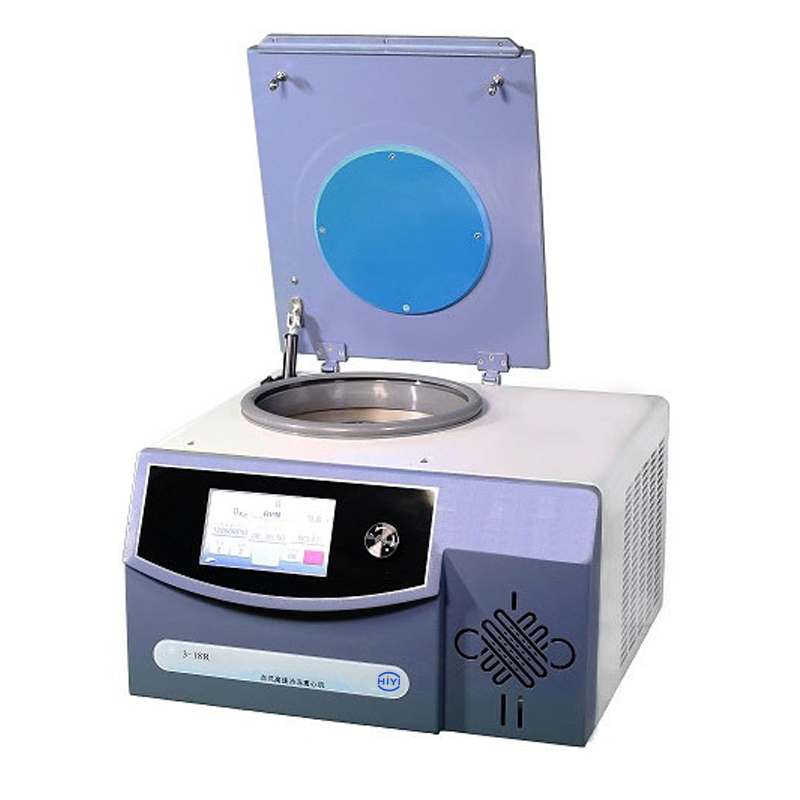

Model | 3-18R Table High Speed Refrigerated Centrifuge | |||
Max RPM (rpm) | 18500rpm | Voltage | AC 220±22V 50Hz 15A | |
Max RCF | 23110×g | Power | 550W | |
Max Capacity | 4×100ml | Noise Level | 62dB(A) | |
Timer | 1s~99h59min59s | Chamber Diameter | Φ320mm | |
Revolutions / min | ± 10r / min | Dimensions | 515×400×330mm | |
Temp Range | -20℃~40℃ | PackgingDimensions | 590×475×370mm | |
Temp Accuracy | ±1.0℃ | Net Weight | 35Kg | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12×1.5/2.0ml | 18500rpm/23110×g | |
2 | 24×1.5/2.0ml | 15000rpm/20625×g | ||
3 | 12×5ml | 16000rpm/17888×g | ||
4 | 12×10ml | 14000rpm/17635×g | ||
5 | 6×50ml | 13000rpm / 17760 × g | ||
6 | 12×15 Sharp type | 12000rpm/15775×g | ||
7 | 4×100ml | 12000rpm/16175×g | ||
Swing-out Rotor | 8 | 8×50ml Sharp type | 4000rpm / 2680 × g | |
9 | 2×2×96Elisa plate | 4000rpm / 2300 × g | ||
10 | 4×50ml+16×15ml | 4000rpm / 2810 × g |
