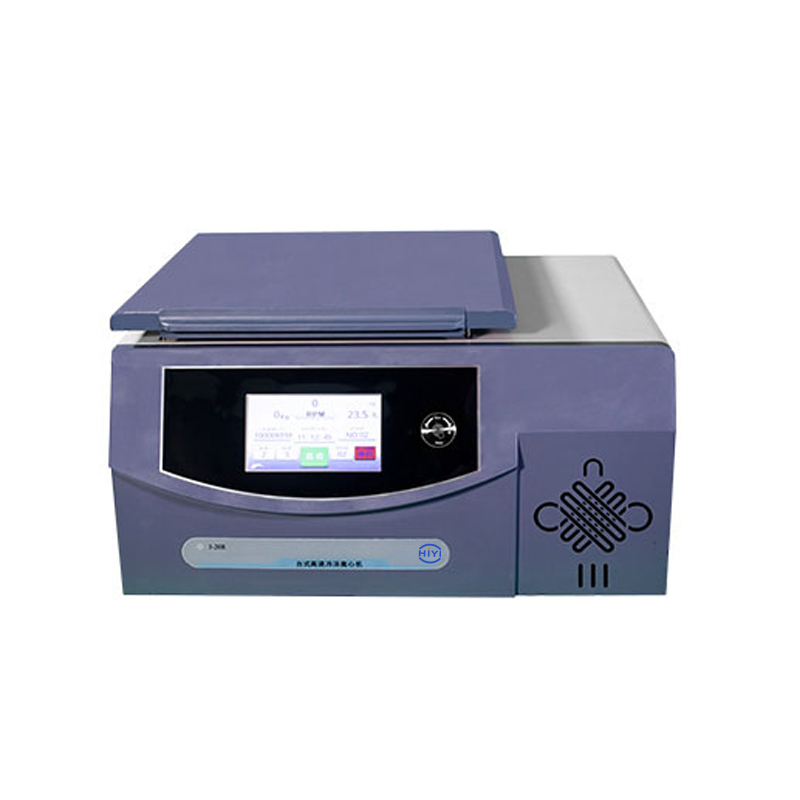

Table High Speed Refrigerated Centrifuge 3-20R

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Key Features:

1、Electronic door lock, all steel door cover protection, superior to peer standards.

2、External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.

3、High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.

4、Food-grade integrated silica gel sealing ring, life-long service, more sealable.

5、The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.

6、Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.

7、It has many protective functions, such as door cover, overspeed, over-temperature, over-current, over-pressure, over-heat, etc. The solution is more stable with simultaneous voice and text display.

8、Unique noise reduction system, running more quiet.

9、Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic   instructions, never lost, easy to use.

10、The rotational speed, centrifugal force and temperature curves are displayed on the same screen to meet various centrifugal requirements, and the change relationship is clear and visible.

11、Super large storage space, can store up to 99 program groups, 99 usage records and fault records can be traced.

12、Fifteen speed-up and speed-down curves can be selected and free parking time can be set.

13、Two timing modes are optional, start timing and arrival speed timing.

14、Password lock function, users can set password to lock the host or parameters to prevent misoperation.

15、There are many languages in the startup interface, which can be switched between Chinese and English.


Model3-20R  Table High Speed Refrigerated Centrifuge
Max RPM  (rpm)20000rpmVoltageAC 220±22V 50Hz 15A
Max RCF30185×gPower1100W
Max Capacity4×250mlNoise Level58 dB(A)
Timer1s~99h59min59sChamber DiameterΦ380mm
Revolutions / min± 10r / minDimensions610 × 660 × 370 mm
Temp Range-20℃~40℃PackgingDimensions687 × 737 × 464 mm
Temp Accuracy±1.0℃Net Weight84Kg
RotorNoCapacityRPM/RCF
 Angle Rotor116×1.5/2.0ml20000rpm / 30185 × g
212×5ml18000rpm/22640×g
336×1.5/2.0ml14000rpm/19280×g
46×50ml14000rpm/20598×g
512×15 Sharp type12000rpm/15775×g
66×100ml12000rpm/17918×g
Swing-out Rotor7Swing out Rotor with Multi-Pipe Frame4200rpm/3100×g
8 4×250ml4000rpm / 3500 × g
92×2×96Elisa plate4000rpm / 2300 × g
