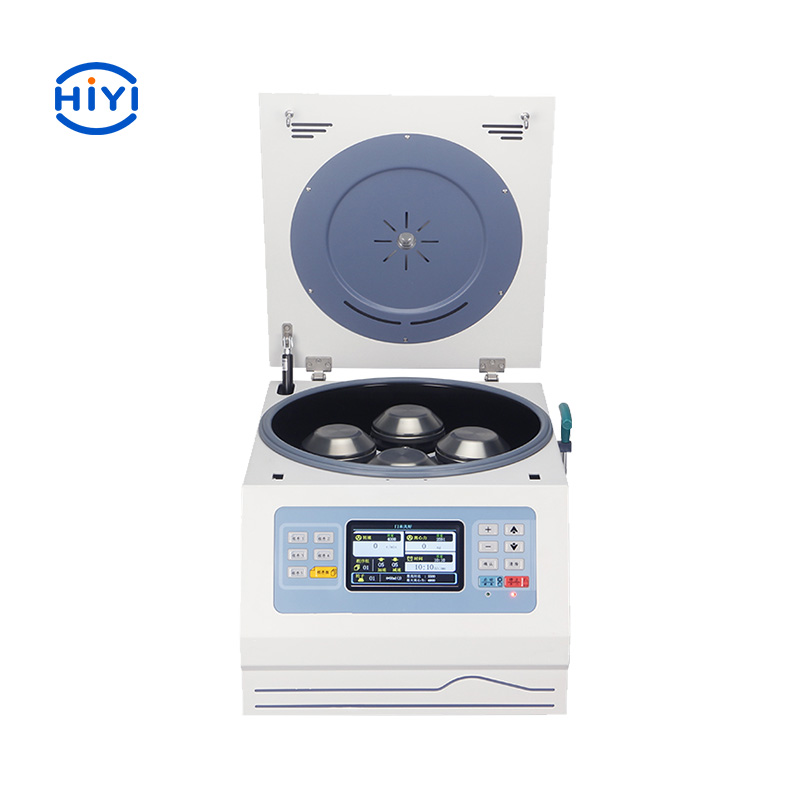

HY45C Low Speed Table Centrifuge
Intelligent control system
◆ The operation interface is equipped with five groups of user-defined preset programs that can be called by one key, and the humanized design function can make the centrifugal operation easier.
◆ Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ Real color high-definition LCD large screen, user-friendly interface, intuitive display, simple and convenient operation. The centrifugal force, speed, time, etc. are displayed on the same screen, and the parameters can be modified at any time during operation without shutdown.
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Linear drive, 10 gear acceleration, 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ The rotor automatic identification system prevents personnel from misoperation and makes centrifugation safer.
◆ The electromagnetic induction door protector with super sensitivity and double electronic door lock catch design are adopted, and the door cover protection, overspeed, over temperature, imbalance and other multiple early warning protection functions are provided to ensure safe operation.
◆ The fuselage is protected by three layers of high-quality all steel structure, and the centrifugal inner chamber is treated by professional environmental protection anti-corrosion process, which is corrosion resistant.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system provides more comfortable experimental environment for experimenters.
Technical Parameter：
| Model | HY45C |
| Max Speed | 5500rpm | Power | 1000W |
| Max RCF | 5952×g | Noise Level | ≤ 62dB(A) |
| Max Capacity | 4×750ml | Size | 580×465×395 (mm) |
| Timer | 1s～99h59min | Net Weight | 61kg |
| Revolutions/min | ±10r/min | Rotor
automatic recognition | Yes |
| Voltage | AC 220±22V 50Hz 10A | / | / |

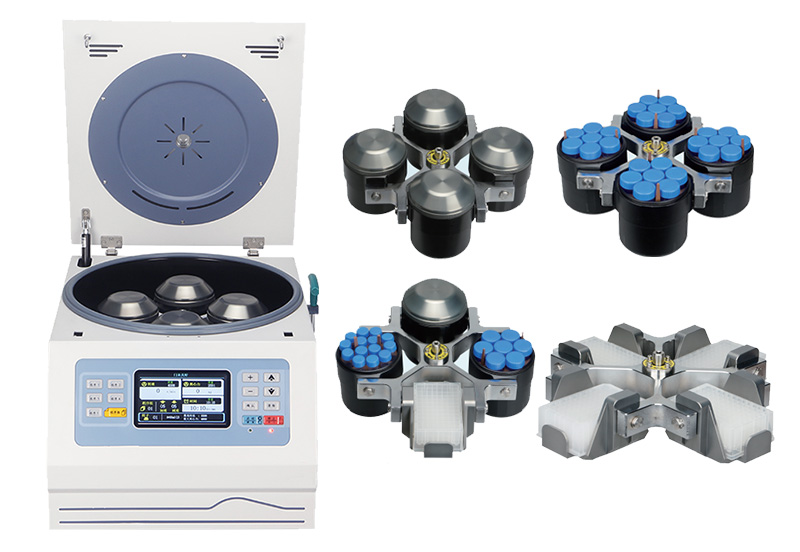

Rotor parameters：
| Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor(W) | 1 | 1 | 40×15ml | 5500rpm | 5952×g |
| Angle rotor(W) | 2 | 2 | 6×50ml | 5500rpm | 3645×g |
| Swing-out rotor | 3 | 3 | 96×2~7ml(blood collection) | 4000rpm | 3184×g |
|
| 4 | 100×2~7ml(blood collection) | 4000rpm | 3184×g |
|
| 5 | 120×2~7ml(blood collection) | 4000rpm | 3184×g |
| Swing-out rotor | 4 | 6 | 4×750ml(round basket) | 4000rpm | 3309×g |
|
| 7 | 4×750ml(round basket)/
(with biosafety lid) | 4000rpm | 3309×g |
|
| 8 | 4×750ml(Square basket) | 4000rpm | 3309×g |
| Swing-out rotor | 5 | 9 | 4×500ml(round basket) | 4000rpm | 3184×g |
|
| 10 | 4×500ml(round basket)
(with biosafetey lid) | 4000rpm | 3184×g |
|
| 11 | 4×500ml(Square basket) | 4000rpm | 3184×g |
|
| 12 | 4×500ml sharp type(Corning tube) | 4000rpm | 3184×g |
| Swing-out rotor | 6 | 13 | 4×250ml(round basket) | 4000rpm | 3040×g |
|
| 14 | 4×250ml(round basket)/
(with biosafety lid) | 4000rpm | 3040×g |
|
| 15 | 4×250ml(Square basket) | 4000rpm | 3040×g |
|
| 16 | 4×250ml sharp type(Corning tube) | 4000rpm | 3040×g |
|
| 17 | 6×250ml(round basket) | 4000rpm | 3040×g |
| Swing-out rotor body | 6 | 18 | Swing-out rotor body 4×250ml |
| Pipe rack | 6 | 19 | 56×5ml(blood collection) | 4000rpm | 3040×g |
|
| 20 | 16×50ml(sharp/round type) | 4000rpm | 3040×g |
|
| 21 | 36×15ml | 4000rpm | 3040×g |
| Swing-out rotor | 7 | 22 | Micro-plate 4×2×96 hole | 4000rpm | 2763×g |
Swing-out rotor
Square basket | 7 | 23 | Square basket include:
Adapter 4×10×15ml(sharp type)
Adapter 4×4×50ml(sharp type) | 4000rpm | 2763×g |
| Swing-out rotor | 8 | 24 | Micro-plate 2×2×96 hole | 4000rpm | 2057×g
|
