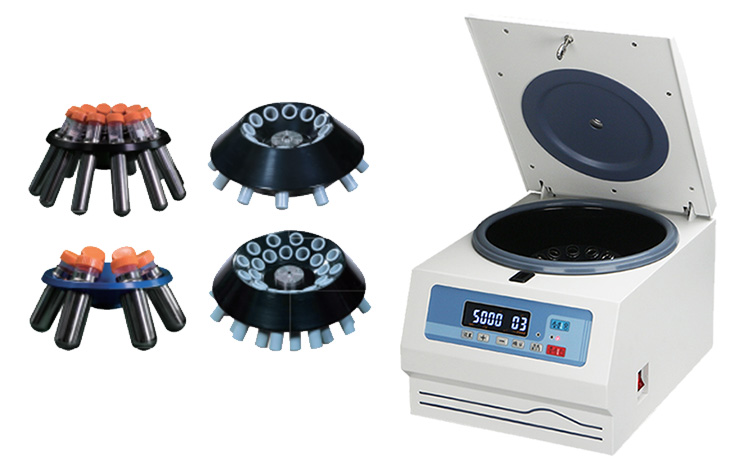

HY2-5C Low Speed Table Centrifuge
◆ The microcomputer control system of the whole machine is driven by a large torque variable frequency motor, with faster lifting speed, more stable and quiet operation.
◆ HD LCD display, synchronous display of setting parameters and operating parameters, easy to operate.
◆ The machine body adopts a three-layer special anti-collision protection structure, and special noise reduction technology is added to precisely protect the safety of the machine and personnel.
◆ The machine body is made of high-quality all steel structure, and the chamber in the centrifugal chamber is made of stainless steel with environmental protection anti-corrosion coating, which is corrosion resistant and acid and alkali resistant.
◆ Food grade silicone integrated seal ring, beautiful and durable, high temperature resistant, anti-aging, anti-corrosion, no deformation and cracking.
◆ Large capacity storage of 40 sets of program groups, convenient for one key exchange, automatic calculation and synchronous display of speed and centrifugal force values.
◆ Linear drive, 10 gear acceleration/deceleration control, which can be set according to different sample attributes to ensure the best separation effect of samples.
◆ It is equipped with over-speed, imbalance, door cover protection, over-current, rotor fault and other protection functions to ensure personal and machine safety.
Technical Parameter：
| Model | HY2-5C |
| Max Speed | 5000rpm | Voltage | AC 220±22V 50/60Hz 10A |
| Max RCF | 3013×g | Power | 150W |
| Max Capacity | 6×50ml | Noise Level | ≤ 62dB(A) |
| Timer | 1s～99min | Size | 420×320×265 (mm) |
| Revolutions/min | ±10r/min | Net Weight | 19kg |
Rotor Parameter：
| Rotor Capacity | Rotor NO.1 | NO. | Rotor Capacity | Max Capacity(r/min) | 最大相对离心力(×g) |
| Angle rotor(W) | 1 | 1 | 12×15ml | 5000rpm | 2934×g |
| 2 | 2 | 6×50ml | 5000rpm | 3013×g |
| Angle rotor | 3 | 3 | 12×20ml | 4000rpm | 2250×g |
| 4 | 24×10ml | 4000rpm | 2200×g
|
