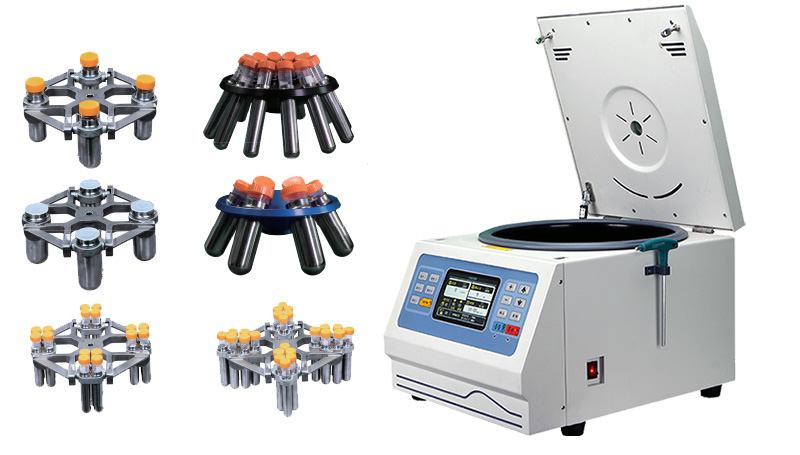

HY2-6C Low Speed Table Centrifuge
Intelligent control system
◆ The operation interface is equipped with five groups of user-defined preset programs that can be called by one key, and the humanized design function can make the centrifugal operation easier.
◆ Program group shortcut key, large storage space, it can store 99 program groups, convenient to use at any time.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ Real color high-definition LCD large screen, user-friendly interface, intuitive display, simple and convenient operation. The centrifugal force, speed, time, etc. are displayed on the same screen, and the parameters can be modified at any time during operation without shutdown.
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Linear drive have 10 gear acceleration and 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
◆ Two kinds of modes can be set: start timing or arrival revolution timing.
Careful and safe care
◆ The rotor automatic identification system prevents personnel from misoperation and makes centrifugation safer.
◆ The electromagnetic induction door protector with super sensitivity and double electronic door lock catch design are adopted, and the door cover protection, over-speed, over temperature, imbalance and other multiple early warning protection functions are provided to ensure safe operation.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system provides more comfortable experimental environment for experimenters.
Technical Parameter：
| Model | HY2-6C |
| Max Speed | 6000rpm | Power | 300W |
| Max RCF | 4338×g | Noise Level | ≤ 62dB(A) |
| Max Capacity | 4×100ml | Dimensions (L x W x H) | 500×360×330 (mm) |
| Timer | 1s～99h59min | Net Weight | 31kg |
| Revolutions/min | ±10r/min | Automatic rotor identification | Yes |
| Voltage | AC 220±22V 50/60Hz 10A | / | /
|
Rotor Parameter：
| Rotor Capacity | Rotor NO. | NO. | Rotor Capacity | Max Capacity(r/min) | Max RCF(×g) |
| Angle rotor(W) | 1 | 1 | 12×15ml | 6000rpm | 4226×g |
| 2 | 2 | 6×50ml | 6000rpm | 4338×g |
| Swing-out rotor body | 3 | 3 | Swing-out rotor body shall be used with as below pipe rack |
| Pipe rack | 3 | 4 | 4×50ml | 4200rpm | 2760×g |
| 5 | 4×100ml | 4200rpm | 2760×g |
| 6 | 16×15ml | 4200rpm | 2760×g |
| 7 | 24×10ml | 4200rpm | 2760×g |
