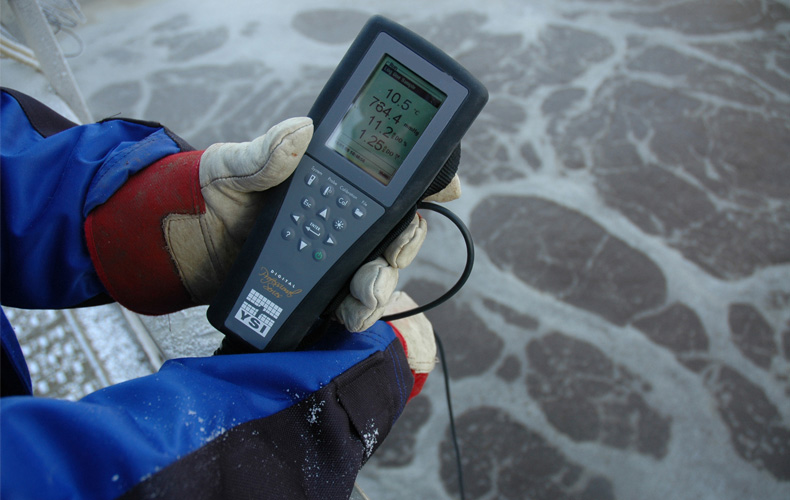

The Pro Plus instrument meets the demands of true field work. The instrument is rated to IP-67 standards even without the battery cover on. Other tough features include a 3-year warranty, Mil-spec connectors, rubber overmolded case, and a 2-year cable warranty. In-house testing procedures also include 1-meter drop tests from all angles to ensure expected field-durability.
YSI-ProPlus

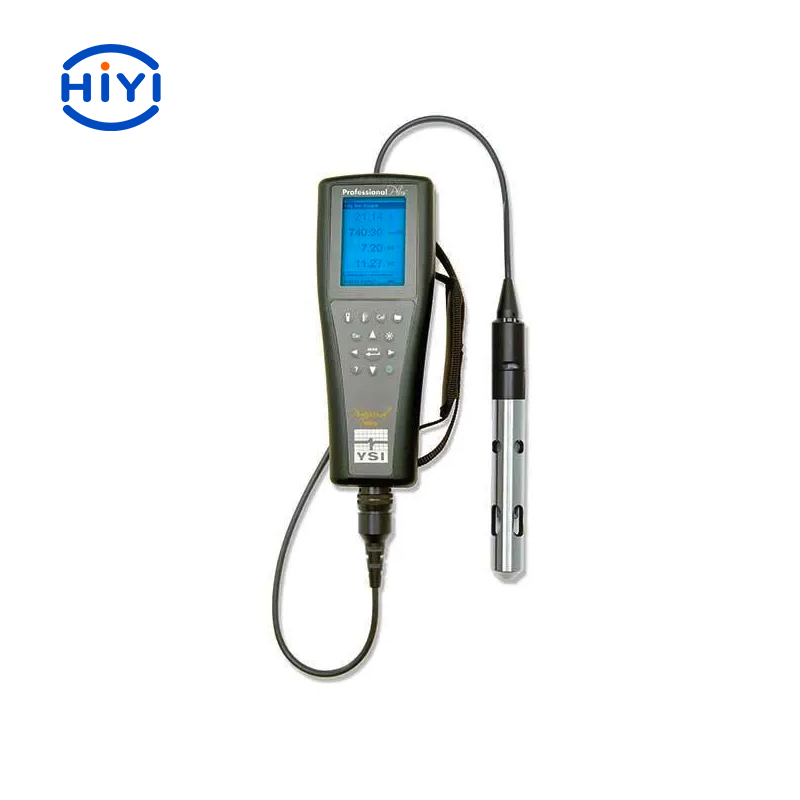

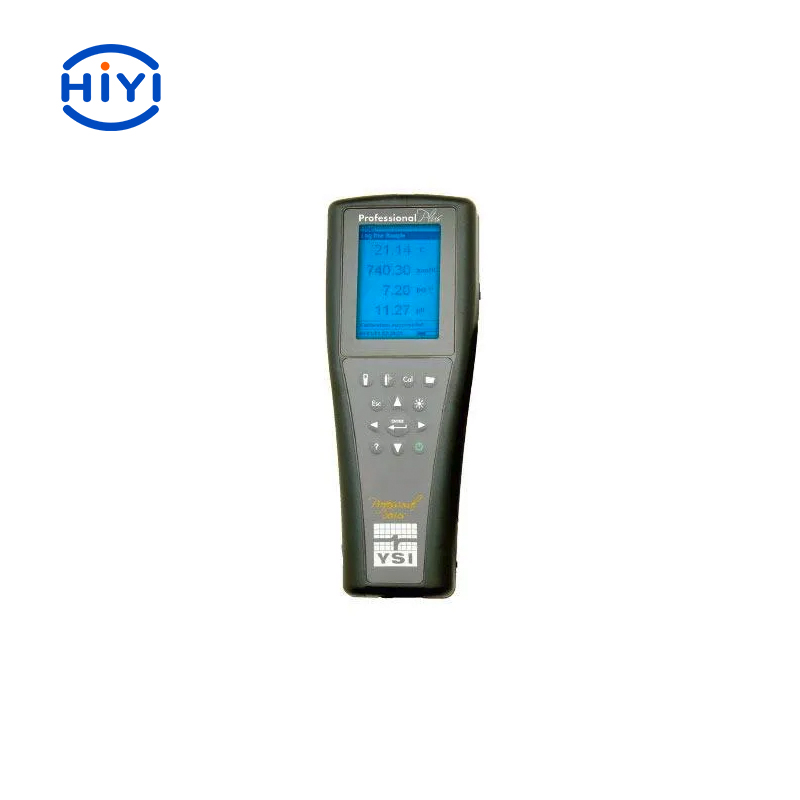

Professional Plus (Pro Plus) Multiparameter Instrument
Features:
Tough, Field Durability Features Include:
* Easy-to-install cable weights; can be daisy-chained for additional weight*
* Rubber, over-molded IP-67 waterproof case (even without the battery cover)*
* 3-year instrument warranty
* 2-year cable warranty
* Rugged cables, sensors, and military-spec connectors*
* Drop-tested 1 meter at all angles
* Scratch-resistant lens; viewable with polarized glasses
* Instrument floats
* Weighted, user-replaceable multi-sensor design
Autostable | User-defined auto-stable function holds stable readings on display when criteria is met |
Certifications | RoHS, CE, WEEE, C-Tick, VCCI, FCC, IP-67 (waterproof), 1-meter drop test, Assembled in USA |
Connectivity / Communications | USB 2.0 for data transfer and user-upgradeable instrument firmware. Communications saddle, USB cable and Data Manager software included |
Connector | Metal MS (military spec) waterproof with bayonet lock |
Data Management | 5000 data set memory in Pro Plus with 100 user-defined sites and site names. Data Manager desktop software included |
Desktop Software Compatible | Data Manager desktop software included. Minimum PC requirements - Windows 2000 with SP4 (minimum) or XP with SP2 (minimum), Vista 7 or Windows 8 | 300 MHz or higher Pentium-compatible CPU | 128 MB of RAM or higher | 80 MB or more of free hard-disk space |
Digital / Digital Sensors | No, the Pro Plus is an analog instrument |
GLP Compliance | Yes, detailed GLP information is stored and is available to view, download or print |
Graphic Display | Graphic display can be seen in any lighting condition and with polarized glasses | Backlit display AND keypad | Includes detailed on-board Help |
Languages | English, Chinese (Simplified and Traditional), Italian, Japanese, French, German, Portuguese, Spanish, Norwegian |
Logging Capabilities | Single or Continuous |
Memory | 100 GLP files, 5,000 data sets (data, date, time, user-defined info) |
Multiparameter | Yes |
Operating Temperature | -10 to 60C |
Parameters Measured | Temperature, Dissolved Oxygen, pH, ORP/Redox, Conductivity, TDS, Ammonia, Ammonium, Nitrate, Chloride,Built-in barometer |
Power | ProComm II saddle provides USB power or optional wall power, cigarette lighter, and universal cell phone charger options, 2 alkaline C-cells provide 80 continuous hours at ambient temperature without backlight |
Sampling | Yes |
Storage Temperature | -20 to 70째C |
Unit of Measure | Conductivity-mS/cm, Barameter-mmHg, pH-units, Chloride-mg/L, Salinity-ppt, ORP-mV, Temperature- 째C, mg/L, air saturation, Nitrate-mg/L-N, Dissolved Oxygen-%, Total Dissolved Solids(TDS)-g/L, Ammonium-mg/L-N, 째F |
User Calibratable | Yes |
User Replaceable | Yes, cables and most sensors are user-replaceable |
Warranty | 3-year instrument; 2-year field cables |
Waterproof | IP-67 (even with the battery cover off and cable disconnected), floats |
Professional Plus Instrument General Specifications:
Barometer | Built-in barometer |
Buffer Recognition | Auto buffer recognition for US and NIST buffers |
Cables: Field | Standard lengths of 1, 4, 10, 20, or 30 meters - up to 100 meters on DO only cables; 4- through 30-meter cables include a cable management kit |
Cables: Lab | BOD sensor includes 2-meter cable; 1 or 4 meters on lab pH, ORP and pH/ORP cables |
Dimensions | 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.25 in x 8.5 in x 2.21 in) |
DO Membrane Response Times (T95; 100%-0) and Required Flow Rate | 1.25 mil PE = 8 seconds and 6 in/sec flow 2.0 mil PE = 17 seconds and 3 in/sec flow 1 mil Teflon® = 18 seconds and 12 in/sec flow |
DO Sensors | Polarographic or galvanic field sensors; self-stirring polarographic BOD sensor for the lab |
Flow Cell | Single, dual and multiparameter Quatro cable all flow cell compatible |
User ID | Optional user ID for data security |
Weight | 475 grams (1.05 lbs) |
