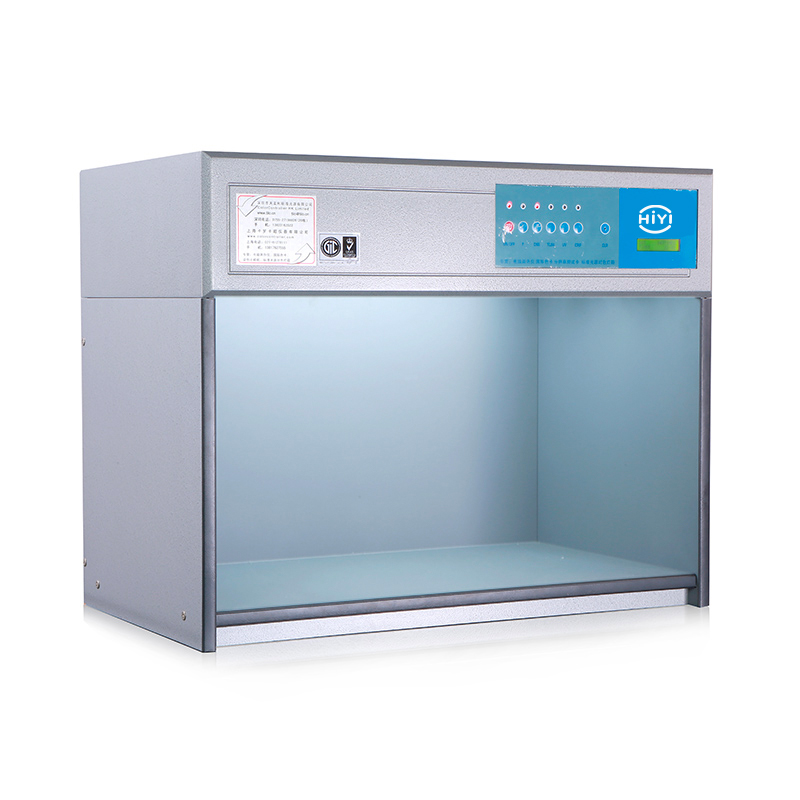

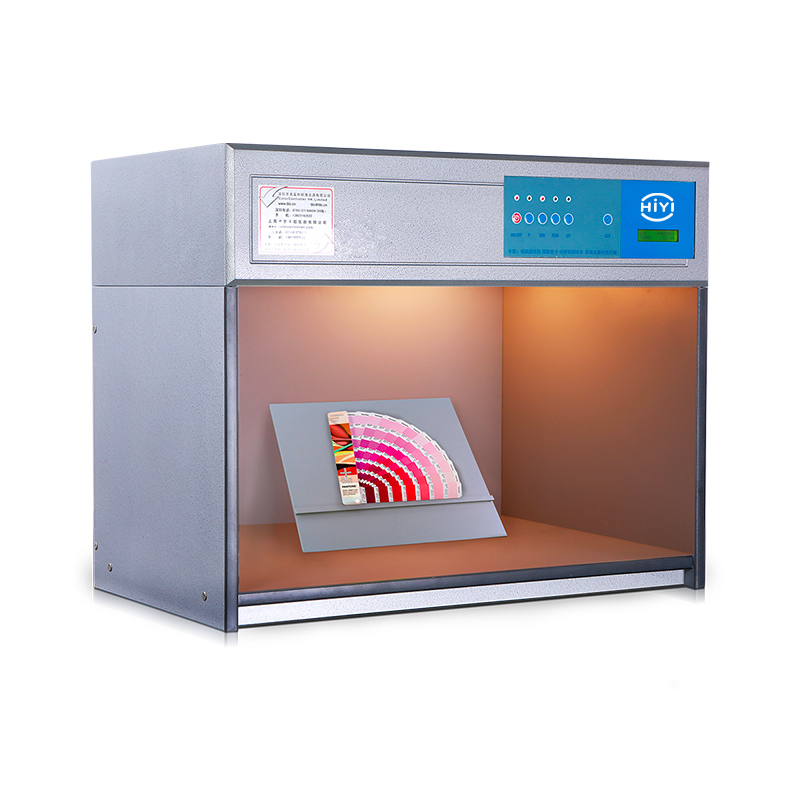

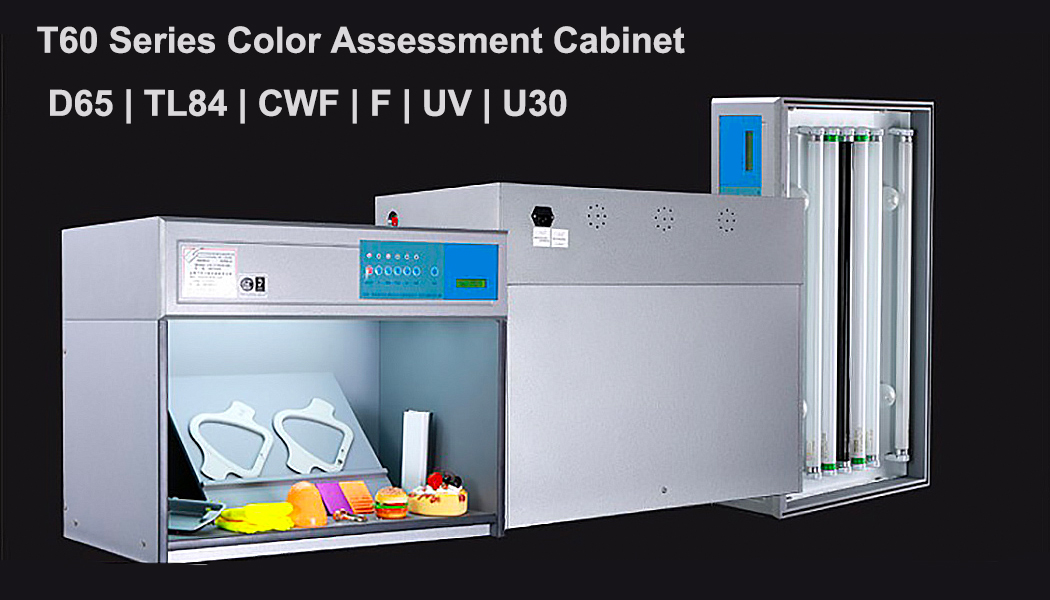

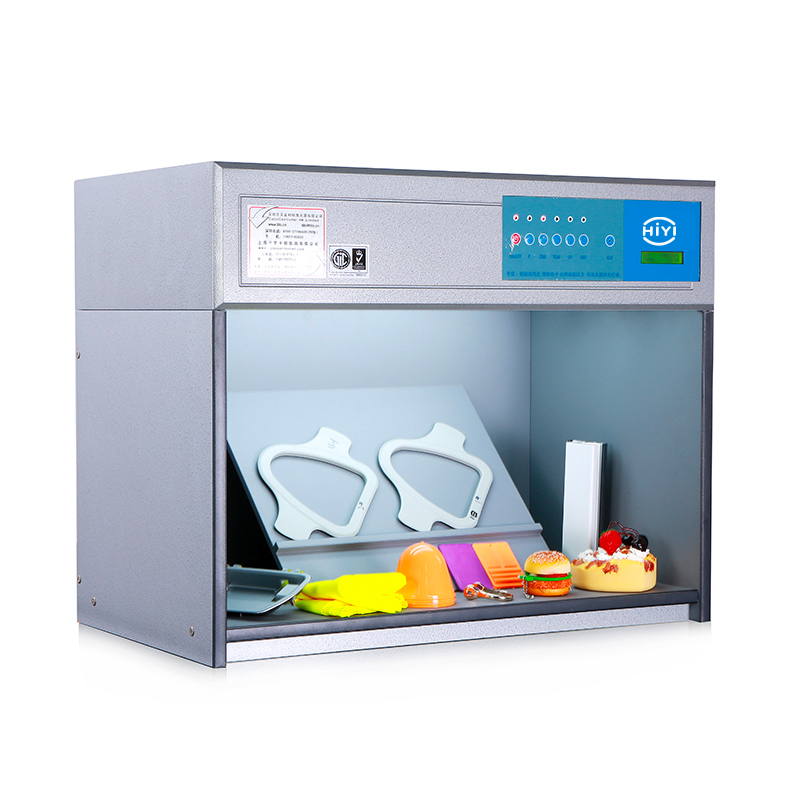

T60 Series Color Matching Cabinet

T60 Series color matching cabinet could be customized 4/5/6 light sources.

T60 Series color assessment cabinet can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching box instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video


Poster.jpgFeatures

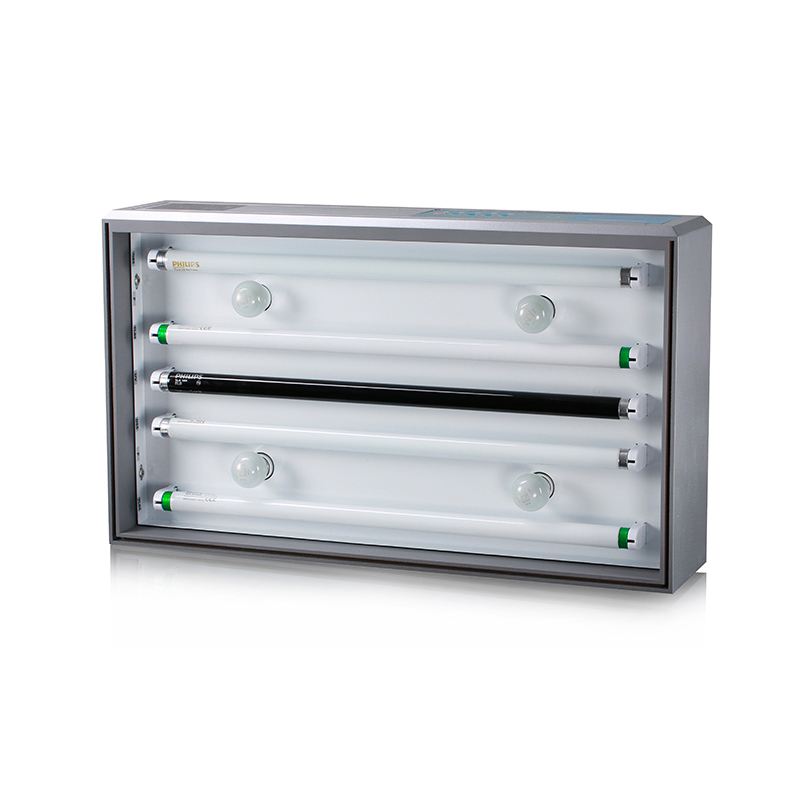

  1. Color Assessment Cabinet render color more accurately. Up to six different light sources(D65, TL84, F, UV,CWF,U30), which can detect the metamerism.

  2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

  3. Easy to operate by using individual switches for each light source.

  4. Elapsed time meter for tracking optimal lamp replacement.

  5. Automatically alternating among light sources.

  6. No warm-up time or flickering which insures quick and reliable color judgment.

  7. Economic power consumption and low heat generation for high light efficiency.

  8. The dimension can be made by customized.


Light SourceColor viewing booths applicationColor temperature(k)Power(W)
D65International standard Artificial Daylight650018
TL84Applied to stores in Europe, Japan and China400018
CWF(Cool White Fluorescent) American Standard415018
F/A"Sun-setting Light Yellow" incandescent light source (imitation of sunset)270040
UVViewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigmentsWave length:365nm20
TL83/U30Warm White Fluorescent American Standard300018
