Features
Transmittance uniformity > 90%.
Color temperature is adjustable,color temperature can be adjusted range: 2300K--9000K
Adjustable illumination,dimming range: 0—120000Lux Dimming is divided into high illumination dimming and low illumination dimming.Low-illumination dimming includes two knobs,which are coarse adjustment&fine adjustment,the dimming is more precise.
Light color is stable,no stroboscopic,life is more than 10,000 hours.
Installation
Be sure to connect the power supply that matches this product before powering up.

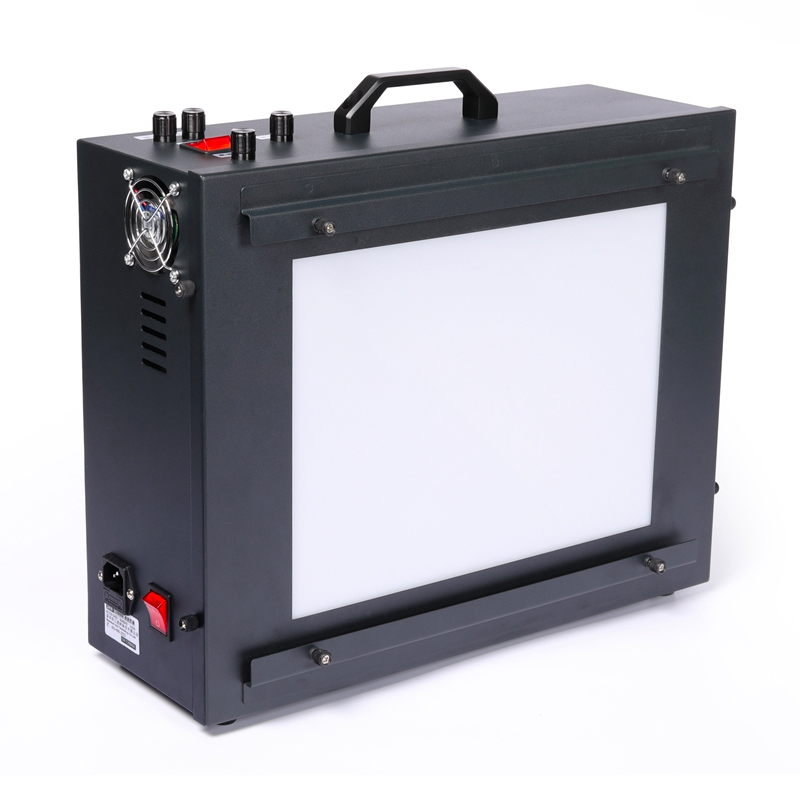

Place the probe of the illuminometer on the transmissive surface of the light box and adjust the brightness of the light box by turning the dimming knob as required .
High illumination dimming: Press the high/low illumination switch to the high illumination end and turn the high illumination dimming knob.
Low illumination dimming: Press the high/low illumination switch to the low illumination end and rotate the coarse and fine adjustment knobs for low illumination dimming.

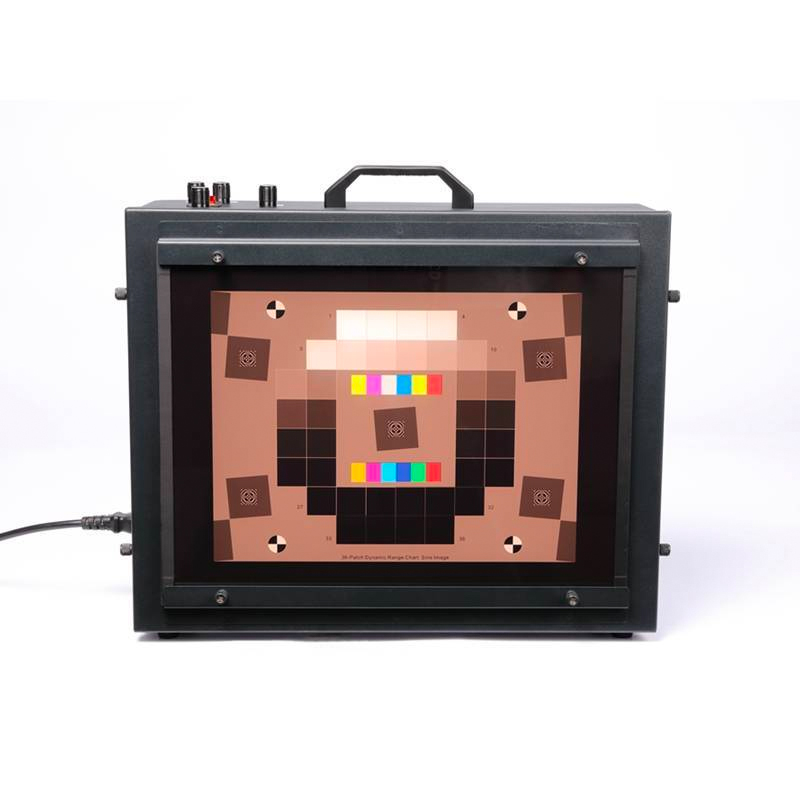

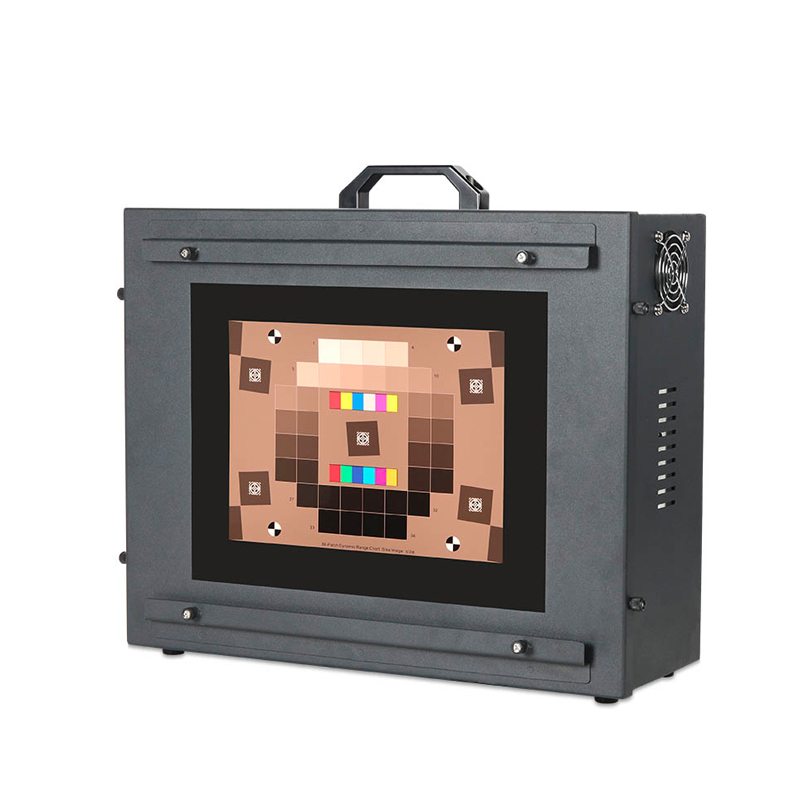

After adjusting to the required illuminance, preheat for 5-10 minutes. After the light color is stable, insert the chart into the light box slot.The chart is in the middle of the transmission surface of the light box, twist the four fastening screws to fix it .
1. Light box dimensions (Figure 2): length 410 * width 145 * height 330mm.
2. Light box transmission surface size:length 290 mm * height 220mm.
3. Test chart slot size:length 360 * width 8 * height 285mm.
4. Use environment: 0-28 °C, relative humidity below 85% (non-condensing).
5. Input voltage: AC110-240V 2.2A 50/60Hz
6. The maximum power consumption is 240W.
7. Net weight: 7.2kg.
