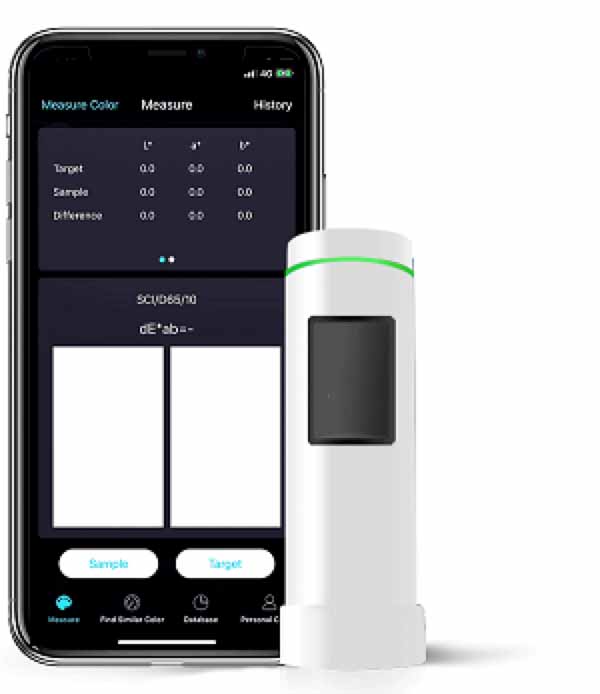

ColorMeter Plus Portable Digital Colorimeter

ColorMeter Plus is an enhanced version of the ColorMeter series. It is a powerful color measurement tool in the field of colorimeter. Excellent performance configuration makes color measurement more accurate; wireless connection with Android or IOS devices greatly expands the color The application boundary of the measuring instrument; it will take you into a new world of color management, which can replace the color card of printing, coating, textile, etc., and realize the function of color reading and color card search; the instrument can pass the national secondary measurement, and the measurement stability is less than or equal to 0.05, better than ColorMeter Pro.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video
FEATURES



1. It is a colorimeter and a spectrophotometer

a. It adopts the international D/8 (integrating sphere diffused illumination, 8° observation angle), and SCI illumination observation conditions, the measurement is more accurate;

b. The use of spectrum The sensor provides spectral data that is superior to the performance of traditional colorimeters, comparable to spectrophotometers;
c. Provides more than 20 measurement indicators such as whiteness, yellowness, ColorStrength, color fastness, hiding power, and 26 evaluation light sources;
d .You can directly see the prompt of "Pass" or "Fail" on the ColorMeter MAX screen, and the quality inspection is worry-free;
c. It can pass the national secondary measurement, the measurement stability is less than or equal to 0.05, the measurement accuracy is 0.01, and the display is more accurate.


2. A large number of portable color card database
a. Connect to the mobile phone App, create a color database, and enter the color card information of printing, coating, textile, etc.;
b. You can use ColorMeter MAX to search for multiple color cards anytime, anywhere without carrying heavy color cards. The closest color;




3. Artificial intelligence accurately perceives colors
a. The color search engine based on AI can accurately measure colors;
b. Help you collect your favorite colors anytime, anywhere;




4. Automatic calibration, shorter measurement time
a. The instrument is automatically calibrated when the instrument is turned on, and the color detection can be performed by picking up the instrument, and the data is correct;
b. When the instrument is working for a long time, the APP automatically pops up a calibration reminder, and the measurement work is not delayed;
c
.It can also be combined with the App for manual calibration and calibration interval setting; d.1s to display the results, the measurement is to show the number, improve work efficiency.

5. Available for stand-alone, with a lot of measurement and data
a.1.14-inch IPS display, giving you the color information you want;
b. The instrument can store data, and open the App to synchronize data at any time;

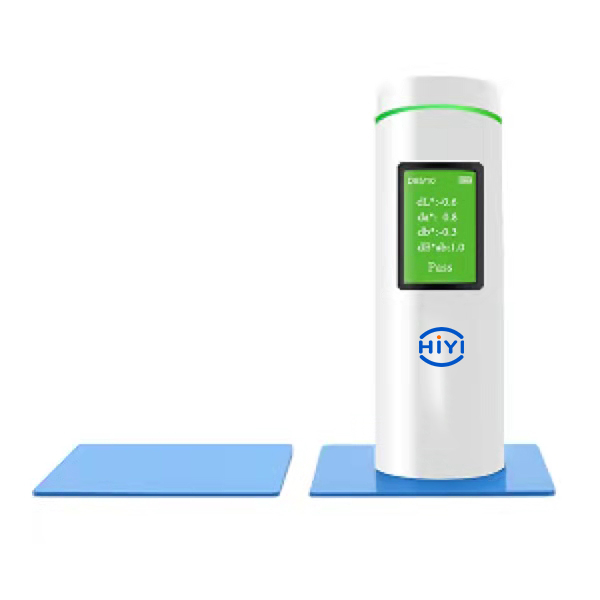

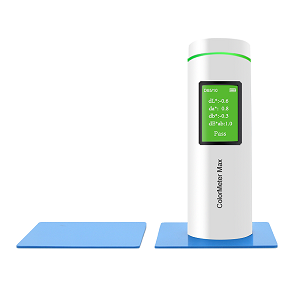

Stand-alone operation App operation

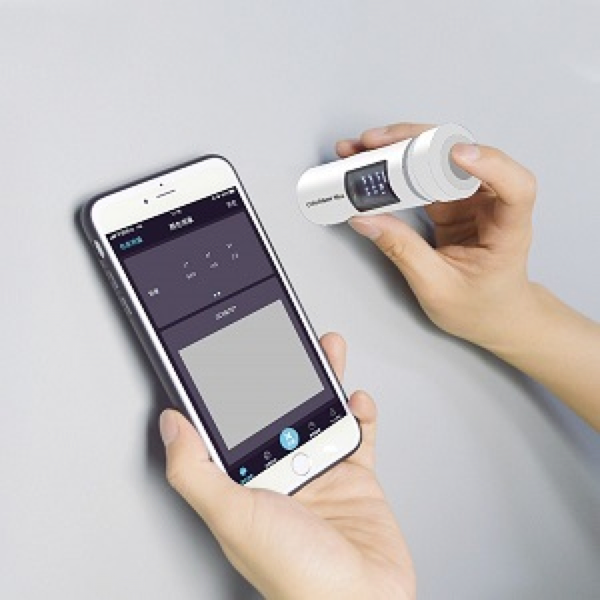

Wireless Connection Automatic Calibration Mini Digital Colorimeter 1Wireless Connection Automatic Calibration Mini Digital Colorimeter 2

6. Cloud database, viewing and uploading more convenient
a. Provide official color card database, find it at will, and use it as you like;
b. The color information database created by users can be uploaded to the cloud, multi-device data sharing, color processing is more convenient;
c. Enterprise users You can create and manage your own color card information library and color formula in the cloud, and share the information library and color formula with merchants and users through a unique invitation code.

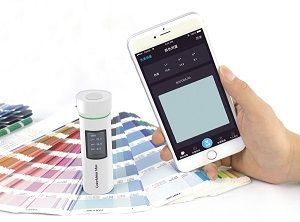

Wireless Connection Automatic Calibration Mini Digital Colorimeter 3




TECHNICAL PARAMETERS



Product numberColorMeter Plus
Measurement structureD/8, including specular reflection light (SCI)
measurement standardSpectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB,
color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00) , ASTM
E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), yellowness (ASTM
D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), stain fastness,
color fastness , Tint (ASTM E313-00), color density CMYK (A, T, E, M), metamer index Milm,
Munsell, hiding power, strength (dye strength, tinting power)
Lighting sourceLED (full band balanced LED light source)
Measuring caliber8mm
Wavelength interval10nm
Wavelength range400-700nm
Measurement stabilityΔE≤0.05 (measure the whiteboard 30 times every 5s)
measure time1s
interfaceUSB
Light source conditionsA, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12,
CWF, U30, U35, DLF,
NBF, TL83, TL84
Field of view2°, 10°
screenIPS full color screen (135*240, 1.14inch)
battery capacity4.2V/760mAh, a single full charge can continuously measure 10,000 times
LanguageSimplified Chinese, English
calibrationAutomatic calibration
software supportAndriod, IOS, Windows
weightAbout 90g
volumeDiameter: 31mm, height: 102mm
Over-measuredCan pass the national secondary measurement
measurement accuracy0.01
