ColorMeter Smart Mini Colorimeter

ColorMeter Smart is the basic instrument of the ColorMeter series , which can meet the basic color detection needs, but it is different from the traditional colorimeter. It is small in size and adopts the structure of D/8 spectrophotometer, which is more convenient to use; it is wirelessly connected to Android or IOS devices to manage colors on the phone; it has a color number search function to find the color you want. It is widely used in color control in plastics, printing, packaging, textile, clothing and other industries.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video
FEATURES



1. Colorimeter with more accurate color measurement
a. Adopt international D/8 (integrating sphere diffused illumination, 8° observation angle), SCI illumination observation conditions, and more accurate measurement;
b. Use spectrum sensor, Provide better performance spectral data, comparable to spectrophotometer;
c. Output CIE-Lab, ΔE*ab, color data of spectral curve under D65 light source;
d. You can directly see "Pass" or "Pass" on the screen of ColorMeter SE "Fail" prompt, worry-free quality inspection;



2. Carry-on massive color card database a. Wirelessly connect to the mobile phone App, create a color database, and enter printing, coating, textile and other color card information; b. No need to carry heavy color cards, You can use ColorMeter SE to find the closest color in multiple color cards anytime, anywhere;

3. Auto-calibration, it can take care of itself
a. The instrument is automatically calibrated at the same time when the instrument is turned on, and the color detection can be performed by picking up the instrument, and the data is correct;
b. The instrument works for a long time, the APP automatically pops up a calibration reminder, and the measurement work is not delayed ;
C. It can also be combined with App for manual calibration and calibration interval setting. 4. Available for stand-alone, with a lot of measurement and data a.1.14-inch IPS display, giving you the color information you want; b. The instrument can store data, and open the App to synchronize data at any time;

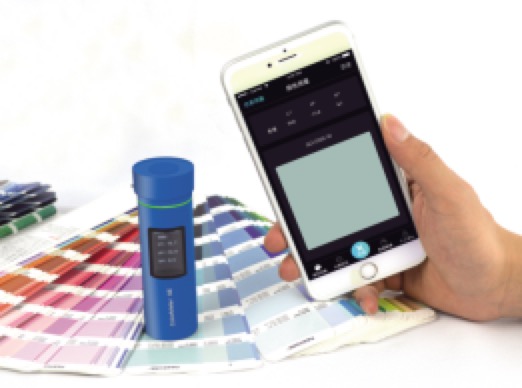

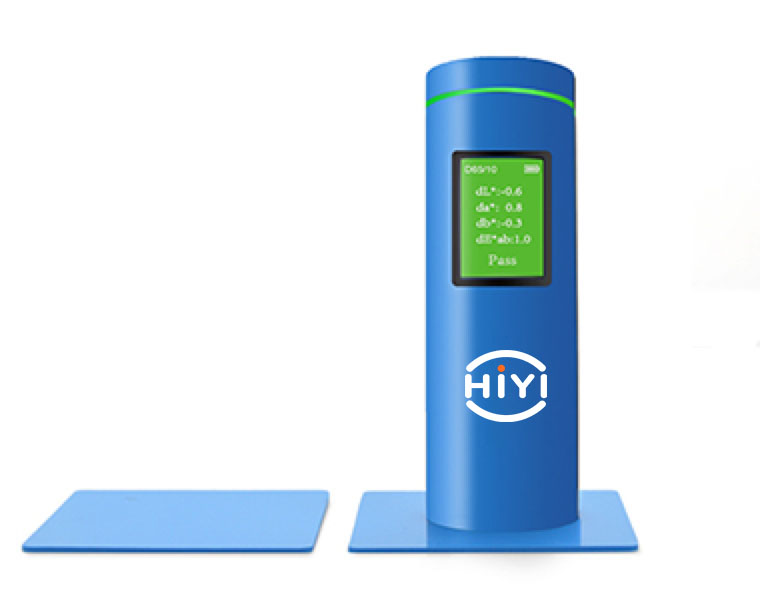

High Accurate Basic Handheld Spectrophotometer For Plastics Packaging Cloth Color Control 1 High Accurate Basic Handheld Spectrophotometer For Plastics Packaging Cloth Color Control 2



Stand-alone operation App operation



5. Cloud database, more convenient to view and upload
a. Provide official color card database, find it at will, and use it as you like;
b. The color information library created by users can be uploaded to the cloud, multi-device data sharing, color processing is more convenient;
c. Corporate users You can create and manage your own color card information library and color formula in the cloud, and share the information library and color formula with merchants and users through a unique invitation code.

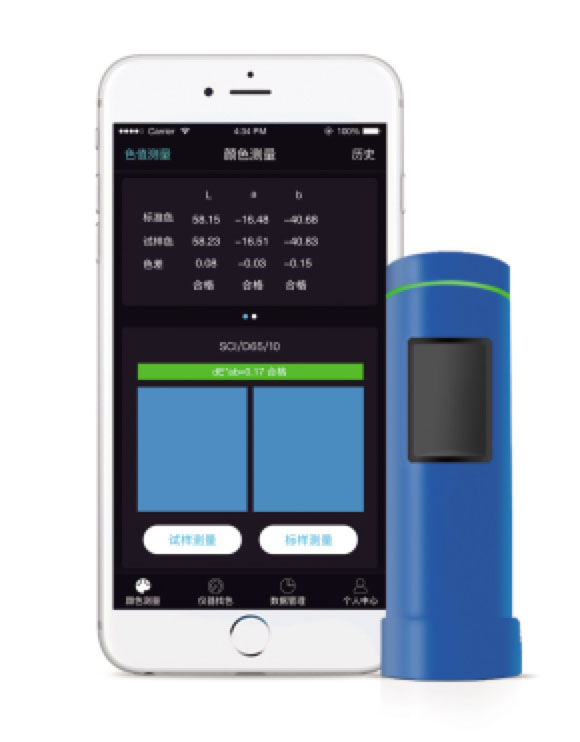

High Accurate Basic Handheld Spectrophotometer For Plastics Packaging Cloth Color Control 3



TECHNICAL PARAMETERS
  • Product numberColorMeter Smart
    Measurement structureD/8, including specular reflection light (SCI)
    measurement standardCIE-Lab, ΔE*ab, spectral curve
    Lighting sourceLED (full band balanced LED light source)
    Measuring caliber8mm
    Measurement stabilityΔE≤0.1 (measure the whiteboard 30 times every 5s)
    measure time1.5s
    interfaceUSB (for charging only)
    Light source conditionsD65
    Field of view10°
    screenIPS full color screen (135*240, 1.14inch)
    battery capacity4.2V/500mAh, a single full charge can continuously measure 5000 times
    LanguageSimplified Chinese, English
    calibrationAutomatic calibration
    software supportAndriod,IOS
    weightAbout 90g
    volumeDiameter: 31mm, Height: 102mm
