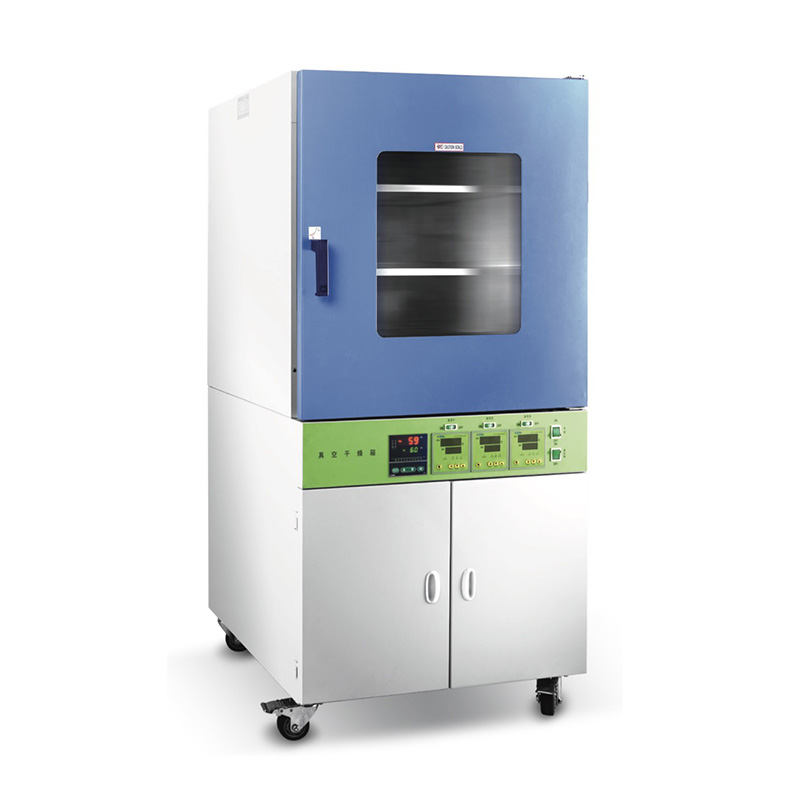

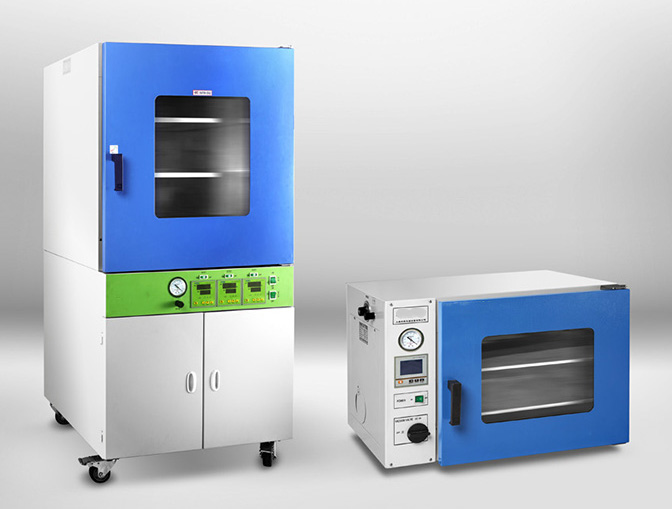

LVO-LC Series Pharmaceutical Drying Oven

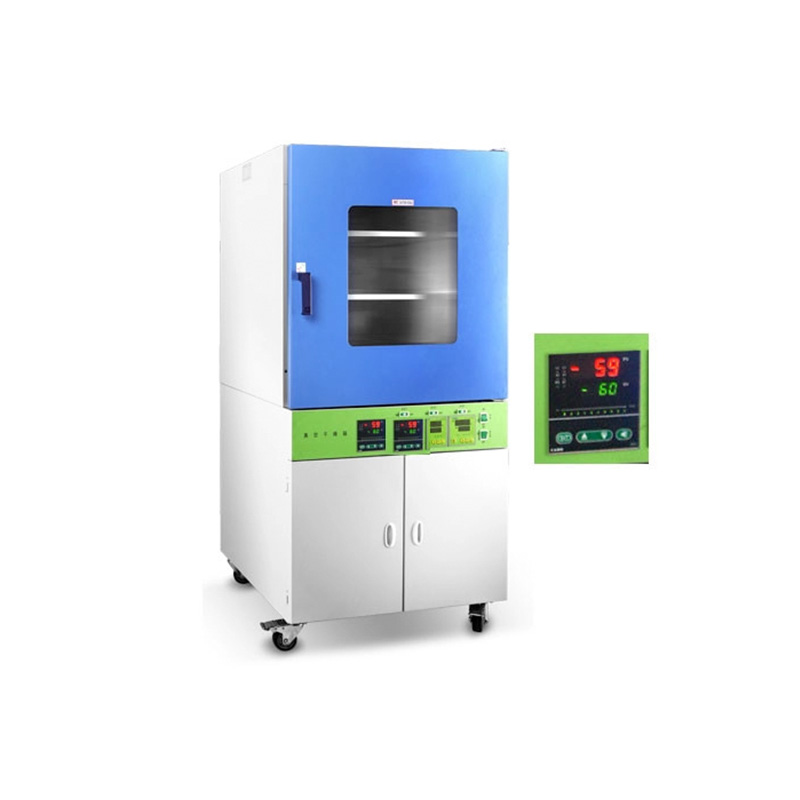

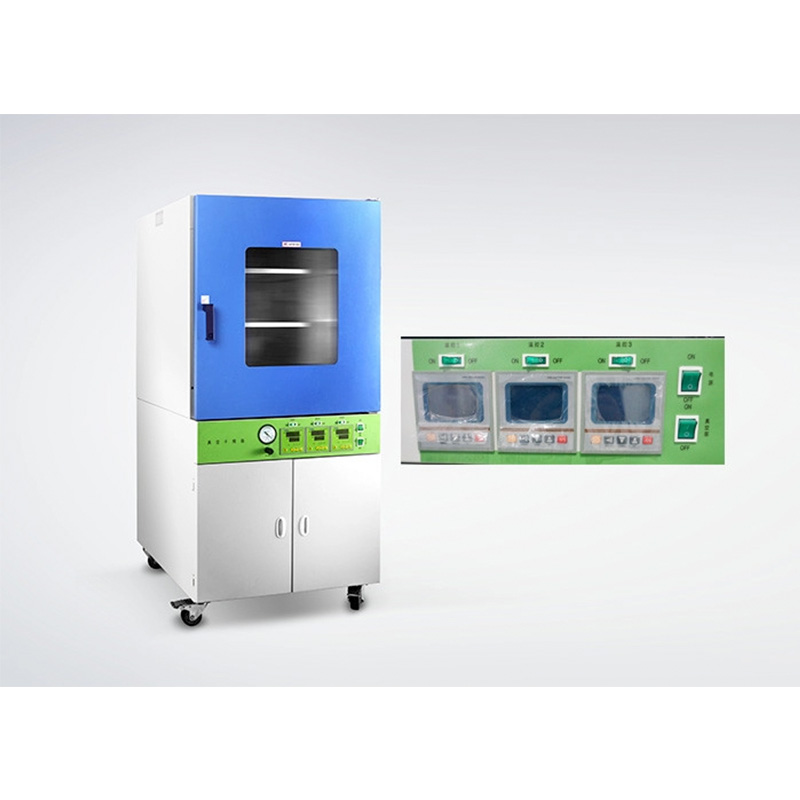

Microprocessor controller with LCD display, more accurate and reliable.
Polished stainless steel chamber,durable and easy to clean.
Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.
Door tightness can be adjusted,silicon sealing. To keep vacuum states in the chamber, can fll working chamber with inert gas (infation pressure ɗ 0.1 MPa).
Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.
Vacuum degree is full-automatic controlled by microcomputer
Equipped with leakage protection.
Options: 1. Multi-segment programmable control 2. Built-in printer 3. RS485 interface 4. Inert gas inlet valve 5. Vacuum pump
| Model | LVO-6050LC | LVO-6090 LC | LVO-6210 LC |
| Power Supply | AC 220V, 50Hz |
| Power Rating(KW) | 1.4 | 1.6 | 2.2 |
| Temperature Range(℃) | RT+10～250 | RT+10～200 |
| Temperature Fluctuation | ±1℃ |
| Display Resolution | 0.1℃
|
| Vacuum Degree | <133 Pa |
| Chamber Size (W×D×H)cm | 42×35×37 | 45×45×45 | 56×60×64
|
Exterior Size (W×D×H)cm | 53×56×137 | 61×66×145 | 72×82×175
|
| Package Size (W×D×H)cm | 70×66×155 | 78×76×163 | 89×92×193 |
| Net/Gross(kg) | 75/106 | 90/145 | 145/195
|
