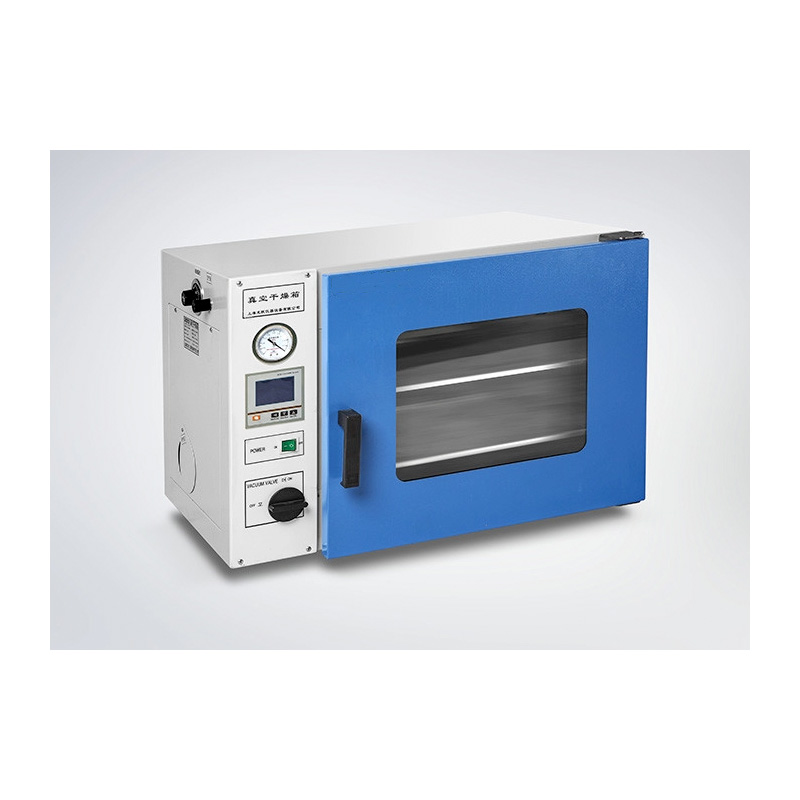

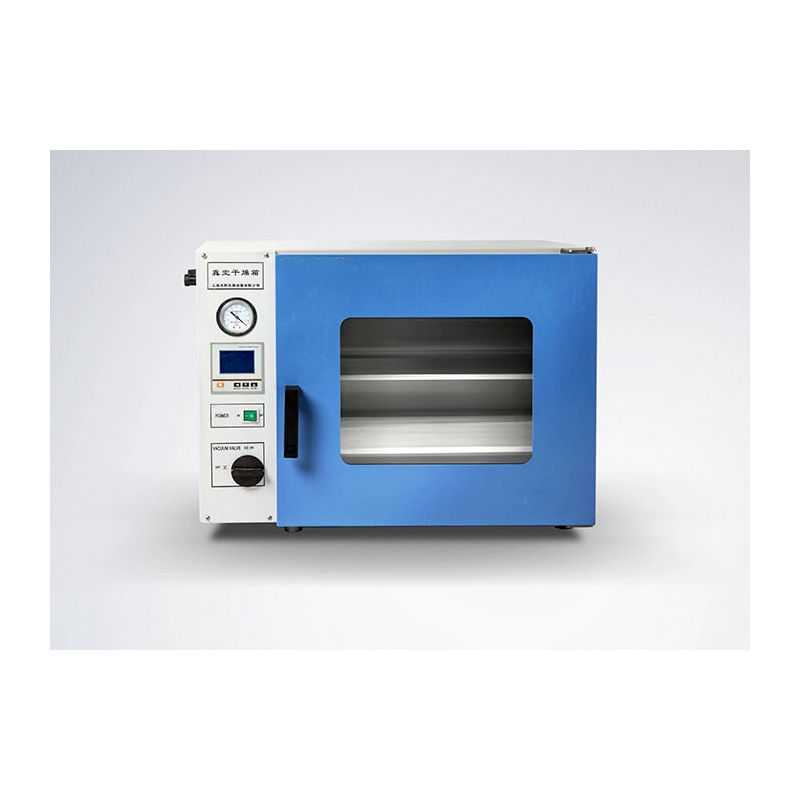

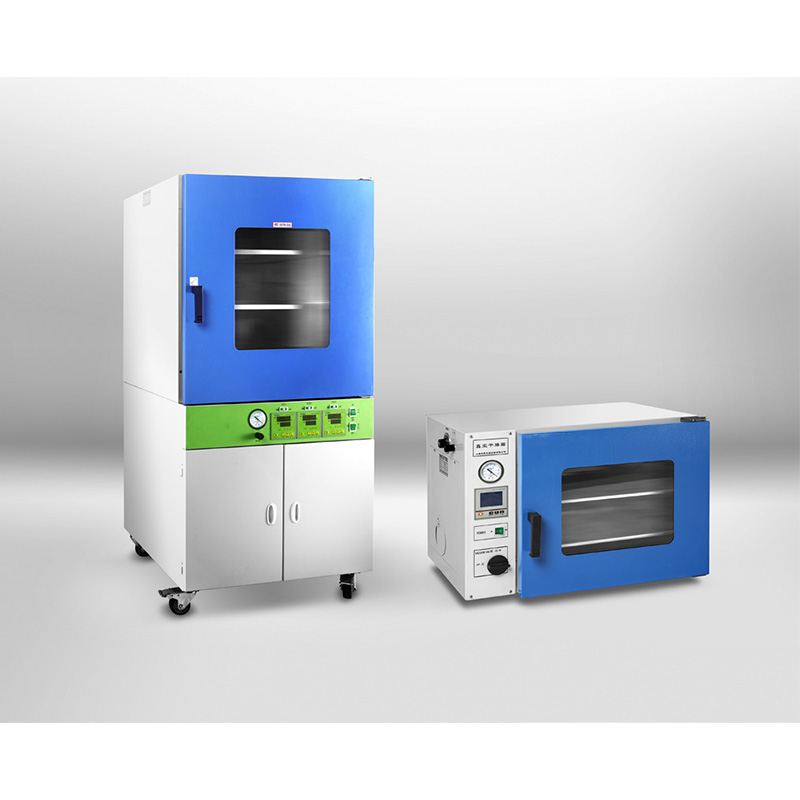

LVO Series Vacuum Drying Oven
Microprocessor controller with LCD display, more accurate and reliable.
Polished stainless steel chamber,durable and easy to clean.
Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.
Door tightness can be adjusted,silicon sealing. To keep vacuum states in the chamber, can fll working chamber with inert gas (infation pressure ɗ 0.1 MPa).
Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere.It will not cause oxidation.
Equipped with leakage protection.
| Model | LVO-1B(6050) | LVO-0B(6020) | LVO-6090 | LVO-6210 | LVO-6933 |
| Power Supplly | AC 220V, 50Hz |
| Power Rating | 1.4KW | 0.5KW | 1.6KW | 2.2KW | 5.5KW |
| Temperature Range(℃) | RT+10～250 | RT+10～200℃ |
| Temperature Fluctuation | ±1℃ |
| Display Resolution | 0.1℃ |
| Vacuum Degree | <133 Pa |
| Chamber Size (W×D×H)cm | 42×35×37 | 30×30×28 | 45×45×45 | 56×60×64 | 75.5×116×115 |
| Exterior Size (W×D×H)cm | 71×59×53 | 58×57×45 | 61×66×145 | 72×82×175 | 93×130×182 |
| Package Size (W×D×H)cm | 82×70×69 | 70×64×60 | 78×76×163 | 89×92×193 | 120×145×200 |
| Net/Gross(kg) | 75/106 | 35/50 | 90/145 | 145/195 | 550×600 |
