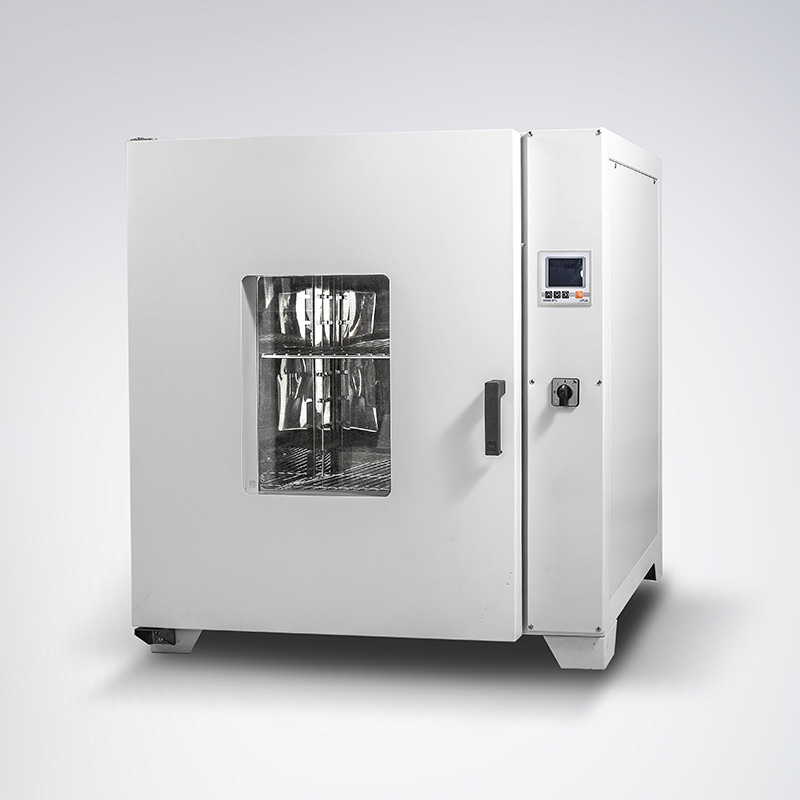

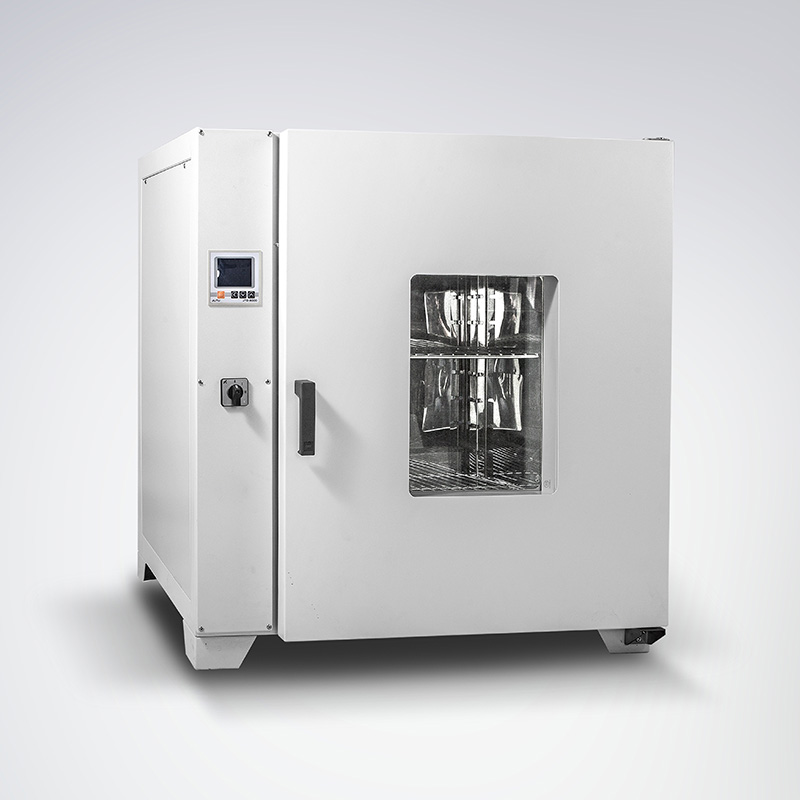

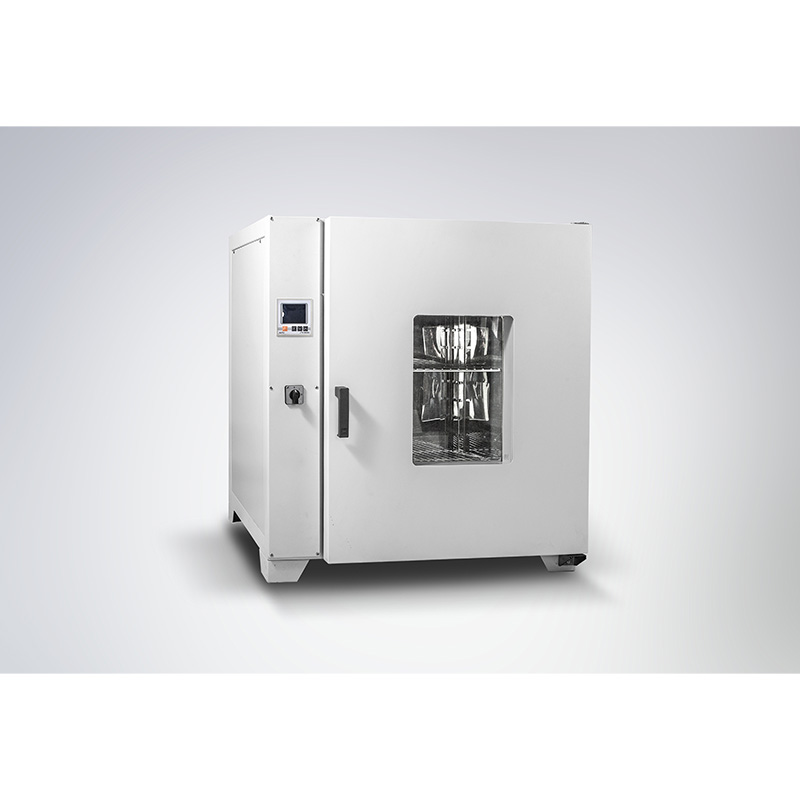

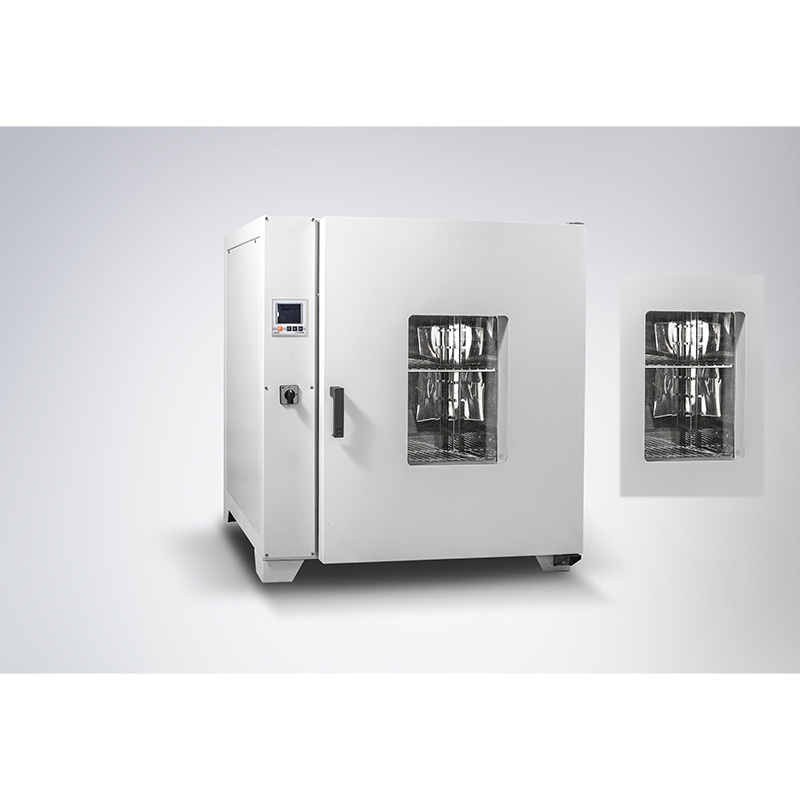

LIO Series Fast Far Infrared Drying Oven
Equipped with far-infrared heating radiator, temperature control.
Microprocessor controller(with temperature correction and timing function).
Large LCD screen display.
High quality stainless steel chamber, removable shelf, easy-to-clean.
Equipped with multiple sets of heaters.
Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.
Convenient operation for air inlet,reasonable air duct structure,good temperature uniformity.
Silicon sealing ring for reliable sealing.
With inner glass door for easy observation.
Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.
Optional printer or RS485 interface which can print or connect computer for remote control and alarm.
Anti-hot handle
Options:1. Multi-segment programmable control；2. Built-in Printer；3. RS485 interface
Model
|
Volume(L) | Exterior Size(W×D×H)c | Chamber Size (W×D×H)cm | Package Size (W×D×H)cm | Power Rating(W)
| Net/Gross (kg) | Shelf
| Temp. Range(℃) | Power Supply
|
| LIO-300 | 43 | 64×50×60 | 35×35×35 | 75×57×84 | 1400 | 36 / 56 | 2 |
RT +10～250
| 220V,50Hz |
| LIO-400 | 81 | 73×53×69 | 45×40×45 | 86×60×90 | 2000 | 51 / 81 | 2 |
| LIO-500 | 138 | 78×69×80 | 50×50×55 | 96×70×100 | 2800 | 76 /111 | 2 |
| LIO-600 | 252 | 88×73×95 | 60×60×70 | 106×80×110 | 4000 | 111/151 | 2 |
