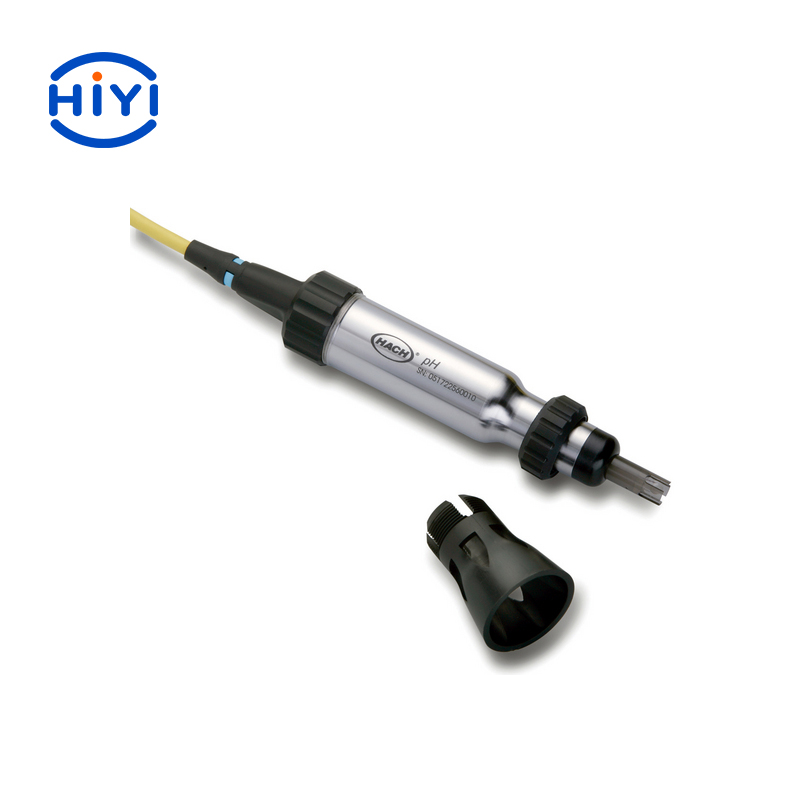

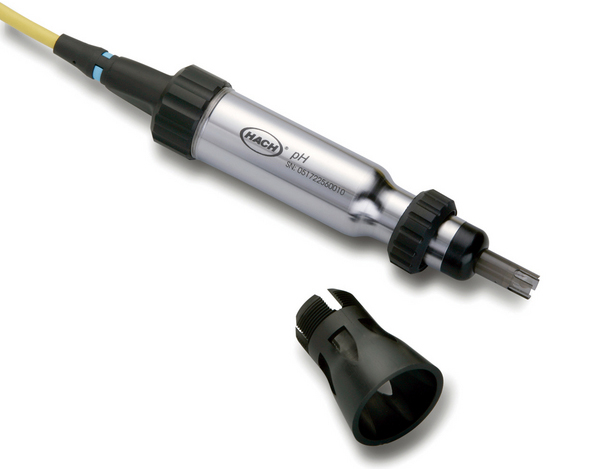

Field Low Maintenance Gel Filled pH Electrode
IntelliCAL PHC10105

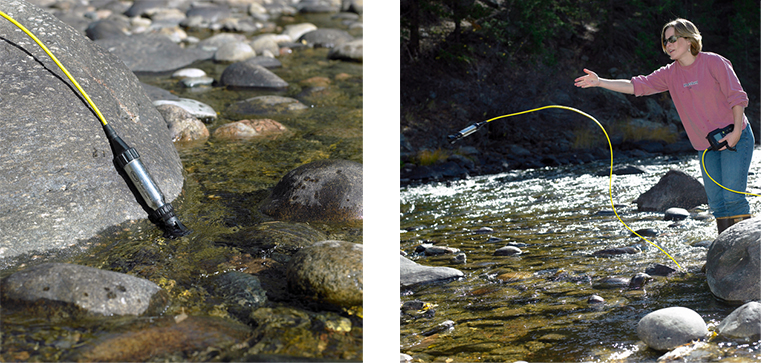

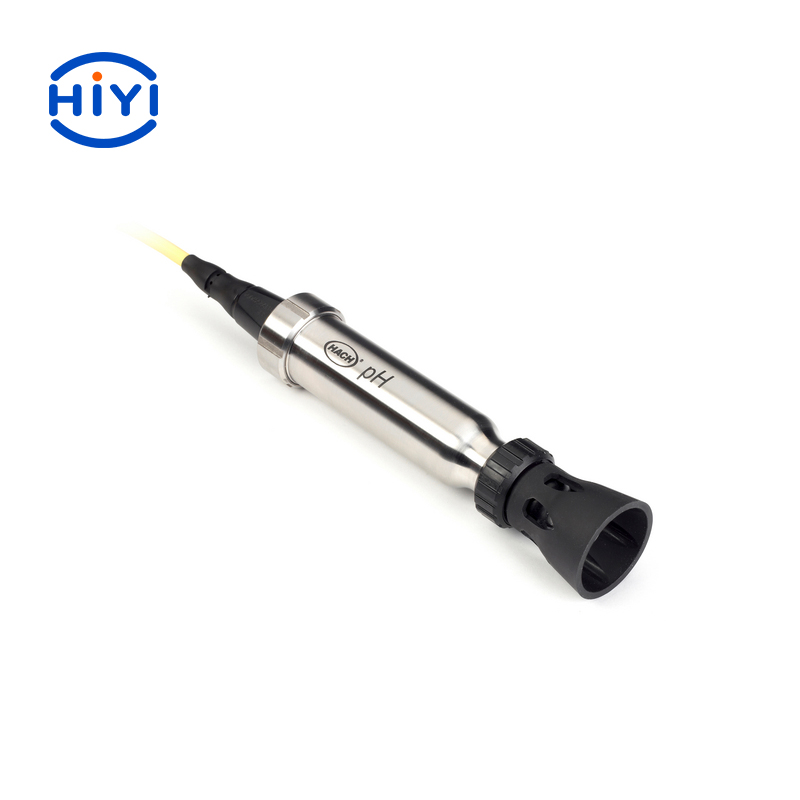

IntelliCALⓇ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged PHC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the pH sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the PHC101 rugged models specially designed for field use. PHC101 Rugged is available with a 5, 10, 15, or 30 meters cable.
* Rugged digital probes can reliably test in the harshest environmental conditions
* Digital probes provide ultimate traceability in measurement history
* Digital probes alert the user when re-calibration is needed
* Digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
* Rugged digital probes are waterproof up to 30 meters (IP67 rating)
Accuracy | ±0.02 pH |
Application | Clean & Dirty Samples |
Cable Length | 5 m (16.40 ft) |
Electrode Type | Non-Refillable Gel Reference Element |
Junction | Open Junction |
Kit? | No |
Length | 223 mm (8.73 in.) |
Method Type | Field: Non-Refillable Gel Reference Element |
Parameter | pH |
Probe Type | Rugged |
Product Kit | Model: PHC101
Accessories Included: None |
Range | 2 - 14 pH |
Reference Type | Ag/AgCl |
Resolution | 0.001/0.01/0.1 |
Sample depth | 20 mm (0.79 in.) |
Sensor material | Zeonor™/ Stainless Steel |
Sensor Type | pH Glass |
Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
Special Features | Double junction reference |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Temperature Range | 0 - 50 °C (32 - 122 °F) |
Temperature Resolution | 0.1 °C (0.18 °F) |
Test requirements | Parameter Needed: pH
Minimum Sample Depth (mm): 20 |
Thermistor | ATC |
Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Weight | 0.9 kg |
What's included? | IntelliCAL PHC101 Rugged pH electrode with storage cap, 5 m cable, Test certificate, and Basic User Manual |
