Laboratory Dirty Media Red Rod Refillable Glass pH Electrode
IntelliCAL PHC73501

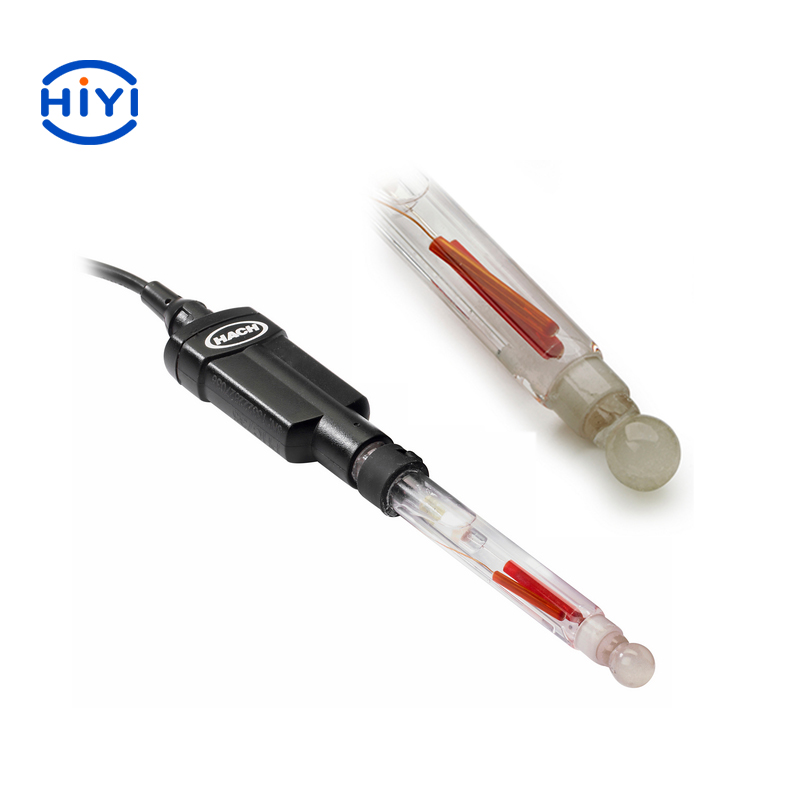

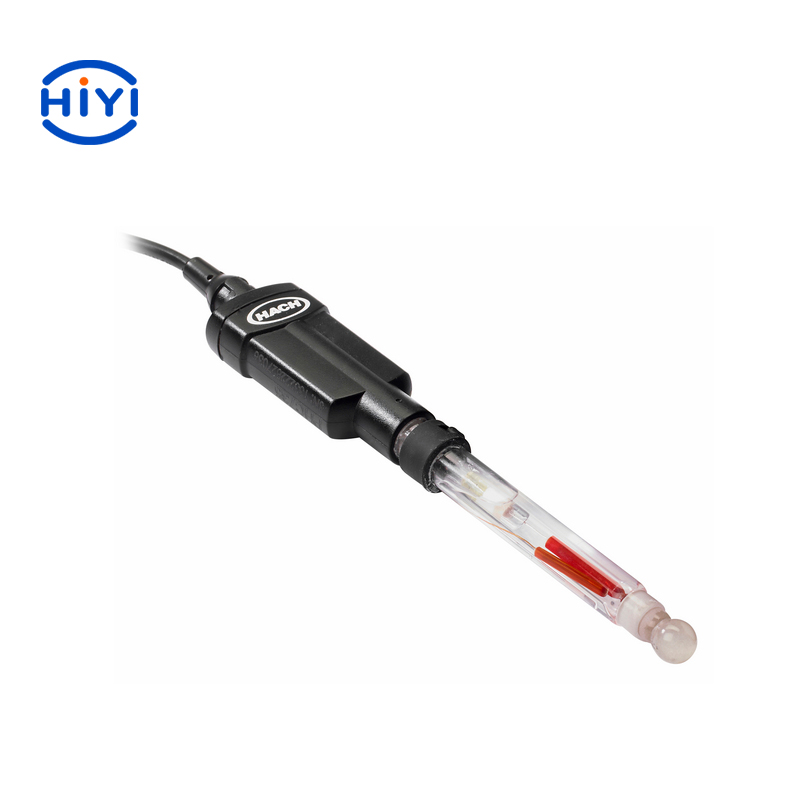

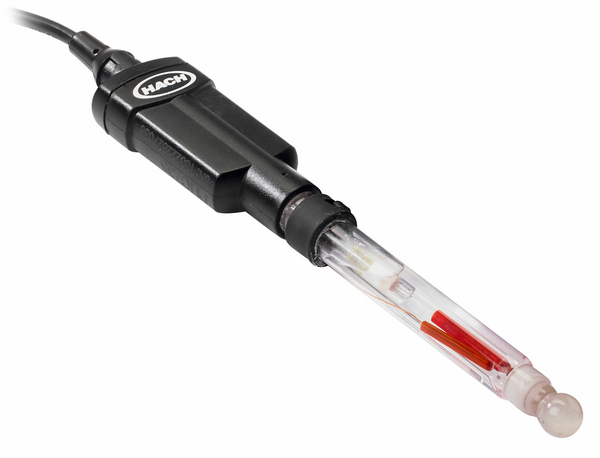

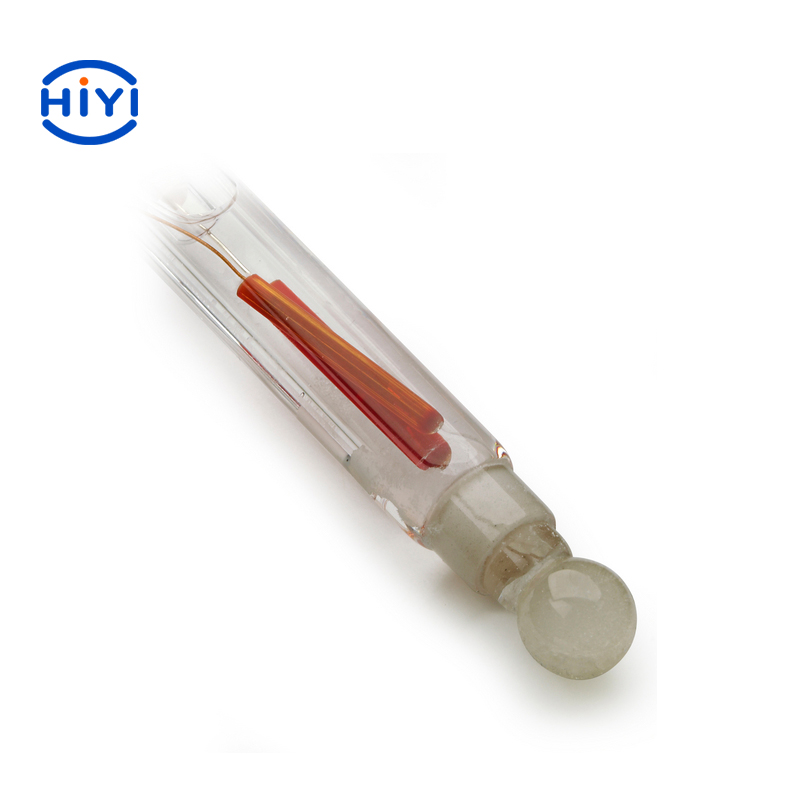

High performance Red Rod technology now available for the digital HQD platform IntelliCALⓇ PHC735 is a digital combination pH electrode with built-in temperature sensor. The PHC735 is a pH refillable electrode with a high flow annular ceramic porous reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. Thanks to its high flow annular ring reference junction this high performance laboratory glass pH electrode is ideal for measuring pH in “dirty” samples, including wastewater, food and beverage applications. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe.
The PHC735 is not suitable for use with organic solvents or high alkaline sample types.
Features:
* Red Rod technology provides fast, accurate and reproducible measurements
* Red Rod reliability when measuring challenging samples over wider temperature ranges
* IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
* IntelliCAL digital probes provide ultimate traceability in measurement history
* Wide temperature range up to 100 °C
Accuracy | ±0.01 pH |
Application | Very Dirty Samples |
Cable Length | 1 m (3.28 ft) |
Electrode Type | RedRod / Refillable Reference Element / High Flow |
Filling Solution | Saturated KCl (#25118026) |
Junction | Annular Junction, High Flow |
Kit? | No |
Length | 200 mm (7.87 in.) |
Method Type | Laboratory: RedRod / Refillable Reference Element / High Flow |
Parameter | pH |
Probe Type | Standard |
Product Kit | Model: PHC735
Accessories Included: None |
Range | 0 - 14 pH |
Reference Type | Red Rod |
Resolution | 0.001/0.01/0.1 |
Sample depth | 14 mm (0.55 in.) |
Sensor material | Glass |
Sensor Type | pH Glass |
Sodium (Alkalinity) error | <0.3 pH at pH 13 in 0.1 M NaOH |
Special Features | Dirty Media |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Temperature Range | –10 - 100 °C (14 - 212 °F) |
Temperature Resolution | 0.1 °C (0.18 °F) |
Test requirements | Parameter Needed: pH
Minimum Sample Depth (mm): 14 |
Thermistor | ATC |
Weight | 0.1 kg |
What's included? | IntelliCAL PHC735 Laboratory pH electrode with storage soaker bottle, 1 m cable, 59-mL bottle reference electrolyte filling
solution (Saturated KCl solution), Test certificate, and Basic User Manual. |
