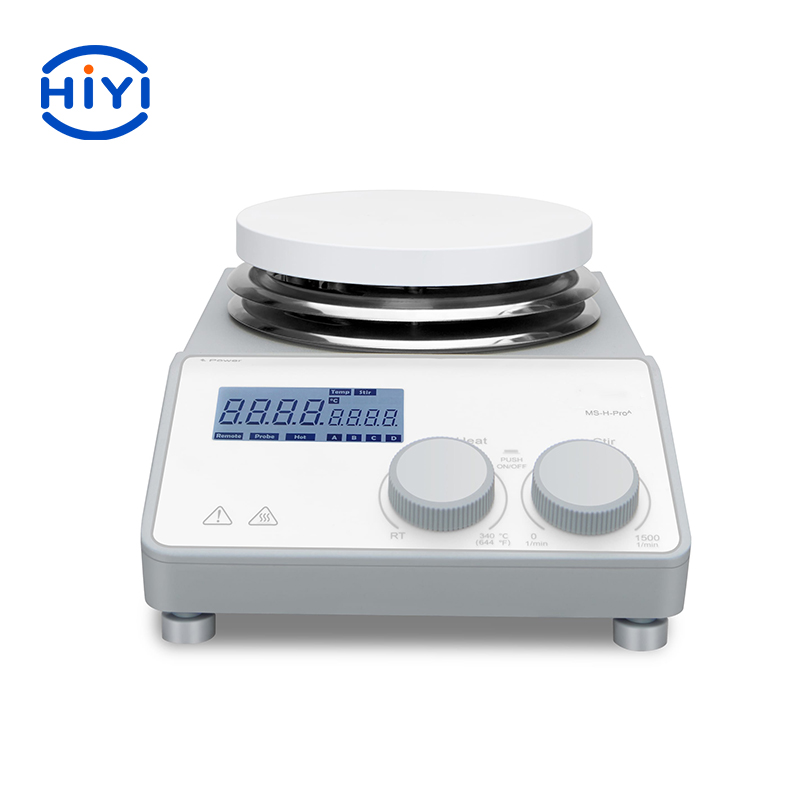

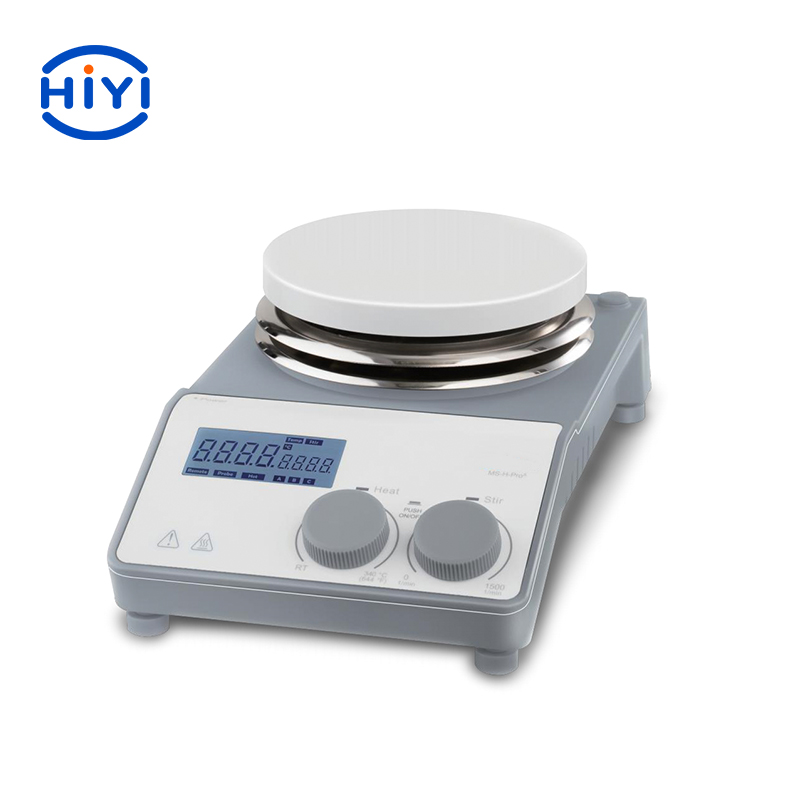

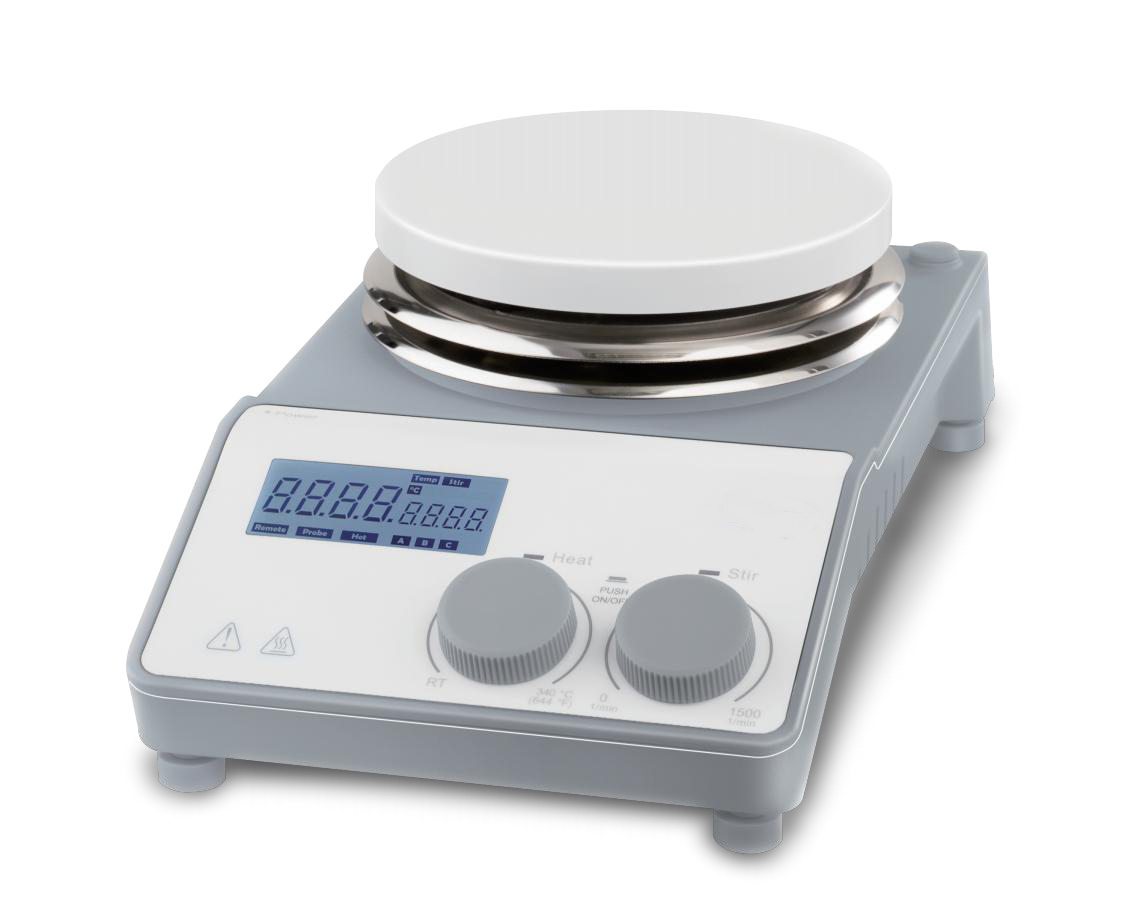

MS-H-PRO+ LCD Digital Magnetic Hotplate Stirrer
Features:
• Digital control with max. temperature at 340℃，max speed up to 1500rpm.

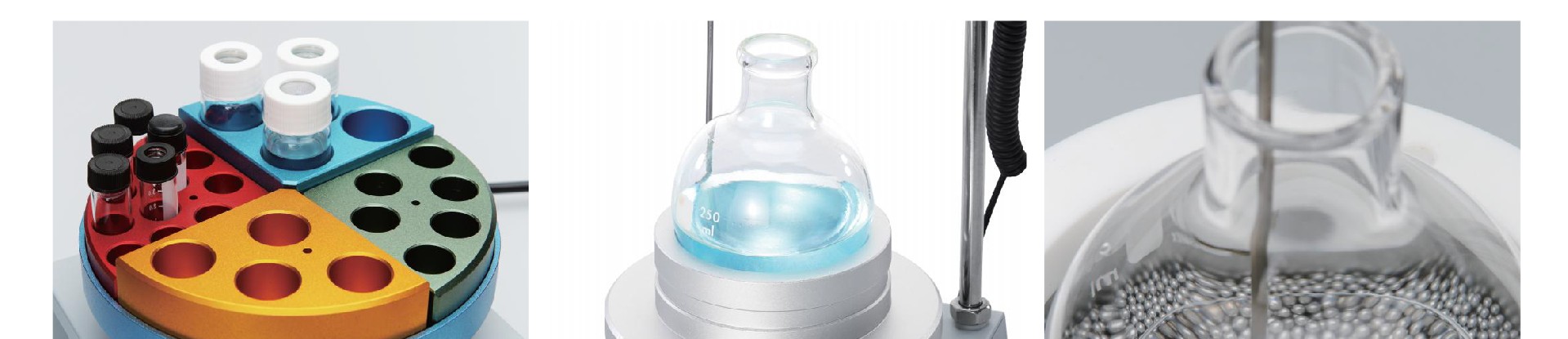

• Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.

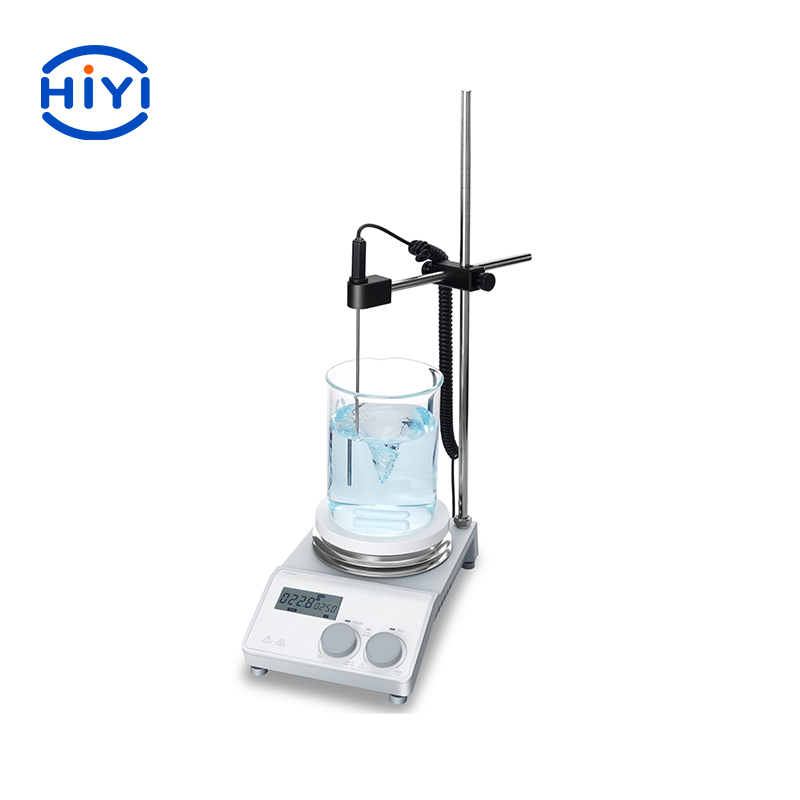

• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Specifications | MS-H-Pro+ |
Work plate dimension | φ135mm(5inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Heating temperature range | Room temp.-340℃, increment 1℃ |
Temperature display accuracy | ±0.1℃ |
Heating power | 600w |
Speed range | 100-1500rpm resolution±1rpm |
Max. stirring quantity[H2O] | 20L |
Speed display | LCD |
Temperature display | LCD |
Motor rating input | 18w |
Motor rating output | 10w |
Max. magnetic bar[length] | 80mm |
Temperature control accuracy | ±1°C(<100℃) ±1%(>100℃) |
External temperature sensor | PT1000 (accuracy ±0.2℃) |
Over temperature protection | 420℃ |
"Hot" warning | 50℃ |
Data connector | RS232 |
Protection class | IP21 |
Voltage | 100~120/200-240V 50/60Hz |
Power | 550w |
Dimension[WxDxH] | 280×160×85mm |
Weight | 2.8kg |
