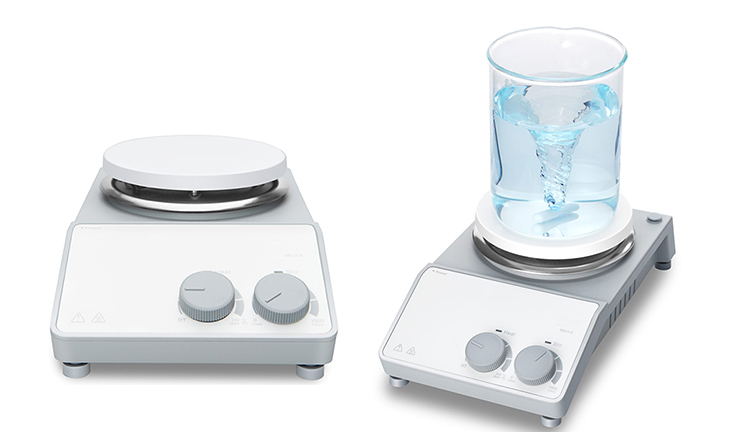

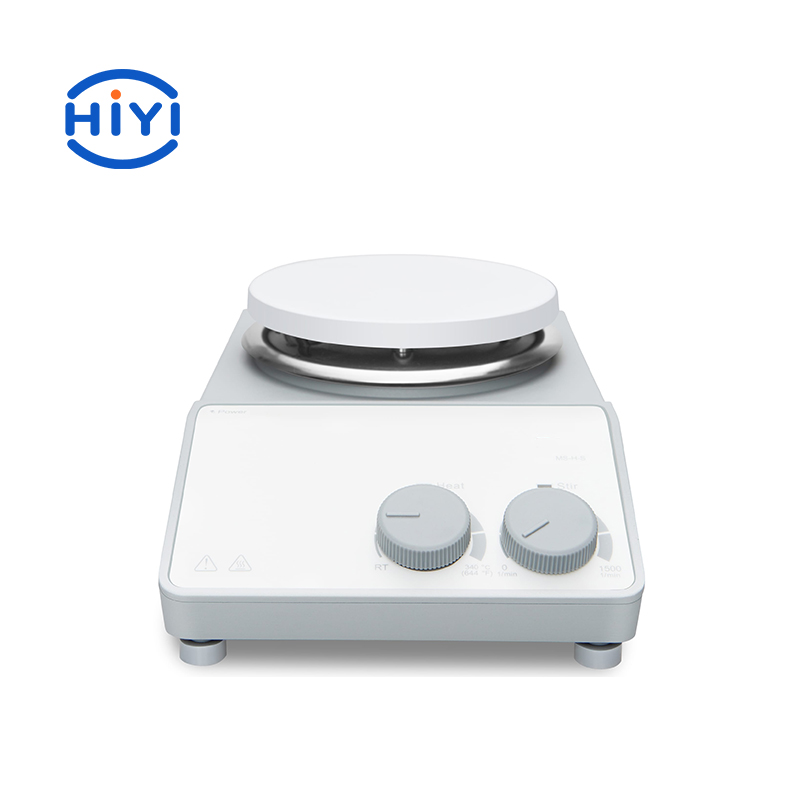

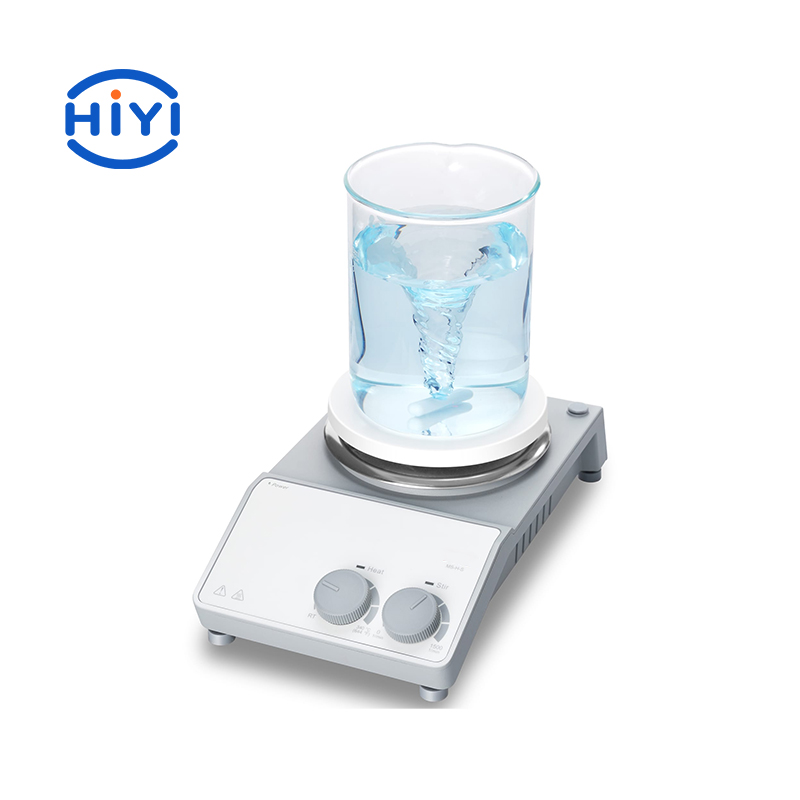

MS-H-S Analog Magnetic Hotplate Stirrer
Features:
• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection

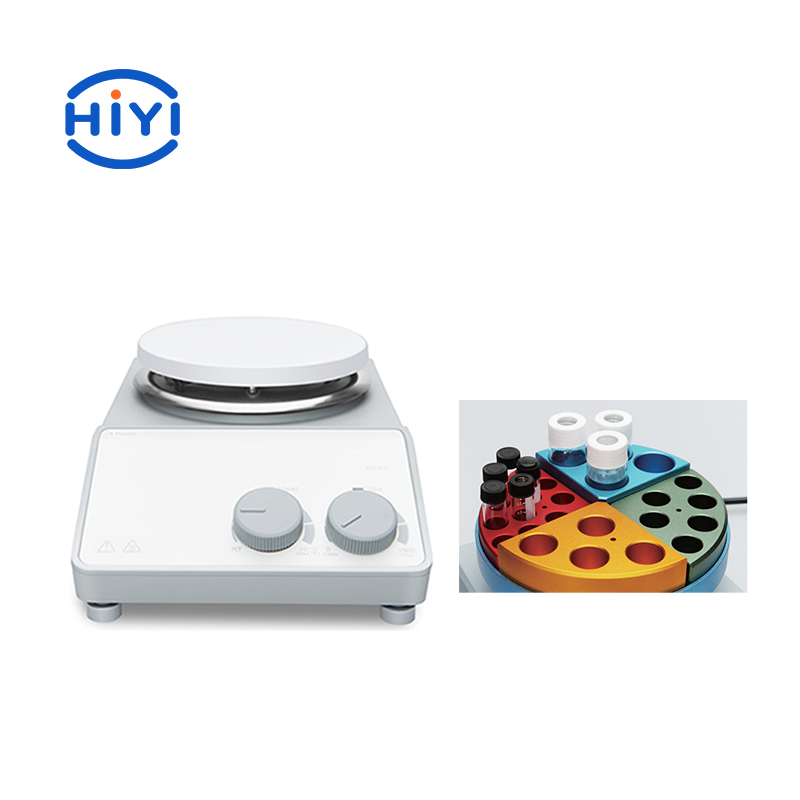

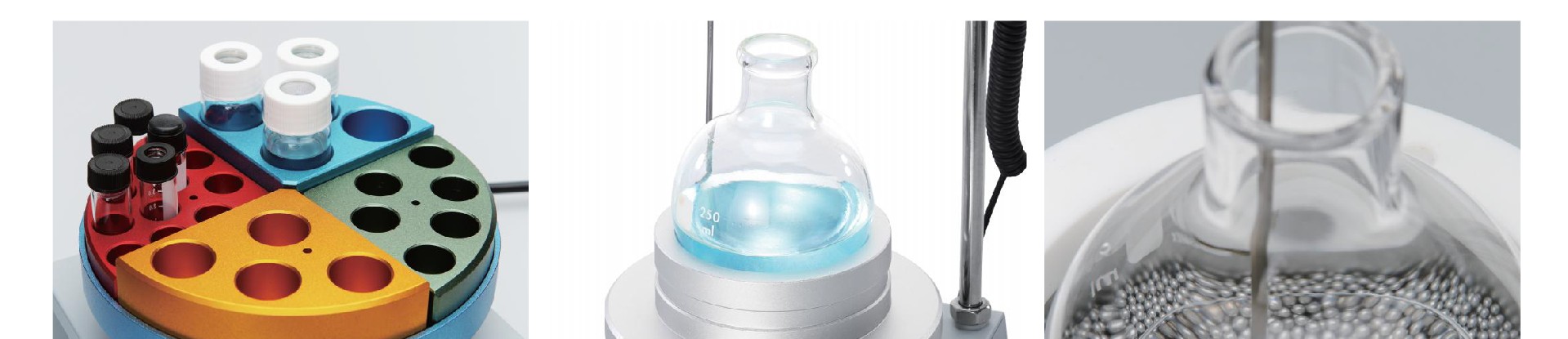

• A wide variety of accessories are available
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Specifications | MS-H-S |
Work plate dimension | φ135mm(5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor rating input | 18W |
Motor rating output | 10W |
Power | 550W |
Heating output | 500W |
Voltage | 100-120/200-240V 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity[H2O] | 20L |
Max. magnetic bar[length] | 80mm |
Speed range | 0-1500rpm
resolution±1rpm |
Speed display | Scale |
Temperature display | Scale |
Heating temperature range | Room temp.-340°C |
Over temperature protection | 420°C |
Temperature display accuracy | ±0.5°C |
Protection class | IP42 |
Dimension[WxDxH] | 160×280×85mm |
Weight | 2.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
