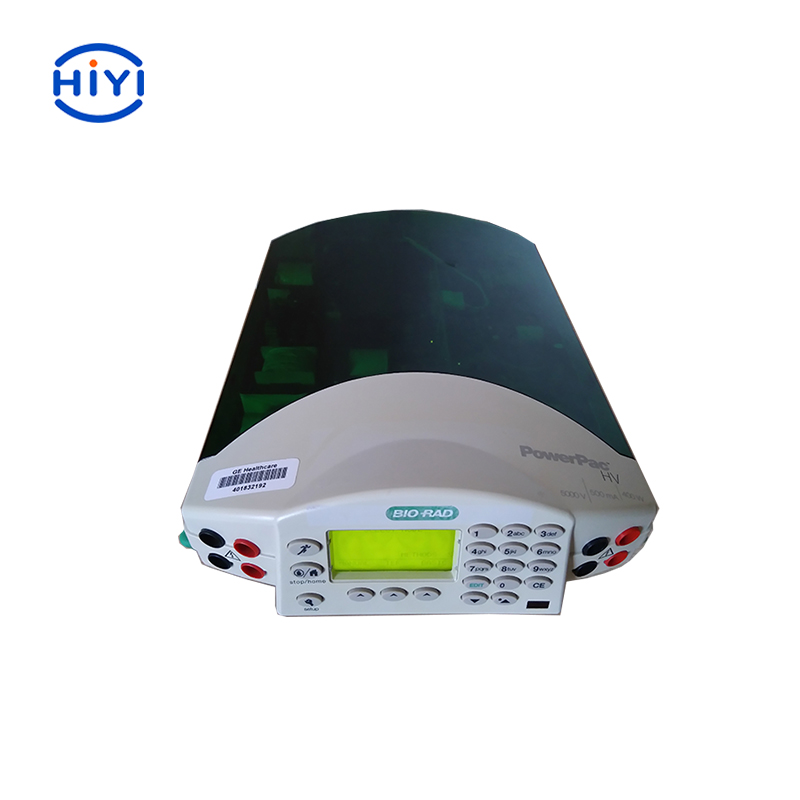

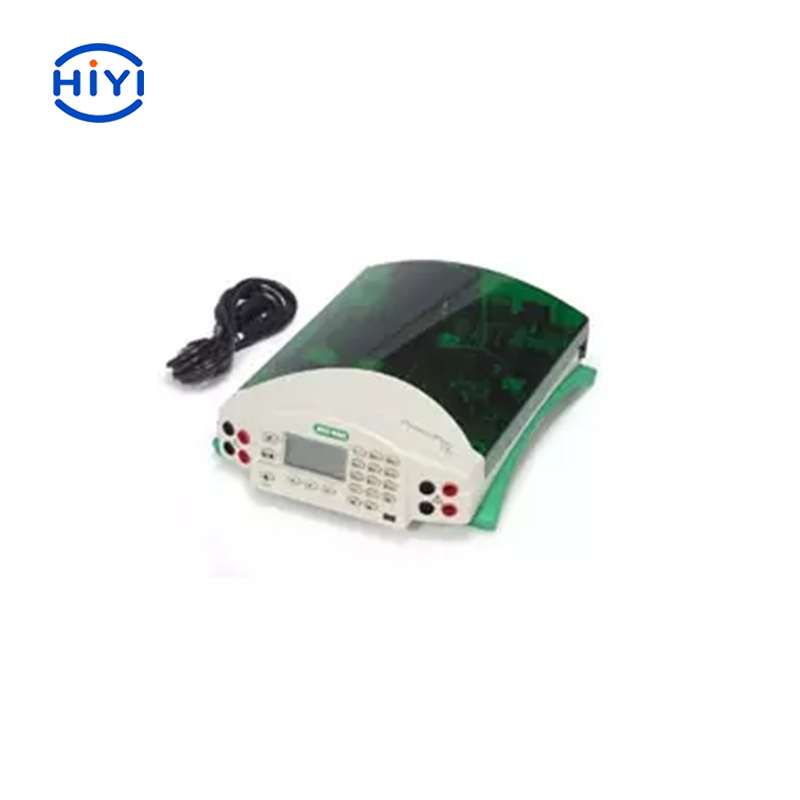

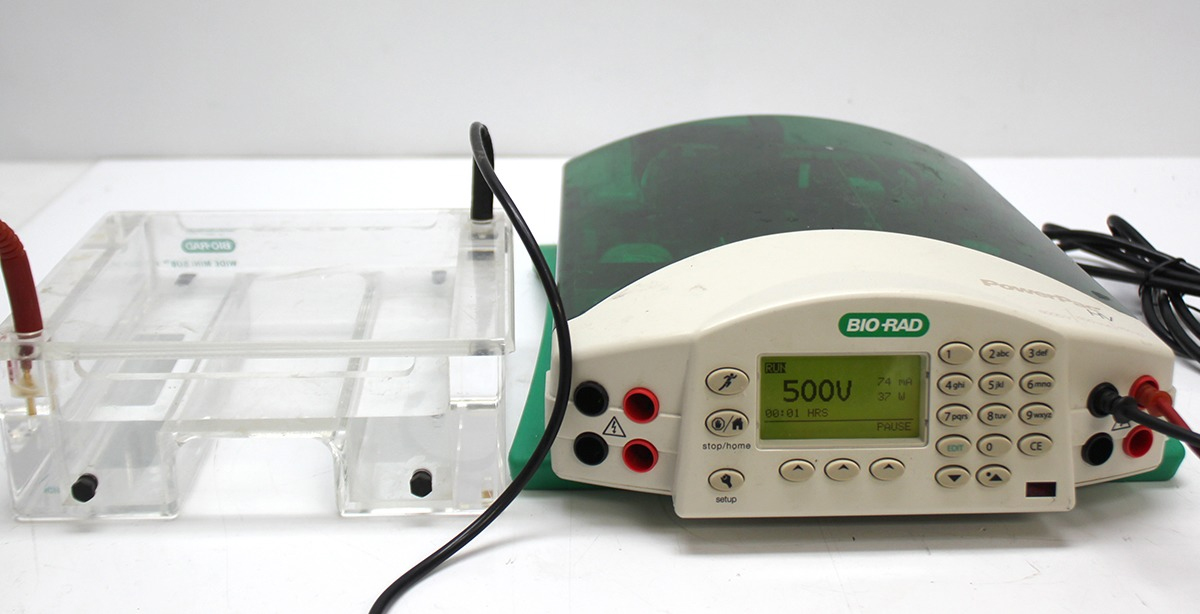

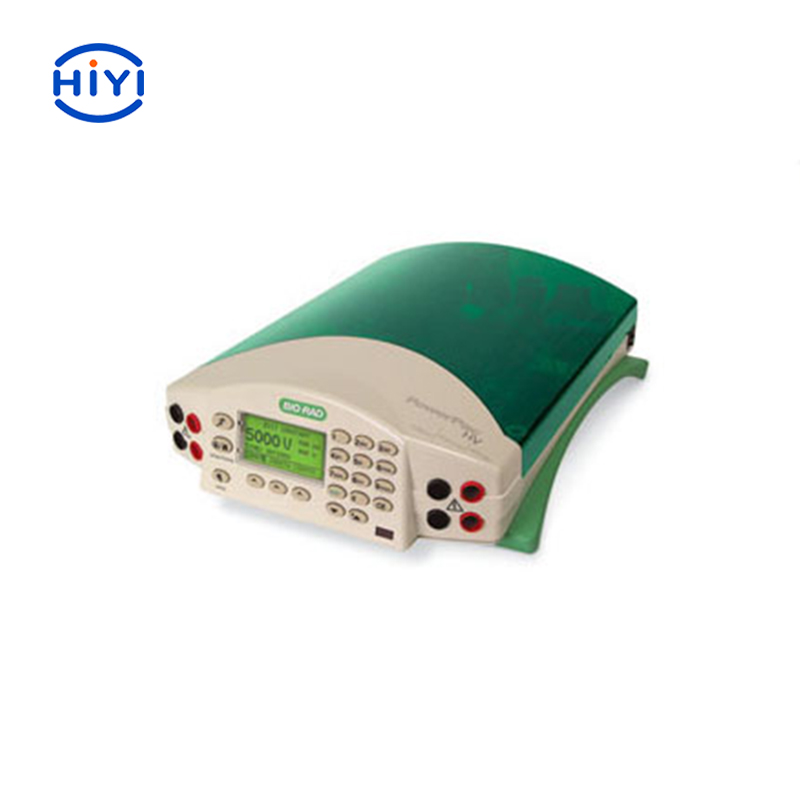

PowerPac HV
High Voltage Electrophoresis Power Supply
The PowerPac HV Power Supply supports an output of 5,000 V, 500 mA, and 400 W, which allows its use for all high-voltage applications, including low-current applications in the microampere range. It is ideal for IEF and DNA sequencing. With 400 W output, the PowerPac HV offers enough power to run the most demanding IEF experiments or up to four DNA sequencing cells simultaneously.
Features and Benefits:
User intuitive programming permits multistep (up to 9 steps) methods and timed runs with a choice of constant voltage, current, or power output.
LCD screen displays all run parameters at once
User optional run completion after an AC power failure
Constant voltage, constant current, or constant power operation with automatic Crossover
Stackable case with adjustable viewing angle via flip down legs
Applications and Uses:
| Output Specifications | Voltage: 20–5,000 V
Current: 0.01–500 mA
Power: 1–400 W |
| Output type | Constant voltage, constant current, constant power, or constant temperature |
| Timer Control | 1 min–99 hr 59 min, fully adjustable |
| Volt-hour control | 99,000 V-hr |
| Pause/resume function | Yes |
| Display | 128 x 64 pixel, yellow-green backlit graphics LCD |
| Programmable Methods | Stores up to 9 basic and 9 IEF methods, each with up to 9 steps |
| Real-time clock | Yes |
| Auto resume after power failure | Yes |
| Temperature control | Yes, via temperature probe; 30–90°C ±2°C |
| Safety features | No-load detection; rapid resistance change detection, ground leak detection, overload/short circuit detection, overvoltage protection, over-temperature protection |
| Operating conditions | 0–40°C; 0–95% humidity in absence of condensation |
| Number of Output Holes | 4 sets in parallel |
| Safety Regulation Compliance | EN61010 |
| IQ/OQ Experimental Programs | Yes |
| Input power (actual) | 90–120 or 198–264 VAC, 50 or 60 Hz, autoswitching |
| Dimensions (W x D x H), cm/in | 7.5 x 34 x 10/3 x 13.4 x 3.9 |
| Weight, kg/lb | 2.85/6.3 |
