Bio-Rad offers a range of mini horizontal electrophoresis chambers to resolve DNA fragments on either hand cast agarose gels or ReadyAgarose precast gels.
Mini-Sub Cell GT Systems
Mini Horizontal Electrophoresis Chambers
These cells include a buffer tank, safety lid with cables, and leveling bubble.

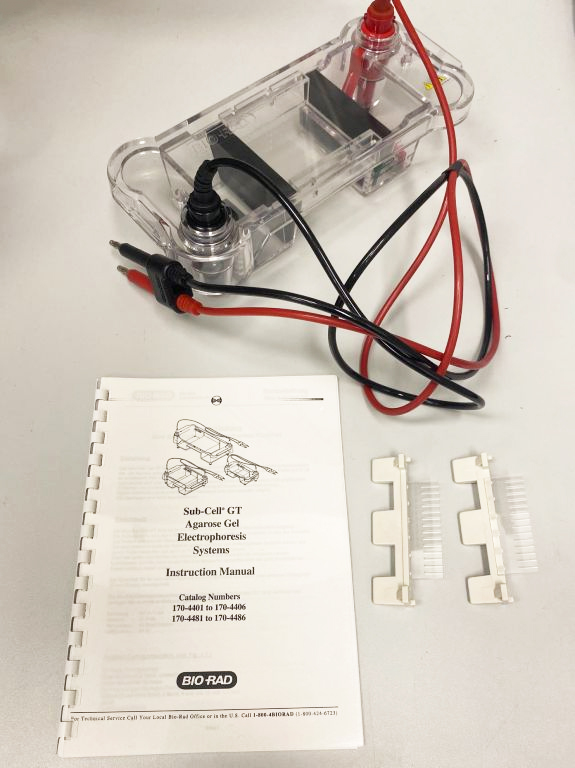

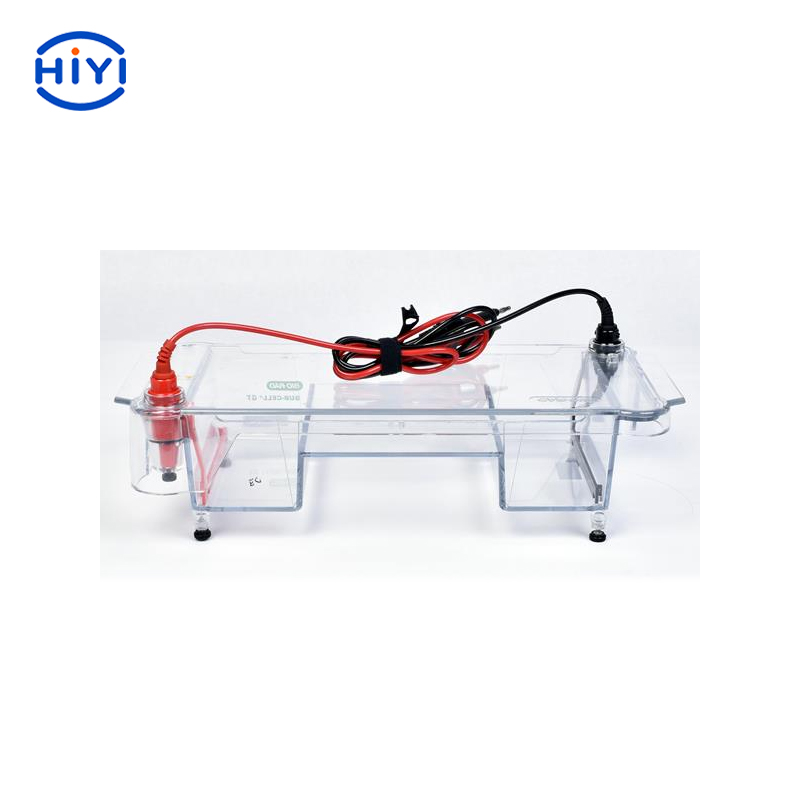

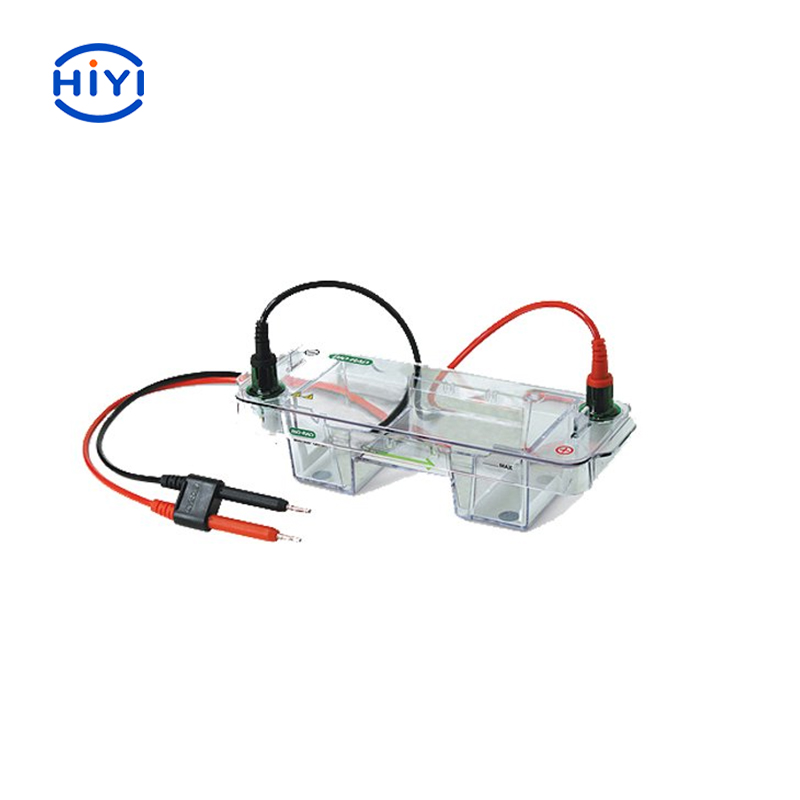

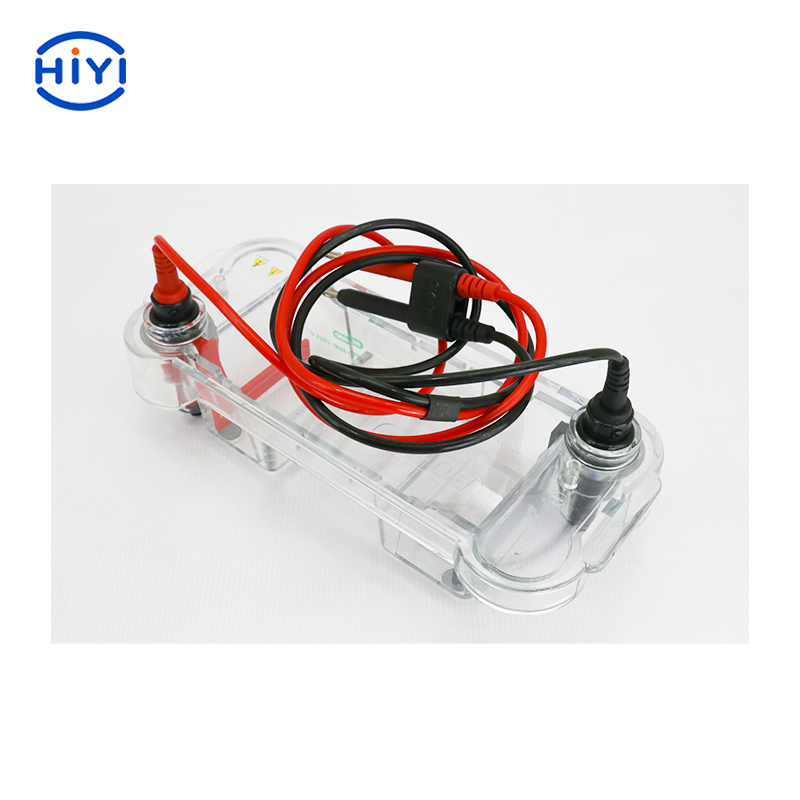

Mini-Sub Cell GT Cell
Fast and flexible, the Mini-Sub cell GT cell is our most popular classroom gel box. The Mini-Sub cell GT cell holds either a 7 x 7 cm or a 7 x 10 cm gel tray. A 10 cm agarose gel poured with two 8-well combs easily accommodates two student teams at a time. At 100 V, this cell resolves DNA fragments from 20–20,000 base pairs in just under 30 min.
Mini ReadySub-Cell GT Cell
The mini ReadySub-Cell GT gel box is similar to the Mini-Sub cell GT chamber but is dedicated to running ReadyAgarose precast gels for economy, convenience, and consistency. ReadyAgarose gel trays lock into the ReadySub-Cell GT chambers so that the gels will not move or float during electrophoresis runs. The mini ReadySub-Cell GT cell does not include casting gates, tray, or combs.
Electrophoresis Bath Dimensions (W x L x H) | 12 x 26 x 6.5 cm |
Gel Tray Size (OD) (W x L) | 7 x 7 cm |
ReadyAgarose Gel Supported or Not | Yes, mini format |
Sample throughput | 8–30 |
Basic Buffer Requirements | 270 ml |
Buffer Recirculation | No |
Bromophenol Blue Migration | 4.5 cm/hr (at 75 V) |
