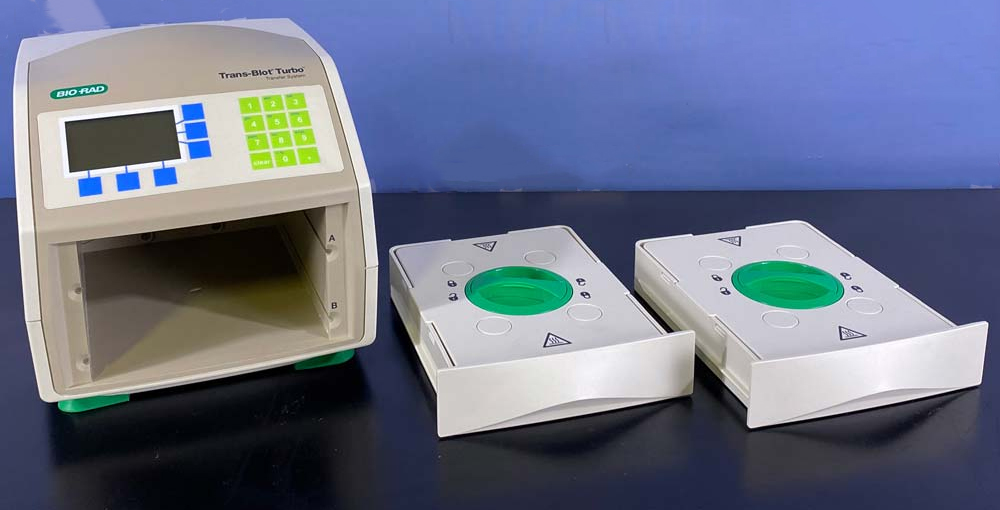

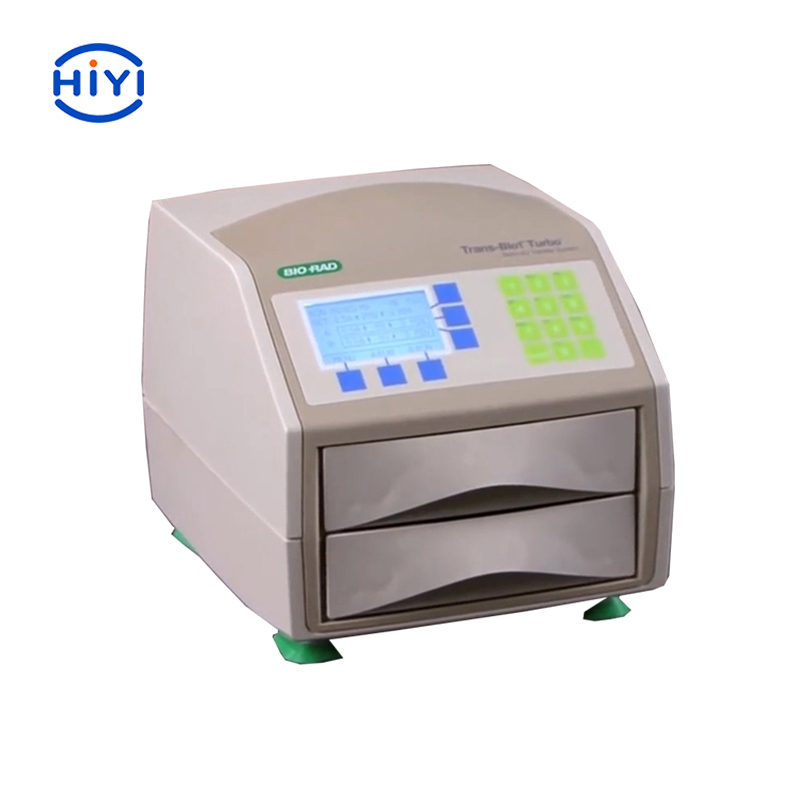

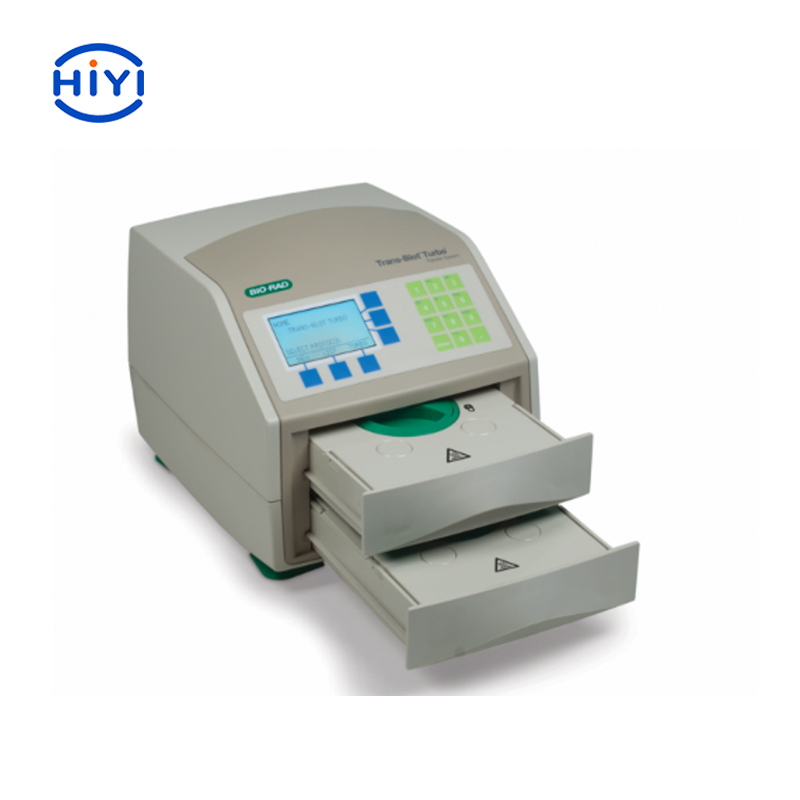

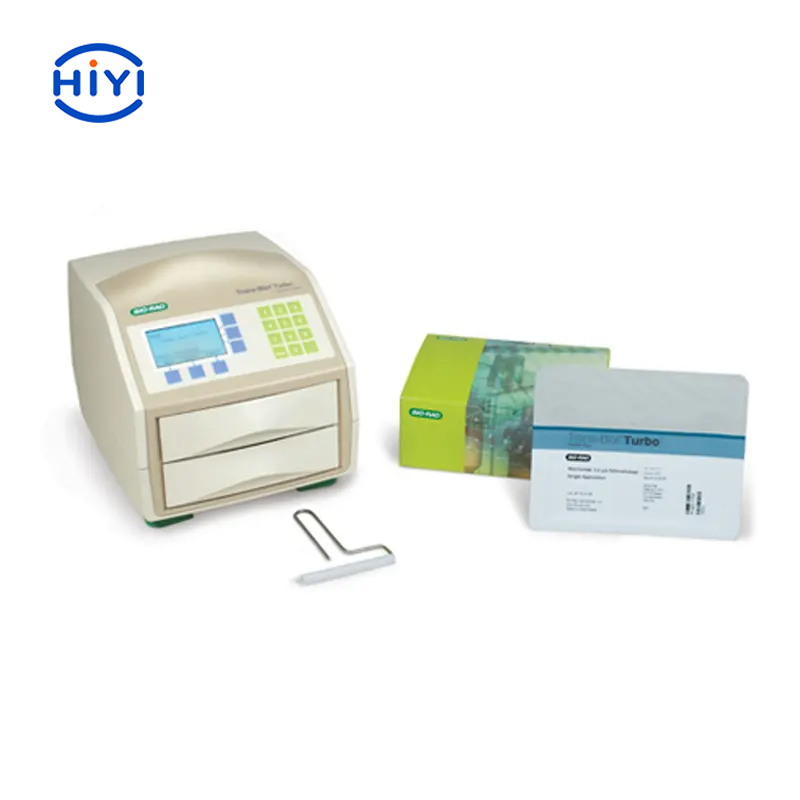

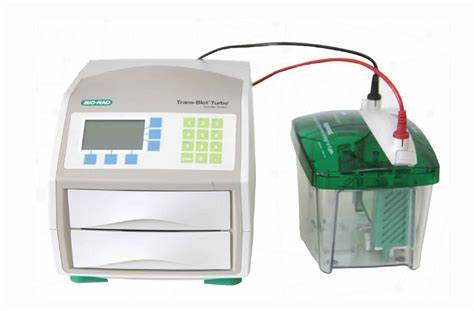

Trans-Blot Turbo Transfer System
Rapid Protein Transfer Apparatus
The Trans-Blot Turbo transfer system combines traditional blotting techniques with modern filter paper and buffers, allowing rapid transfer of proteins from gels to membranes with minimal preparation time. The system integrates a high amperage power supply that directs current between a built-in platinized titanium anode and a stainless steel cathode. This enables highly efficient and rapid transfer in as little as 3 minutes. The entire system is in a ready-to-use format that allows researchers to obtain their results faster and easier, with reproducibility that is difficult to achieve using traditional blotting methods.
Transfer of proteins from polyacrylamide gels to hybridization membranes.
Rapid transfer — transfers mini or midi gels in as little as 3 min
High throughput — can transfer 1–4 mini or 1–2 midi gels in a single run
Greater transfer efficiency — higher transfer efficiency compared to other transfer methods
Flexible design — allows user to customize transfer conditions and is compatible with traditional semi-dry consumables
Environmentally friendly — environmentally safe consumables eliminate disposal cost
| Operating Temperature | 15-31°C |
| Operating and storage humidity | 0-95% |
| Operating Power | 100-240V |
| Transfer Flux | 4 small or 2 medium-sized adhesives; 2 transfer trays designed to run 2 separate transfer programs |
| Transfer Speed | 2 TGX small adhesive transfers in 3 minutes; 4 regular small adhesive transfers or 2 medium adhesive transfers in 7 minutes |
