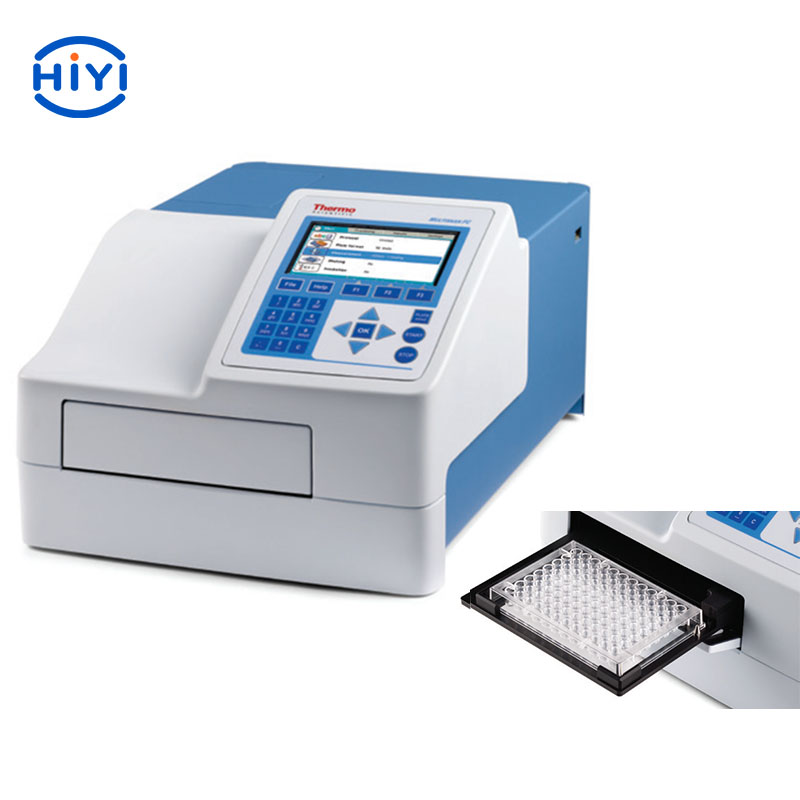

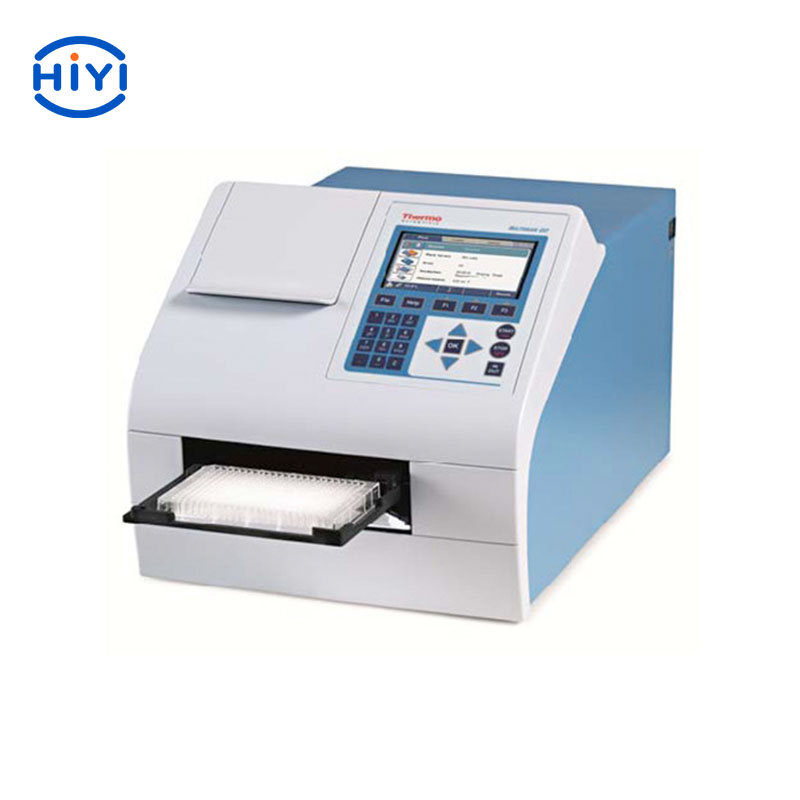

Thermo Scientific Multiskan FC Microplate Photometer

Multiskan FC brings together over 40 years experience of the well-known Multiskan product brand, with features for enhanced usability. The Multiskan FC has a 340–850 nm wavelength range, enabling a wide variety of applications from enzyme kinetic studies to Lowry assays. The instrument provides fast and accurate measurements enabling complete 96-well plate reading in less than seven seconds. The instrument is also equipped with linear shaking as standard. A model with an incubator enables incubation temperatures up to 50°C and the capacity to read 384-well plates. SkanIt software supports optimal use of the instrument with a visual workflow, effortless data analysis and exporting capabilities.

(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Multiskan FC Microplate Photometer

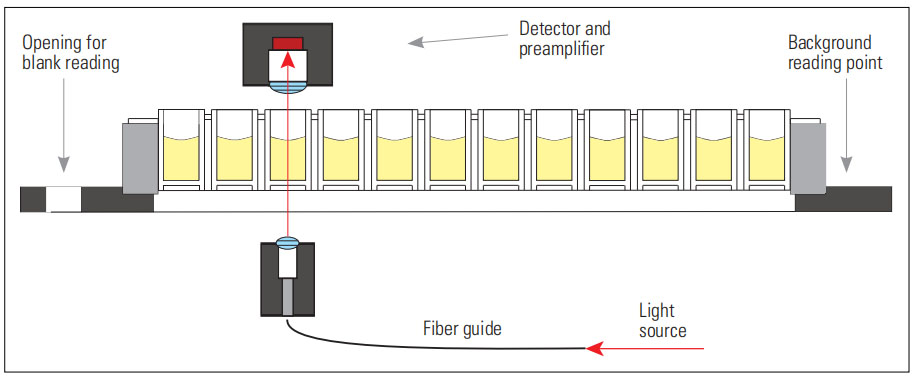

  • Proven performance and reliable day-to-day results through patented optical design and in-built self-diagnostics

  • A broad wavelength range of 340–850 nm for a wide variety of research and routine applications such as ELISA immunoassays, protein quantification, endotoxin, cytotoxicity and proliferation assays, enzyme assays and growth curves

  • Equipped with an eight-position filter wheel with three standard filters, 405 nm, 450 nm and 620 nm, preinstalled

  • A comprehensive range of easy-to install additional filters available for order

  • Fast and accurate measurement of both 96- and 384-well plates for various throughput requirements

  • Shaking and incubation up to 50°C for temperature critical assays

  • Ease of use through the large color screen and a variety of language versions

  • Visual and logical SkanIt software for comprehensive instrument control and data handling

  • Multiskan verification plate available for instrument performance verification

  • Robot compatibility for high-throughput environments




Light sourceQuartz-halogen lamp 6 V/10 W
Wavelength range340–850 nm
Filters8-position filter wheel, the instrument is delivered with the following standard filters installed: 405 nm, 450 nm and 620 nm. Additional filters can be ordered separately.
Half-bandwidth of filters3–9 nm
Read-out range0–6 Abs
Linearity (405 nm)0–3 Abs, ± 2%, 96-well plate
0–2.5 Abs, ± 2%, 384-well plate
Resolution0.001 Abs
Accuracy (405 nm)± 1% (0–3 Abs) or ± 0.003 Abs, which ever is greater
Precision (405 nm)CV ≤ 0.2% (0.3–3 Abs)
Measurement speed7 s, 96-well plate, fast mode
13 s, 96-well plate, normal mode
13 s, 384-well plate, fast mode
34 s, 384-well plate, normal mode
Optional incubatorTemperature range from ambient + 4°C up to 50°C
ShakingLinear shaking with three modes: slow, medium and fast
Robotic compatibilityYes
DisplayHigh contrast color display (480 x 272 dots)
User interfaceInternal software or PC control with SkanIt software
Internal memory (standalone)At least up to 99 assay protocols and 100 test results, 96-well plate
External printer typeHP PCL5, PCL5e or PCL5c
CommunicationUSB for computer connection
USB memory stick position for data export
USB for external printer
Mains input100–240 V (50/60 Hz)
Power consumptionMax. 100 VA, standby 8 VA
Overall dimensions (H x W x D)220 x 290 x 400 mm
8.7 x 11.4 x 15.7 in.
Weight8.5 kg (18.7 lbs.)
Conformity to regulations2004/108/EC (Electromagnetic Compatibility Directive, EMC)
2006/95/EC (Low Voltage Directive)
2006/42/EC (Machinery Directive)
FCC Part 15, Subpart B/Class B
2011/65/EU (RoHS Directive)
2012/19/EU (Waste of Electrical and Electronic Equipment)
98/79/EC (In Vitro Medical Device)*
PC requirements for SkanIt software
Minimum system requirements
Operating system
