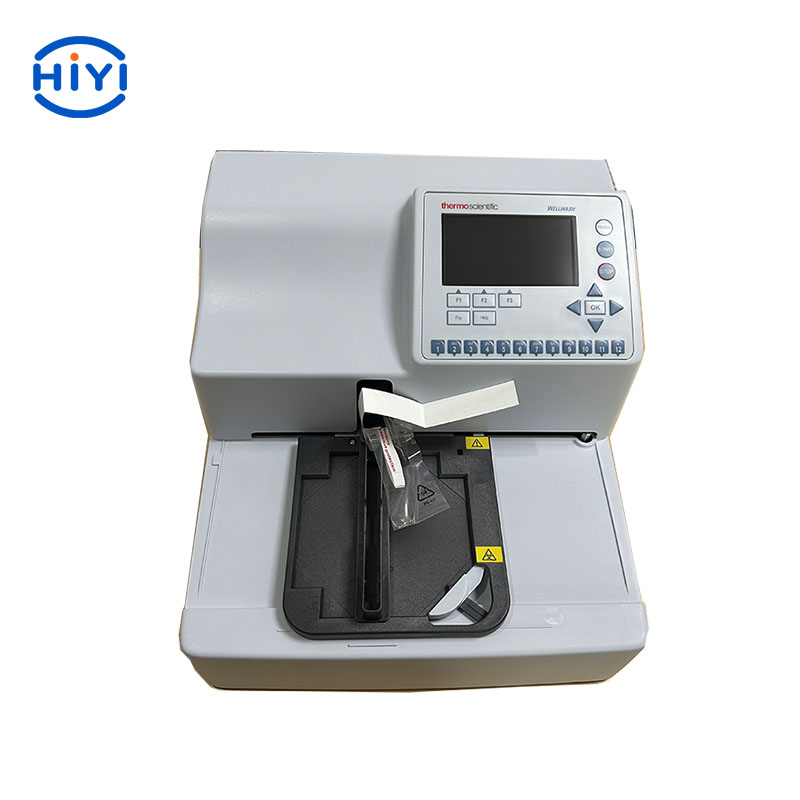

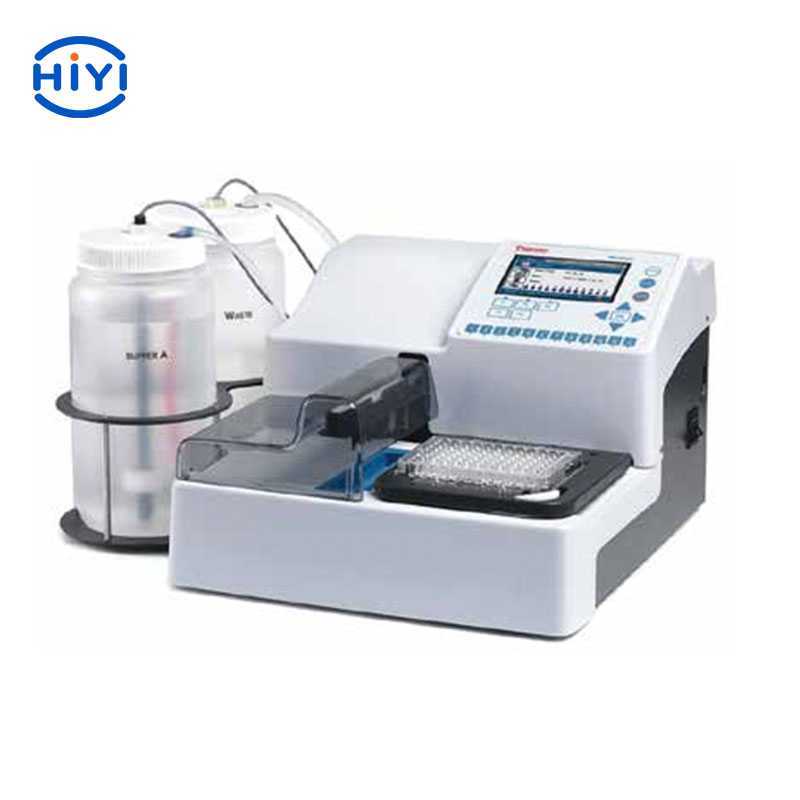

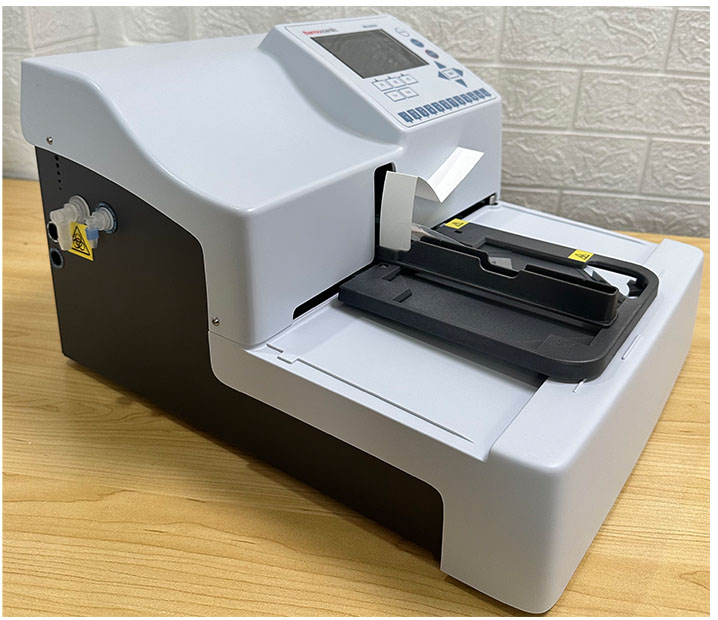

Wellwash and Wellwash Versa Microplate Washer
Reliable and easy-to-use Thermo Scientifi c™ Wellwash™ microplate strip washers provide secure washing performance for routine and research ELISA applications. Wellwash washers feature a large color display with graphical user interface, local language versions, and non-pressurized bottles for optimal ease of use, convenience, and safety.
Features:
Wellwash and Wellwash Versa washers offers:
• Easy setup of wash protocols through a large color screen and a visual user interface
• A sweep mode to ensure an extremely low residual volume in the well, resulting in excellent washing performance and reliable ELISA results
• Adjustable wash parameters, such as dispense and aspiration height and aspiration speed, for optimal washing performance
• A USB port for transferring protocols between several washers and for printing reports and log files

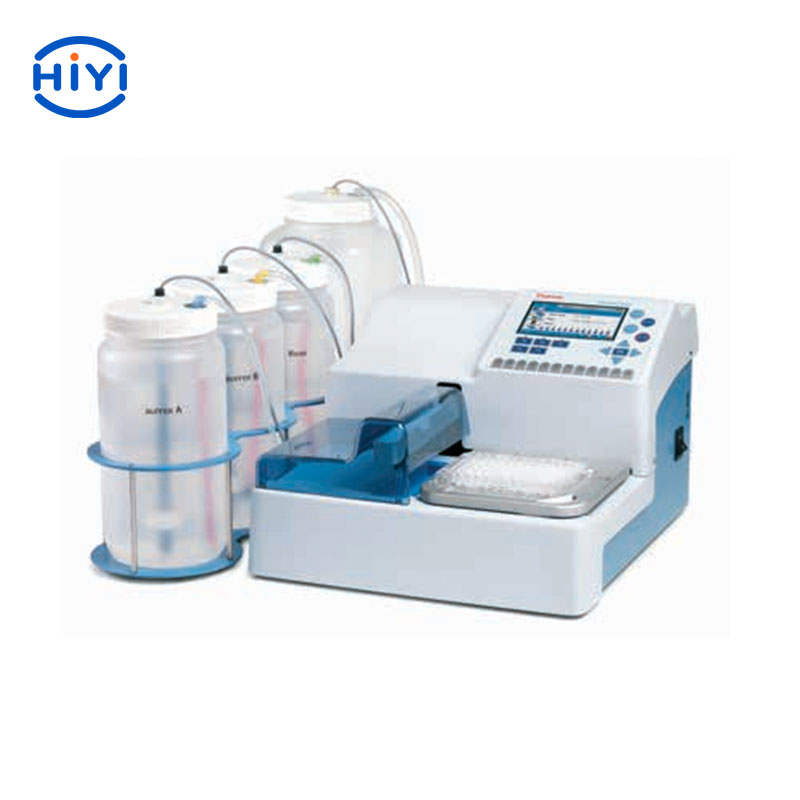

In addition, the Wellwash Versa washer offers:
• Very fast and simple instrument setup and use with color-coded tube fi ttings and liquid-level sensor cables
• Wide selection of wash heads for 96-well plates and 1 x 16 wash head for 384-well plates
• Specially designed 2 x 8-cell wash head for gentle washing of cells in a 96-well plate
• Two wash bottles and one rinse bottle for increased fl exibility
• Easy connection to automation systems
Application:
| Item | Wellwash | Wellwash Versa |
| Number of wash buffer channels | 1 pcs | Up to 3 pcs |
| Bottle | 2 litre wash bottle, 2 litre waste bottle | 2x2 litre wash bottles, 1x2 litre rinse bottles, 4 litre waste bottles |
| Head wash configuration | 1x8 and 1x12 wash heads | 1x8, 1x12, 2x8, 2x12 and 1x16 wash heads, 2x8 cell wash heads |
| Plate type | 96 well plate | 96, 384 well plates |
| Pump type | Peristaltic pump | Peristaltic pumps |
| Wash volume | 50-1000µL | 50-1000µL (96), 20-300µL (384) |
| Pre-wash volume | 5-100mL | 5-100mL |
| Rinse volume | 5-100mL | 5-100mL |
| Volume of dispensing liquid | 50-400µL | 50-400µL (96), 20-120µL (384) |
| Residual volume | <1.5µL | <1.5µL |
| Display screen | Resolution 480x272 / High contrast colour display | Resolution 480x272 / high contrast colour display |
| Data connection | USB port | USB port |
| Automation compatible | No | Yes (RS-232C) |
| Dimensions (H x W x L) | 345x385x240mm/13.6x15.2x9.4in. | 345x385x240mm/13.6x15.2x9.4in. |
| Weight | 9kg(20 lbs.) | 9kg(20 lbs.) |
