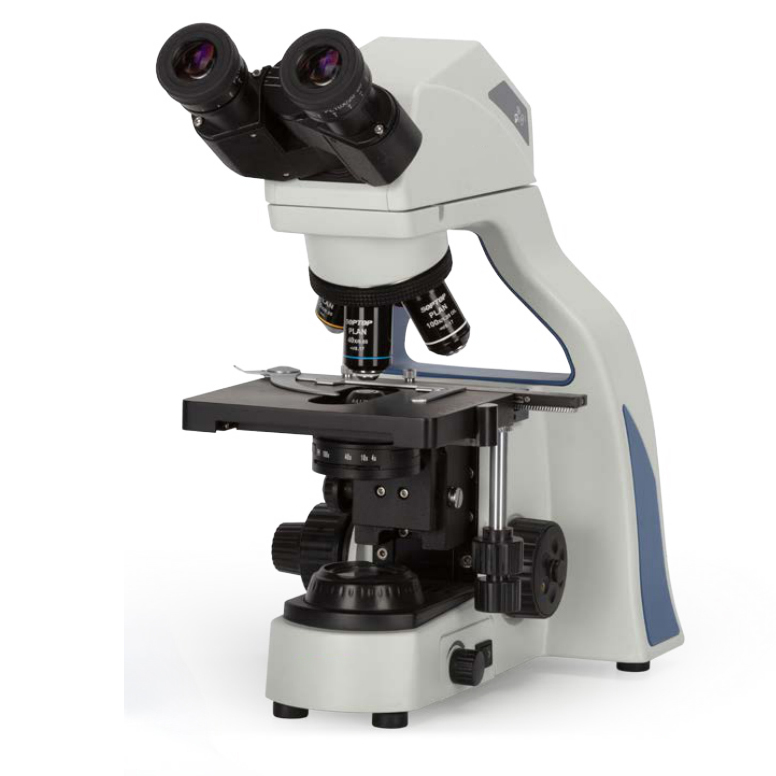

YEX21 Biological Microscope
YEX21 with infinite chromatic aberration correction optical system and excellent compound eye lighting system.
YEX21 can get uniform illumination, clear and bright images under magnification.Excellent reliability and durability, suitable for high-intensity use in the education market.
| Optical system | Infinity chromatic aberration correction optical system |
| Observation tube | The hinged binocular head is tilted at 30°, the interpupillary distance adjustment range: 54-75mm |
| The hinged trinocular head is tilted at 30°, the splitting ratio:binocular 100%,binocular:trinocular=80%: 20% |
| Objective lens | Infinity plan achromatic objective 4X, 10X, 20X, 40XS,100XSO |
| Stage | 140X132mm double-layer composite mechanical mobile platform, moving range: 76×50mm |
| Condenser | NA1.25 Koala Illumination Condenser Group (with plug-in phase contrast and dark field accessory interface) |
| Photographic device | Photographic tube (with PK mount), 3.2X photography eyepiece |
| Camera device | 0.35X/0.5X/1.0X C type camera connector |
