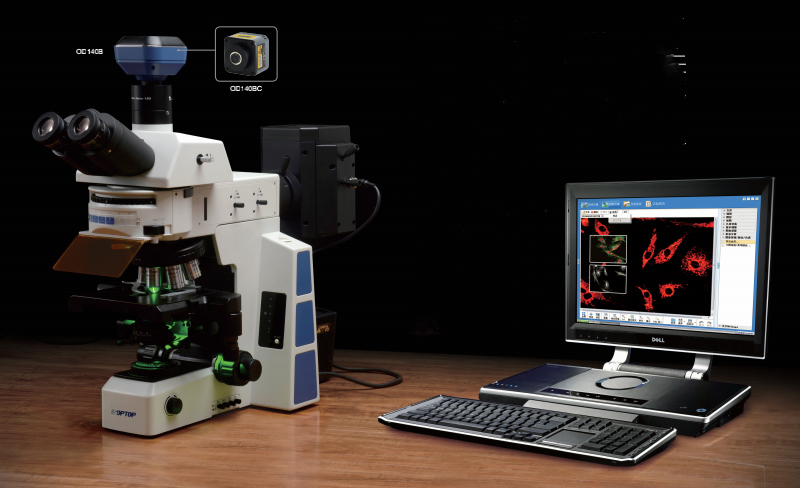

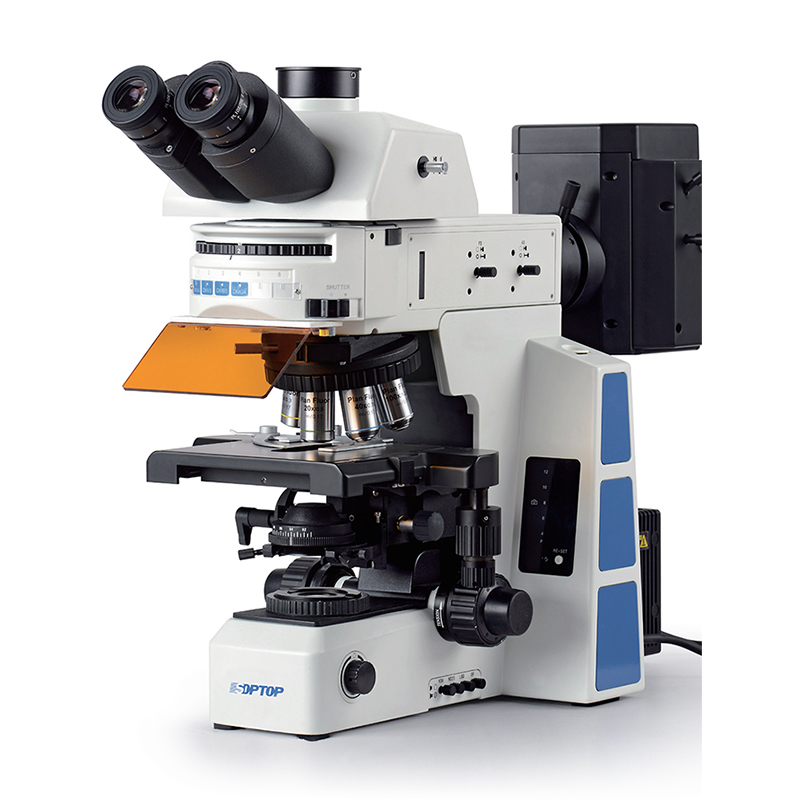

YRX50 Large Numerical Aperture Biological Microscope

YRX50 Large Numerical Aperture Biological Microscope

Large stage with adjustment in either hand:

• In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.

Modular frame, improving the system compatibility:

• YRX50 with modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.

Viewing head with multi-splitting ratio:

• YRX50 viewing head is designed of multiple options for splitting ratio. with wide beam imaging system,26.5mm super wide filed of view is available.

Highly sensitive coaxial coarse and fine adjustment:

• Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus but also precision measurement is available.

Multifunctional reflection illumination:

• YRX50 reflection fluorescent illumination, maximum 6 fluorescence filters can be assembled at the same time. Filters are placed in a rotary table for convenient switch. High precision and stable rotary table and high performance imported filter ensures a drift-free image.


Power control system for mercury lamp:

• New digital power control system with operating time and current value, clearly shows the working state of the mercury lamp.


Two power supply systems, providing multiple choices of high quality illumination:

• New developed 100W EHV DC mercury lamp house with improved thermal cycle greatly reduces the surface temperature of the lamp house and avoids the scald risk during operation. The filament center is easily adjustable.
