Product Parameter Determination & Monitoring, For Inline; Easy calibration; Short measurement time; No chemical waste; Easy handling; Biotech; Dairy products; Total solids; Protein & fat content; Pharmaceutical products
Emulsions Or Suspensions Production line/Inline
Product Parameter Determination & Monitoring

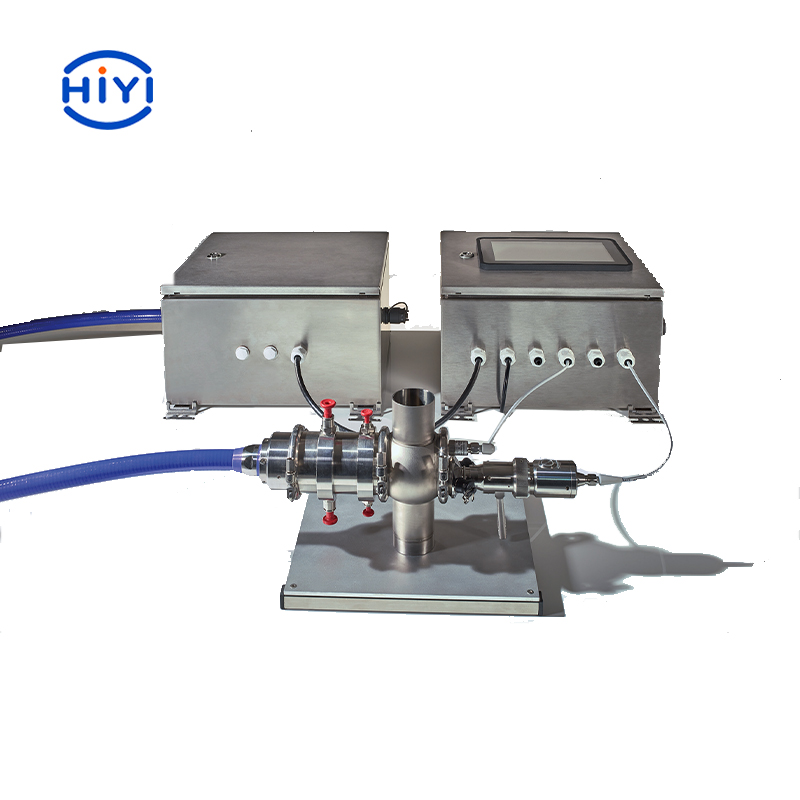

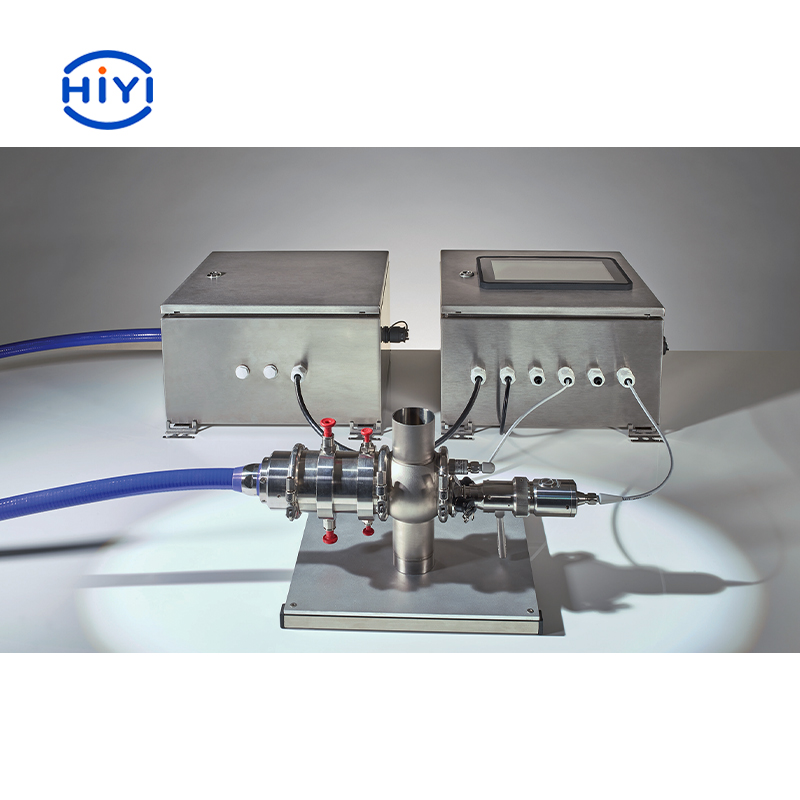

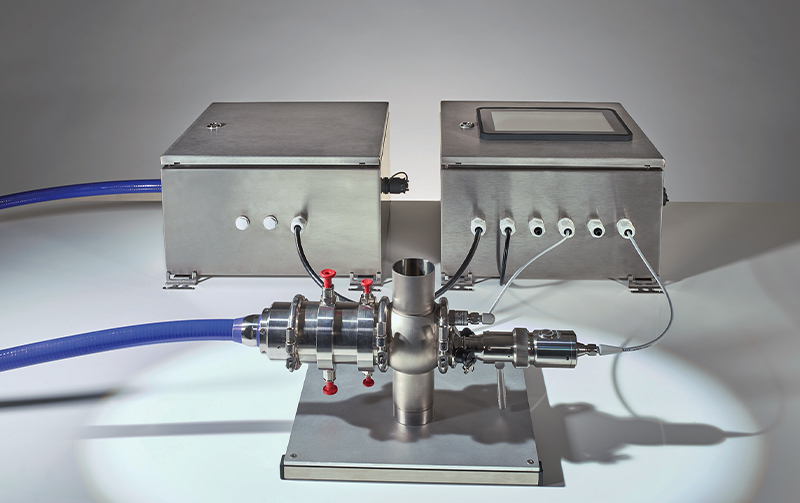

The LUMiFlector® Inline is directly connected into the production line of your product in order to monitor the calibrated product parameters simultaneously – either for quality or production control. The process interface is a standardized VARINLINE® housing, available in different pipe sizes and connection types, suitable for the measurement site. Connect the LUMiFlector® to your control room via industrial standard interface (analog signal , 4 -20 mA) for monitoring or controlling tasks. Fast (< 20 s) and efficient longterm automatic monitoring and recording of product properties.
Features:
• Broad range of applications
• Fast monitoring
• Automatic process control
• Efficient screening and QA
• No preparation of the sample
• No use of chemicals
• No direct contact of sensors with product
• Easy to clean & easy to handle
• Self-training
• Low maintenance
• Stable and robust system
Application:
• Quantification of specification of products based on suspensions or emulsions
• Characterization of product properties resulting from dispersibility, homogenization, dilution
• Automatic production monitoring and control
• Process optimization
• Milk standardization
• Fast quality assessment
• Large variety of liquid and semi-liquid products, i. e. dairy products, enteral nutrition, feed products, starch, soybean products, cells, yeast, suspensions, beverages, spicy sauces, dips, ketchup, slurries
• Biotechnology
• Determination of product specifications: fat, protein, total solids, droplet & particle size
Measurement parameters | |
Measuring principle | Scattering, Refraction, Fluorescence |
Measurement time | < 20 s |
Quantities | concentration of dispersed solids and/or liquid particles; customer-defined values |
Sample Type | Emulsions, Suspensions |
Technical specifi cations | |
Light source(s) | UV-VIS-NIR |
Measurement cup | Stainless steel |
Calibrations (on-board) | UHT / ESL milk (fat, protein, total solids) |
Ambient temperature | 10 to 35 °C |
On-board data | up to 8 products programmable, 4 measurement quantities per product |
Dimensions (W x H x D), weight | Sensor: 10 x 10 x 20 cm3 , 1.5 kg |
Spectrometer: 38 x 38 x 23 cm3 , 8 kg | |
Industrial PC: 38 x 38 x 23 cm3 , 9 kg | |
Process interface VARINLINE®: DN 25-150 x 25 cm3 ,1.5 kg (to be ordered separately) |
