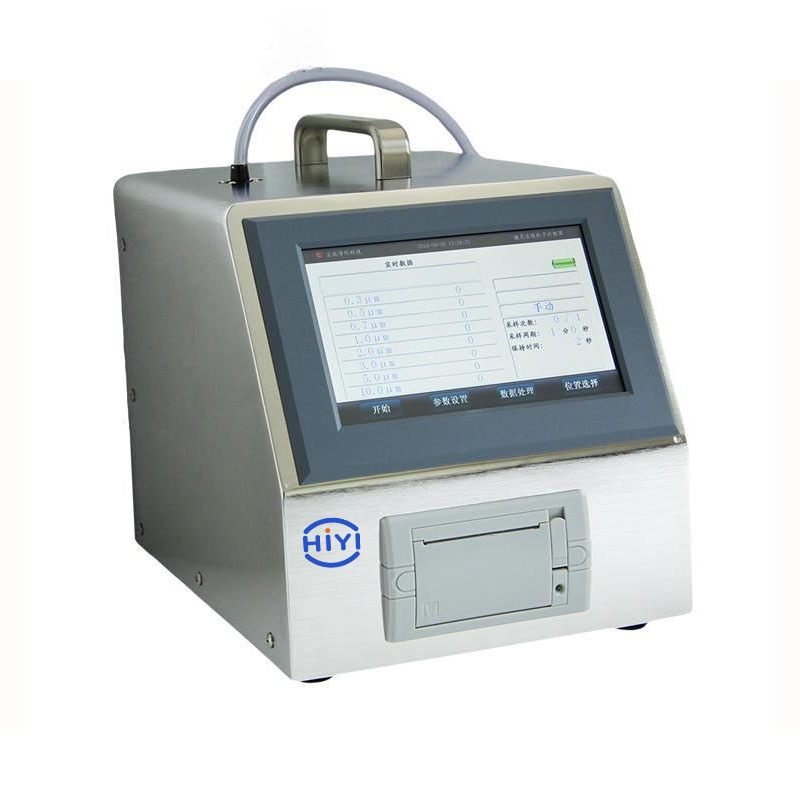

HiYi B330 Portable Air Particle Counter

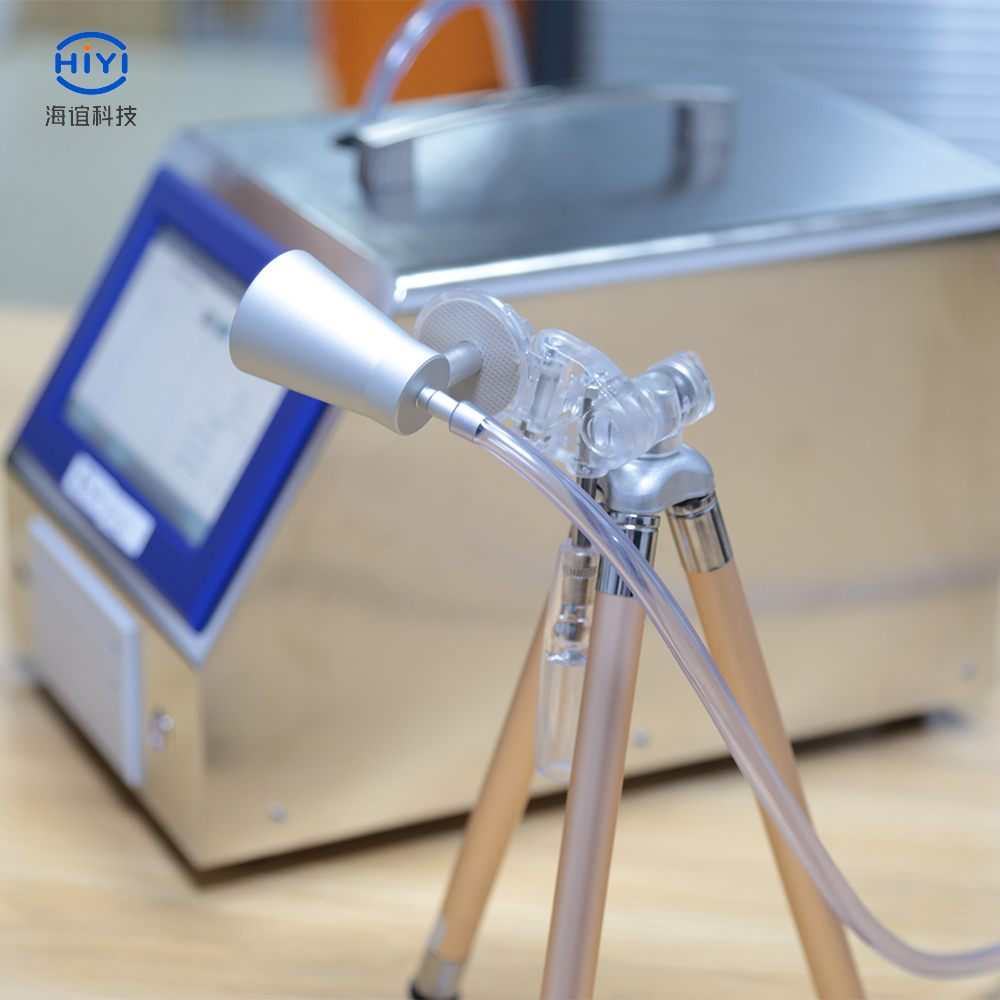

B330 Portable Particle Counter offers best-in-class features and versatility. The Model B330 provides a 1.0 CFM (28.3 L/min) flow with 0.1 μm sensitivity. Compatible with accurate ventilation probes that measure air velocity/temperature/RH, etc. Particle count data can be conveniently viewed on screen, downloaded using Software, or printed directly to the integrated printer.
B330 could generate pass/fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E, via the onboard printer. Multiple particle counter configurations can be conveniently stored and uploaded as needed.
This product can be used as a stand-alone particle counter or integrated into a facility monitoring system like FMS Software. The Model B330 complies with all the stringent requirements set forth in ISO 21501-4.
Features
0.5 to 25 μm size range
Up to Eight channels of simultaneous data
1.0 CFM (28.3 L/min) flow rate
Complies with all requirements of ISO 21501-4
Data storage: 250 zones, 999 locations, and 5,000 samples
USB, USB Storage Device and Ethernet data transfer
Industry’s loudest audible alarm
Easy icon-driven touch screen operation
Onboard reports for ISO-14644-1, EU GMP Annex 1, and FS209E
External certification reports via USB Cable
Allows storage and recall of specific Recipes and Zone configurations
Displays up to three environmental parameters
Stainless steel enclosure
Lightweight
Stand-alone or integrate into a facility monitoring system
| Model | ZLJ-B1030 | ZLJ-B550 | ZLJ-B330 |
| Size Range | 0.3 - 10.0 µm |
| Channel Sizes | 8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm |
| Flow Rate | 100L/min | 50L/min | 28.3L/min |
| Concentration Limits | 35,000 particles/L |
| Light Source | Laser diode (30,000 hours mean time between failure) |
| Dimensions(mm) | 223*348*250 | 220*285*260 | 220*285*260 |
| Weight(Kg) | 7.1 | 9.0 | 8.5 |
| Sample Period | 1 Sec~5999 Sec(5L-5000L) |
| Calibration Count Modes | Meets ISO14644 calibration ,GMP-2010 |
| Date Storage | 2000 samples |
| Communication Modes | WIFI, RS-485,Ethernet, USB,Software |
| Environmental Sensors (Optional) | Temperature, Relative Humidity, Air Velocity, Differential Pressure, Battery or others |
| Touch Screen Display | 9.1 inch (23 cm) color TFT touch screen display |
| Reports | Pass/fail report wizard for ISO-14644 and FS-209E report formats |
| Alarms | Integrated alarm buzzer. Alarms on counts, low battery (optional) |
| Enclosure | Stainless Steel |
| Power | 220V±10%,50Hz±2Hz | 220V±10%,50Hz±2Hz |
| Battery | built-in lithium battery | Optional Li-Ion, removable & rechargeable (typical recharge time 5 hours) |
| Languages | English/Chinese/Customize |
