0.3um 0.5um 1.0 CFM Air Particle Counter For Clean Room / Pharmaceutical
Product Details:
Place of Origin: China
Brand Name: HiYi
Certification: CE
Model Number: Remote Particle Counters FMS systemPayment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1000-3800/set
Packaging Details: alloy case
Delivery Time: 5-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/set/month
<1 Count Per 5 Minutes (per ISO 21501-4 And JIS B9920)
Flow Rate:
1.0 CFM (28.3 L/min) Or 0.1 CFM (2.83 L/min)
Sampling Time:
Real-time
Vacuum Source:
Internal Pump Or External Pump
Power:
110~220V±10%,50Hz±2Hz
High Light:
0.3um Air Particle Counter,
0.5um Air Particle Counter,
1.0 CFM Air Particle Counter
FMS Cleanroom Monitoring System is mainly used for real-time monitoring environmental parameters in clean rooms and completing the functions of data storge and management.
FMS Cleanroom Monitoring System can realize real-time monitoring of cleanliness,temperature and humidity,pressure difference,wind speed and other parameters of clean room.
FMS Cleanroom Monitoring System is an advanced reliable and user-friendly monitoring software suite that features a truly distributed architecture. High availability databases and hot standby system fail over funtionality assures compliance and peace of mind.

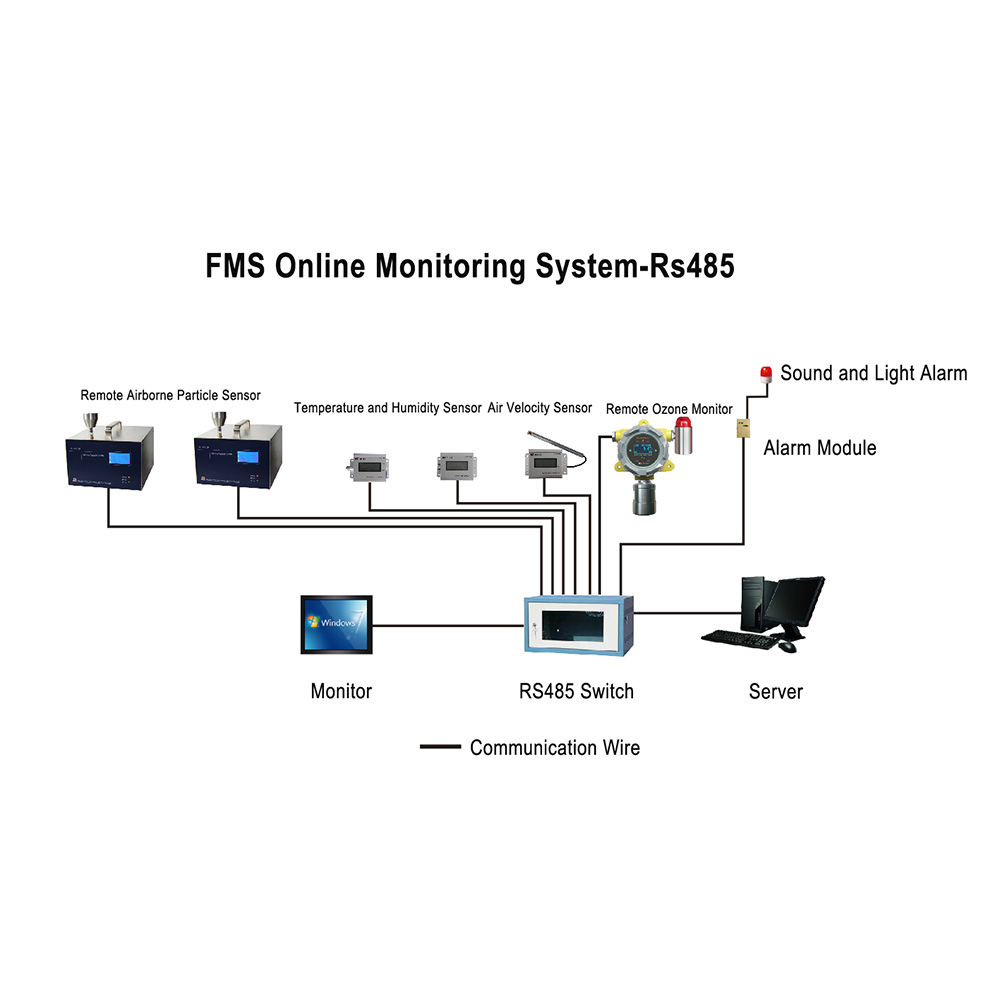

Standard inputs include: Remote particle counters, air sampler, temperature/humidity, differential pressure, Ozone analyzer and air velocity inputs. Any device that has a liner analog output can be integrated into the system.

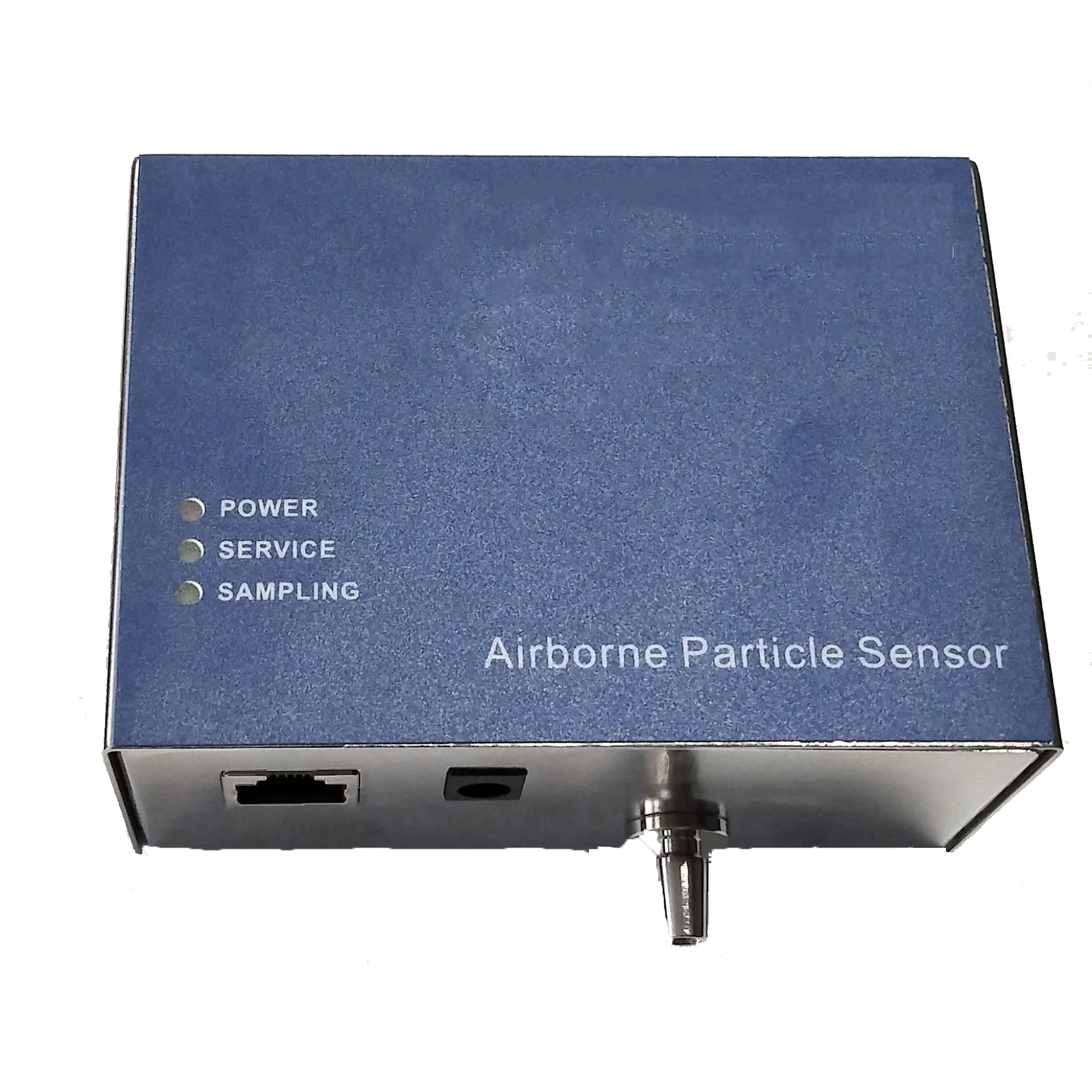

Airborne Particles Sensor
up to 6 channel:0.3μm~25 μm
Count Efficiency
50% (compliant with JIS)
Light Source
laser diode
Vacuum Pump
built-in pump
Power
220 V ±10%, 50 Hz ±2 Hz
Monitoring Range
ISO5-ISO9
Sensor Dimension
120 x65 x 132 (mm)
Real- time Biological Monitor
Flow rate
28.3L/mim
Collection efficiency
≥98%
Sampling head size
100×50mm
Sampling head material
316L stainless steel
Sampling head weight
1.6Kg
Operation Temperature
0-50°C
Operation Humidity
<85%RH
HiYi Facility Monitoring System
Perfect for monitoring of large cleanrooms or critical environments, FMS Series is available with BACnet connectivity to help meet all your automation system integration needs.
The FMS Series Remote Particle Counters are the most feature-advanced remote particle counters available.

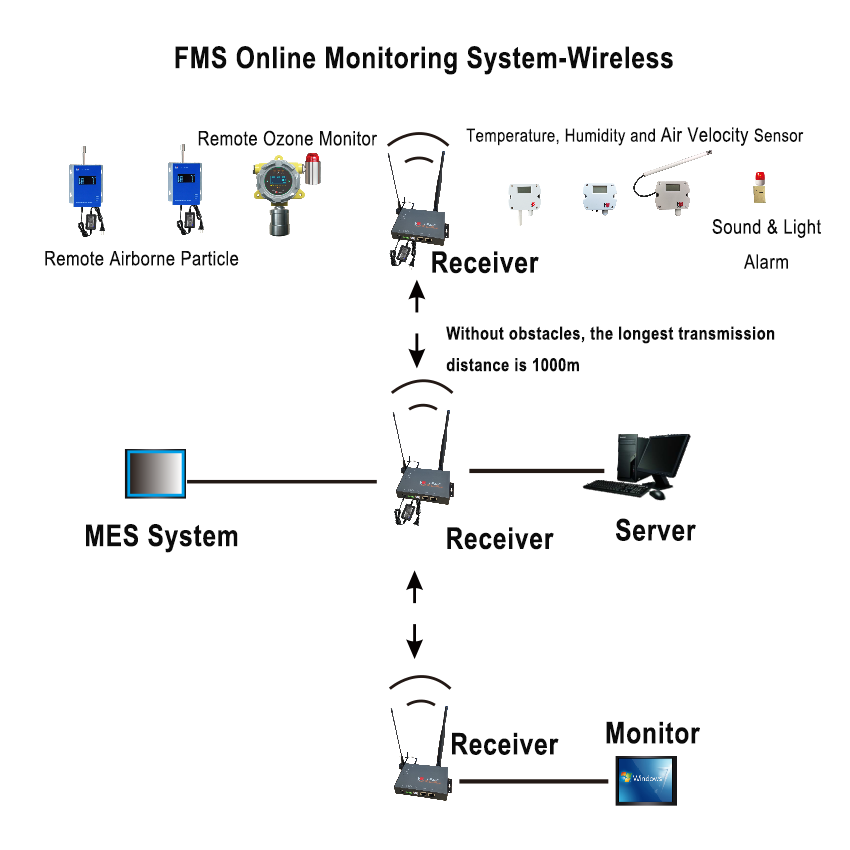

Integration is easy into a building automation and cleanroom management system via Ethernet or (optional) Wireless.
