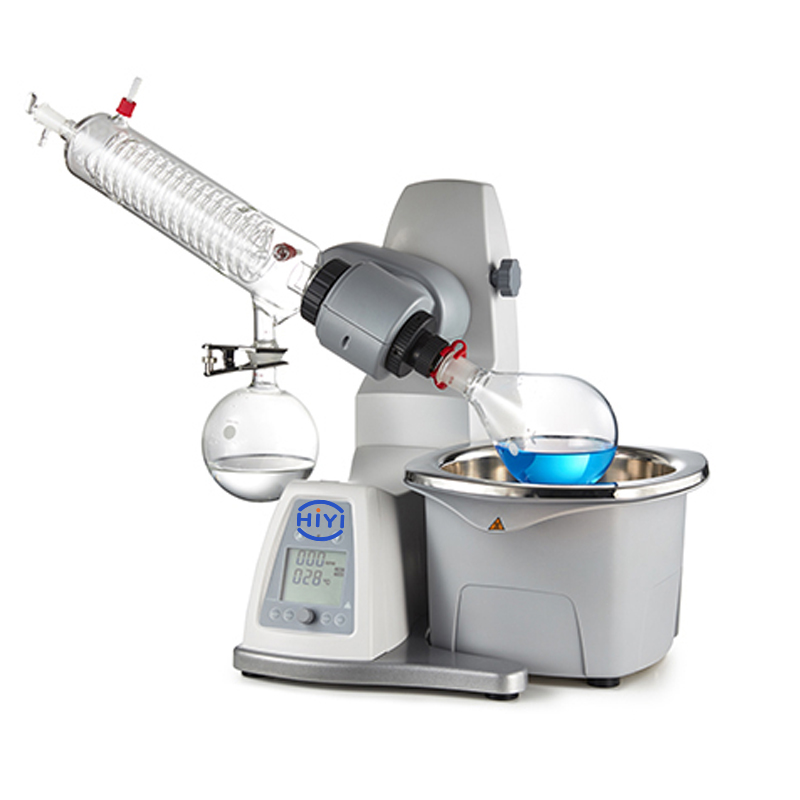

Key Features
• Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through a switch.
• Overheating protection temperature at 220°C
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Patented condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission
| Specifications | RE100-Pro |
| Motor Type | Brushless DC motor |
| Speed Range | 20-280rpm |
| Display | LCD(speed,temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1300W |
| Stroke Displacement | automatic 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Dimension[D×W×H] | 465×457×583mm |
| Weight | 15kg |
| Permissible Ambient Temperature | 5-40℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| Weight | 2.8kg |
| Protection class | IP21 |
| USB Interface | Yes |
| Voltage/Frequency | 100-120/200-240V 50/60 Hz |
| Power | 1400 W |
