Features:

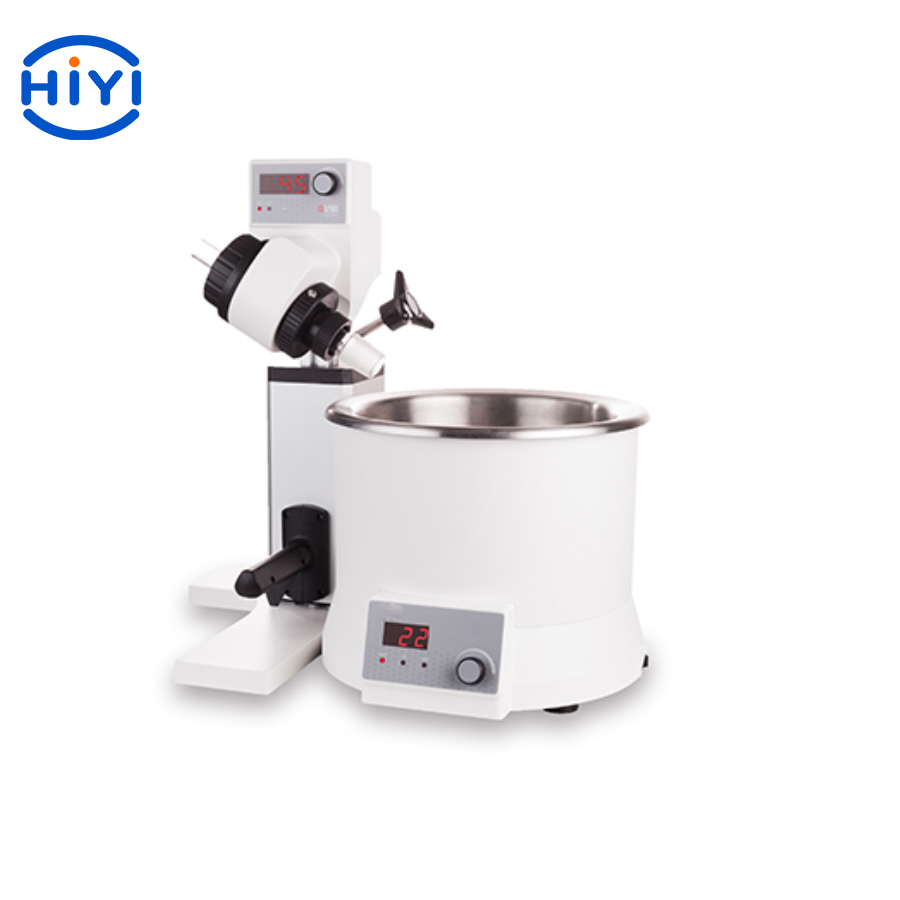

• 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately. Water/oil heating mode can be changed only through a switch.
• Manual lift combined with auxiliary lift for precise positioning of the glassware.
• PID control ensures high temperature accuracy at ±1C (water).
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.

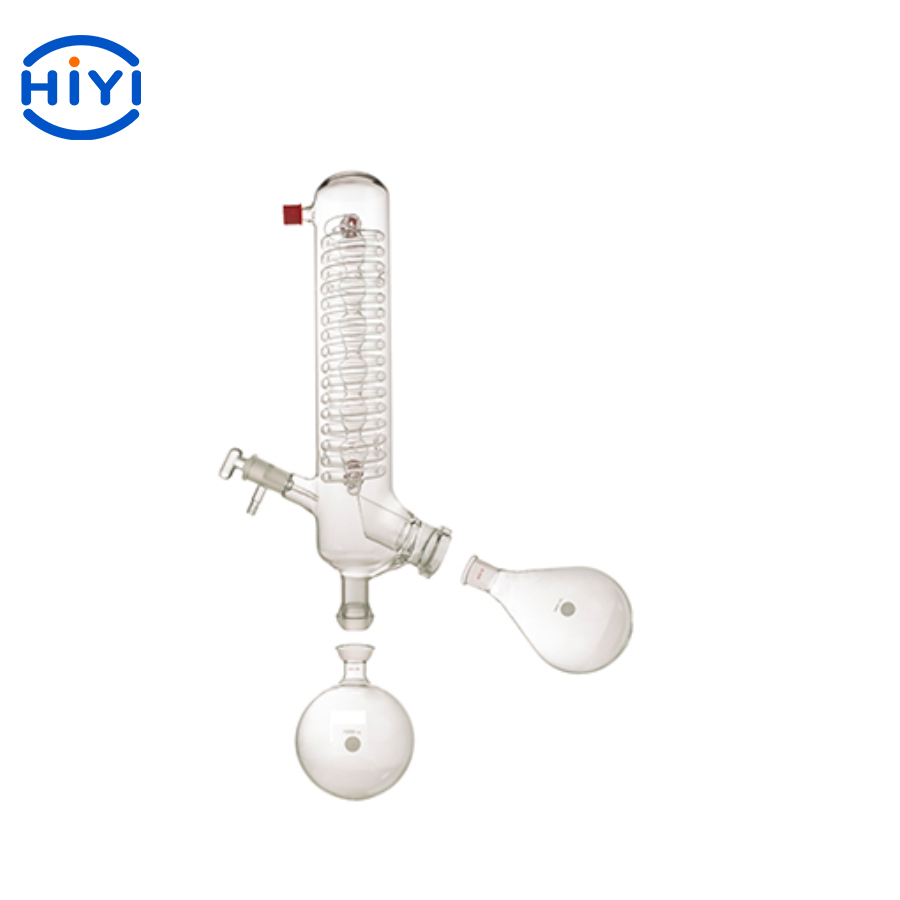

• Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
• Ejection mechanism ensures easy exchange of evaporating flask
• Adjustable immersion angle
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission.
• Compatible with the entire range of RE100-Pro glassware.
| Specifications | RE100-S |
| Motor Type | Brushless DC motor |
| Speed Range | 20-200rpm |
| Display | LED (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1010 W |
| Stroke Displacement | Manual 110mm + auxiliary100mm |
| Interval Time Setting Range | 1~999s |
| Dimension [D×W×H] | Main Unit: 440×320×450mm Heating Bath: 300x300x240mm |
| Weight | Main Unit: 7kg Heating Bath: 3kg |
| Permissible Ambient Temperature | 5~40 ℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100~120/200~240V 50/60 Hz |
| Power | 1100 W |
