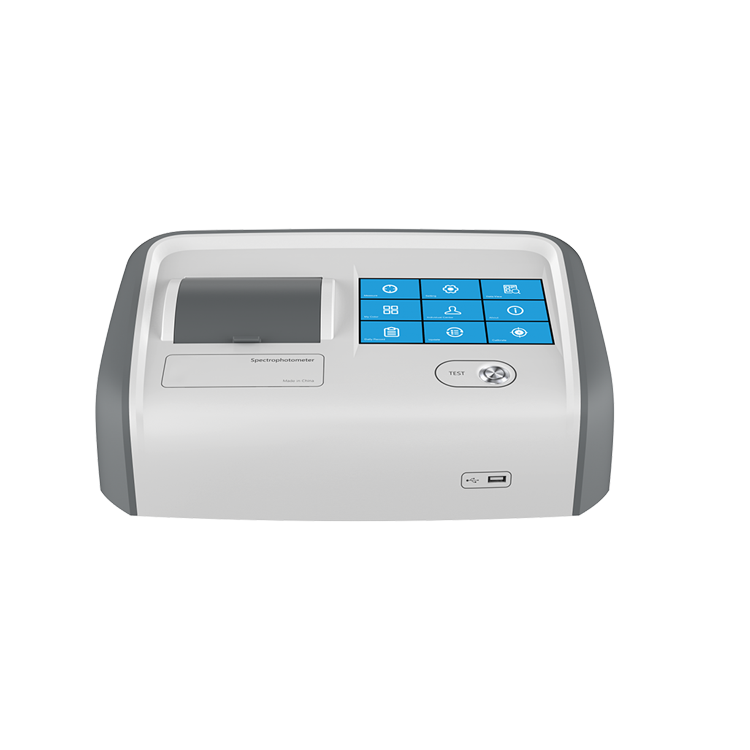

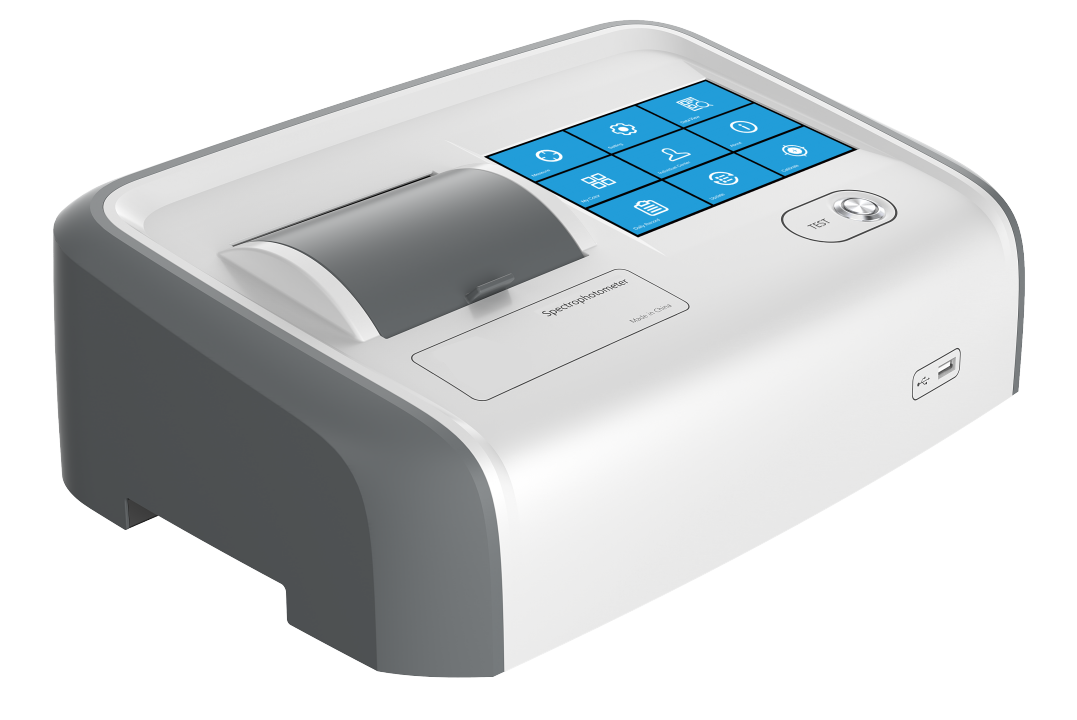

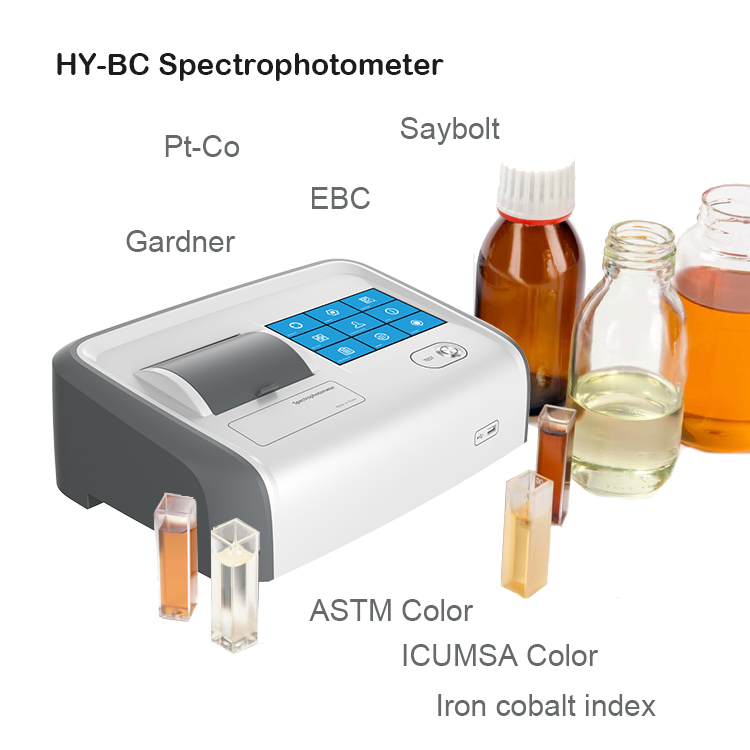

HY-BC Spectrometer

Measurement condition

d/0（standards：CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、JIS Z8722 Condition c、GB/T 3555、ASTM D156、GB/T 6540、ASTM D1500、ASTM D1209、ASTM D5386、ASTM D6045、ASTM D6166、ASTM D1502）

Stand-alone operation

Support

Integrating sphere

Φ40mm，Avian-D Fully diffuse surface coating

Lighting source

CLEDs(Full band balanced Led light source）

Inductor

Dual optical sensor array sensor

Wavelength range

360-780nm

Wavelength interval

10nm

Half-band width

5nm

Measuring range

0~200%

Resolution

0.0001

Observer Angle

2°/10°

Observation light source

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4

Display

Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report

Measuring time

≤1.5s

Measuring optical path

Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette)

Color space

CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity, Hunter Lab Munsell，MI,CMYK

Color difference formula

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*02

Other indicators

Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia)，WI(ASTM E313-20，ASTM E313-73，CIE,ISO2470/R457，Hunter，Taube Berger Stensby)，YI(ASTM D1925，ASTM E313-20，ASTM E313-73)，Tint(ASTM E313-20)，Allochromic index Milm，APHA，Hazen,Pt-Co（Platinum-cobalt index），Gardner（Gardner index），Iron cobalt index，Saybolt（Seibert index），ASTM Color，EBC（Beer color），ICUMSA Color(Sugar chroma)

Repeatability*

Transmittance: standard deviation ≤0.08%

Chroma value: ΔE*ab≤0.01 standard deviation, maximum ≤0.03

Inter instrument agreement

ΔE*ab ＜ 0.2

Heating function

Yes

Heating temperature range

From ambient temperature to 90℃

Audit trail

Yes (as required by FDA and CFDA)

Special function

Intelligent zero calibration

Screen size

7 inch touch screen

Store data

Over 100,000 pieces of data

Software support

ColorExpert，Color QC2
